Product supplierMid-Back Leather Executive Swivel Chair FG-1788B, Leather-look upholstered face with padded two-tone front and darker side border
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

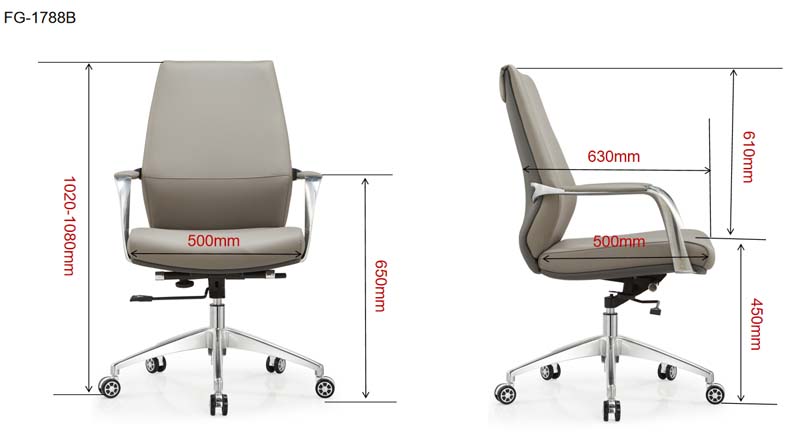

Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 630 × 630 × 1080 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 135 kg | |
|---|---|---|
| Chair net weight | 17 kg | |
| Recommended daily occupancy cycle | 8 hours per user per day | |
| Seat height lift interval | 60 mm | |
| Back tilt travel | 12 degrees | |
| Static vertical seat proof load target | 1020 kgf | |
| Caster rolling durability target | 100000 cycles | |
| Gas-lift cyclic durability target | 100000 height-adjustment cycles | |
| Color options for project procurement | 4 upholstery colors | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Leather-look upholstered face with padded two-tone front and darker side border | |
|---|---|---|
| Seat cushion | 80 mm molded high-resilience foam over a rigid load-bearing seat board | |
| Back cushion | 60 mm contoured foam panel bonded to a shaped back shell | |
| Arm supports | Polished die-cast aluminum frames with upholstered or padded top contact surfaces | |
| Five-star base | Polished aluminum five-star base with five outward-canted legs and caster sockets | |
| Gas lift and mechanism | Chrome-plated steel gas column connected to a black steel tilt mechanism with side levers |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat height adjustment | Pneumatic gas lift operated by the visible underside lever with 60 mm effective travel | |
|---|---|---|
| Swivel function | 360-degree seat rotation around the central gas column for workstation access | |
| Tilt and lock function | Conventional multi-position tilt mechanism with a 12-degree rearward recline range and lever-activated lock | |
| Mobility function | Five dual-wheel casters provide rolling mobility and swiveling movement on office floors |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive and private office use | Suited to managers and professional staff requiring a polished mid-back chair for desk, computer, and meeting tasks | |
|---|---|---|
| Conference and workstation application | Suitable for conference rooms, reception offices, and open-plan work points with hard or carpeted floors |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 applicability | Office chair dimensional safety and ergonomic test framework for seated work use | |
|---|---|---|
| EN 1335-2 applicability | Safety, stability, and structural performance requirements for an office work chair | |
| EN 1335-3 applicability | Chair strength, durability, and caster-related test methods for procurement verification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 applicability | Applicable standards and test results require confirmation | |
|---|---|---|
| BIFMA e3 level applicability | Furniture sustainability attributes for material disclosure and low-emission procurement programs |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 applicability | Furniture strength and durability test method for chair seat and back loading | |
|---|---|---|
| GB/T 28202 applicability | General safety requirements applicable to upholstered and metal office seating materials |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3 applicability: Furniture strength and durability test method for chair seat and back loading; 2. GB/T 28202 applicability: General safety requirements applicable to upholstered and metal office seating materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
