Upholstered Visitor Chair with Chrome Cantilever Base (model VC-CAN-660640-1000) is listed under Executive Boss Chair. Dimensions: 660 × 640 × 1000 mm. Materials: Beige upholstered padded seat, likely leather, synthetic leather or fabric; exact surface material requires supplier BOM confirmation. Load capacity: 160 kg. Product Features: upholstered,visitor,chair,cantilever,sled,base,fixed,armrests,padded,back. This page consolidates 6 groups of specifications, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | FENGGUAN | Model | VC-CAN-660640-1000 |

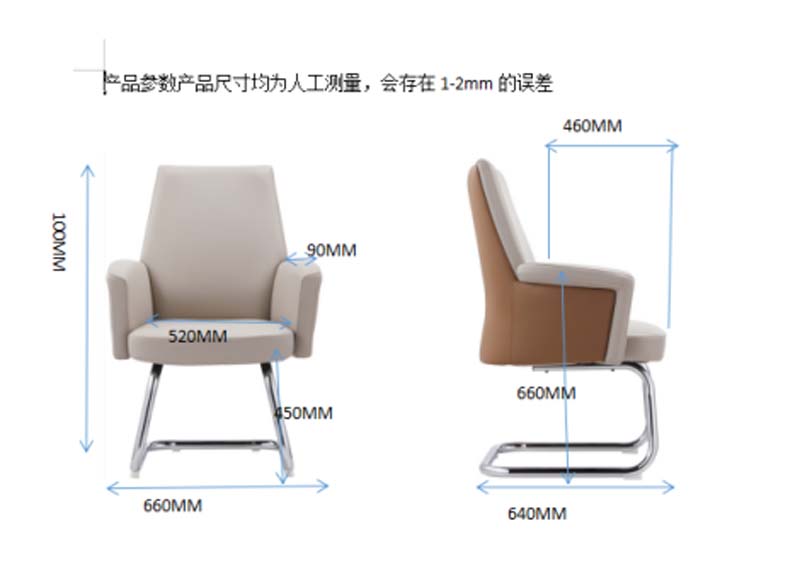

| Overall dimensions (W × D × H) | 660 × 640 × 1000 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Net weight | 15 kg |
| Rated static load capacity | 160 kg | Recommended user body weight | 120 kg |
| Seating capacity | 1 person | Back static load test target | 76 kg |
| Seat impact durability target | 100,000 cycles | Cushion compression set acceptance | Less than 8 percent after 72 hours |
| Frame oscillation allowance | Less than 8 mm lateral movement at top of back | Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
| Back Foam Density Reference | 38 kg/m³ | Seat upholstery | Beige upholstered padded seat, likely leather, synthetic leather or fabric; exact surface material requires supplier BOM confirmation |
| Backrest upholstery | Padded upholstered back with light front face and tan outer shell/back panel | Armrest construction | Fixed padded arm pads integrated with upholstered side panels and 90 mm visible thickness |
| Internal cushioning | Molded polyurethane foam over a load-bearing seat board; 80 mm seat and 90 mm back thickness used as procurement assumptions | Support frame | Polished chrome-plated welded steel cantilever frame with two continuous sled runners |
| Floor protection | Hard plastic or rubber end glides fitted to each sled runner to protect flooring | Seating mechanism | Fixed non-swivel, non-reclining cantilever chair providing direct visitor seating with no user controls |
| Back support | Continuous padded medium-high back set at a fixed reception-chair angle for upright meeting posture | Arm support | Integrated fixed armrests at 660 mm floor height for forearm support during meetings and waiting areas |
| Base movement | Cantilever sled base allows slight controlled flex while all four runner ends remain floor-contacting | Carton count | 1 carton per chair |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Carton Dimensions | 850× 420× 720 mm | Reference Packaged Gross Weight | 23 kg/set |
| Reference Carton Volume | 0.26 m³/set | Reception and meeting use | Suited to visitor areas, conference rooms and executive meeting spaces because it provides fixed upright support, integrated arms and a formal upholstered appearance |
| Workstation visitor placement | Can be placed in front of desks or in open-office waiting zones where a non-caster, quiet sled-base chair is preferred | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 660 × 640 × 1000 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 15 kg | |
|---|---|---|
| Rated static load capacity | 160 kg | |
| Recommended user body weight | 120 kg | |
| Seating capacity | 1 person | |
| Back static load test target | 76 kg | |
| Seat impact durability target | 100,000 cycles | |
| Cushion compression set acceptance | Less than 8 percent after 72 hours | |
| Frame oscillation allowance | Less than 8 mm lateral movement at top of back | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Beige upholstered padded seat, likely leather, synthetic leather or fabric; exact surface material requires supplier BOM confirmation | |
|---|---|---|
| Backrest upholstery | Padded upholstered back with light front face and tan outer shell/back panel | |
| Armrest construction | Fixed padded arm pads integrated with upholstered side panels and 90 mm visible thickness | |
| Internal cushioning | Molded polyurethane foam over a load-bearing seat board; 80 mm seat and 90 mm back thickness used as procurement assumptions | |
| Support frame | Polished chrome-plated welded steel cantilever frame with two continuous sled runners | |
| Floor protection | Hard plastic or rubber end glides fitted to each sled runner to protect flooring |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating mechanism | Fixed non-swivel, non-reclining cantilever chair providing direct visitor seating with no user controls | |
|---|---|---|
| Back support | Continuous padded medium-high back set at a fixed reception-chair angle for upright meeting posture | |
| Arm support | Integrated fixed armrests at 660 mm floor height for forearm support during meetings and waiting areas | |
| Base movement | Cantilever sled base allows slight controlled flex while all four runner ends remain floor-contacting |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 1 carton per chair | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Reception and meeting use | Suited to visitor areas, conference rooms and executive meeting spaces because it provides fixed upright support, integrated arms and a formal upholstered appearance | |
|---|---|---|
| Workstation visitor placement | Can be placed in front of desks or in open-office waiting zones where a non-caster, quiet sled-base chair is preferred |
