PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

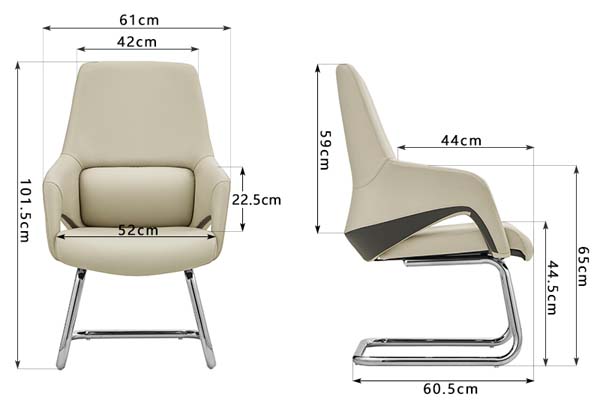

Overall dimensions (W × D × H)	610 × 605 × 1015 mm
Seat width	520 mm
Seat depth	440 mm
Seat height (floor to seat top)	445 mm
Backrest height (from seat surface)	590 mm
Built-in lumbar cushion height	225 mm
Armrest inner clearance width	420 mm
Overall base footprint depth	605 mm
Seat front edge to backrest front distance	440 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	17 kg
Maximum static user load capacity	136 kg
Cushion foam density	45 kg/m³
Cushion foam rebound rate	45%
Seat foam thickness	80 mm
Backrest foam thickness	60 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	1.2mm thick beige PU leather
Rear backrest accent panel	Dark charcoal PU leather
Integrated armrests	Curved padded PU leather over steel arm frame
Internal back frame	1.5mm thick welded steel inner frame
Seat inner support	12mm thick molded plywood panel
Cantilever sled base	2.0mm thick chrome-plated steel tube frame
Floor contact glides	Injection-molded black nylon non-scuff glides
Seat and back padding	High-resilience molded polyurethane foam
Stitching construction	Reinforced bonded nylon thread with 8mm seam pitch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cantilever flex support	Sled frame provides controlled 5° gentle flex for seated comfort
Integrated lumbar support	Fixed padded lumbar cushion positioned 225mm above seat for lower back support
Fixed integrated armrests	220mm armrest height above seat, matching upholstered curved design
Floor protection	Non-marking nylon glides prevent surface scratching on hard floors
Fixed upright seating position	100° backrest angle optimized for formal meeting and visitor use
Cleaning and maintenance	Smooth PU leather surface allows wipe-clean maintenance for high-traffic areas
Knock-down assembly	Frame attaches to seat/back assembly with included hardware for flat-pack shipping
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Formal upright design suitable for boardrooms and team meeting spaces
Reception and visitor areas	Polished modern aesthetic for guest seating in office lobbies and reception zones
Executive office guest seating	Sized for placement across from executive desks for visitor use
Training room seating	Durable construction supports frequent daily use in corporate training facilities
Waiting area seating	Stackable-compatible sled base design for flexible arrangement in public waiting spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-2:2018	Applicable for office chair safety, strength and durability performance requirements
EN 1022:2018	Applicable for furniture seating stability testing for non-domestic use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applicable for general-purpose office chair performance and durability test methods

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 20210-2006	Applicable for fire safety requirements for upholstered office seating components

Standardized tender description text

This product must meet the following technical requirements:
1. GB 20210-2006: Applicable for fire safety requirements for upholstered office seating components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CVC-SLED-BG01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CVC-SLED-BG01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CVC-SLED-BG01Open Export Tool

Quick Actions

Post an RFQ

Product Description

The CVC-SLED-BG01 is an unbranded cantilever office meeting and visitor chair designed to balance polished modern aesthetics, durable construction, and consistent comfort for high-use public and professional spaces. Visually, the chair features a streamlined, upright silhouette finished in soft beige PU leather, with a contrasting dark charcoal PU leather accent panel on the rear of the backrest for subtle visual depth. Its fixed cantilever form incorporates smoothly curved, integrated upholstered armrests that align seamlessly with the seat and back lines, anchored by a sleek chrome-plated sled base that lends an open, uncluttered profile suited to contemporary interiors. Overall dimensions measure 610 x 605 x 1015 mm, with a 520 mm wide seat, 440 mm deep seat, 445 mm seat height, 590 mm tall backrest measured from the seat surface, and 420 mm inner armrest clearance to accommodate a wide range of users, anchored by a 605 mm deep base footprint for stable placement. The chair is built for long-term, high-traffic use, starting with a 2.0 mm thick chrome-plated steel tube sled frame paired with a 1.5 mm thick welded steel inner back frame and 12 mm thick molded plywood seat support. Upholstery uses 1.2 mm thick beige PU leather for the seat and armrests, with high-resilience molded polyurethane foam padding: 80 mm thick seat foam at 45 kg/m³ density with 65% rebound rate, and 60 mm thick back foam for even pressure distribution. Seams are constructed with reinforced bonded nylon thread at an 8 mm seam pitch for lasting structural integrity. The base is fitted with injection-molded black nylon non-scuff glides to prevent surface damage to hard flooring. Functional design elements are tailored to formal, frequent-use settings: the sled frame delivers a controlled 5° gentle flex to soften seated support without compromising upright posture, with a fixed 100° backrest angle optimized for attentive meeting and visitor interactions. A fixed padded lumbar cushion sits 225 mm above the seat surface to deliver consistent lower back support, while integrated armrests sit 220 mm above the seat to offer relaxed upper body support. The smooth PU leather surface enables quick wipe-clean maintenance to uphold a neat appearance in high-turnover areas, and the sled base supports flexible, reconfigurable arrangement for varied space needs. This chair is suitable for a wide range of professional public spaces, including formal boardrooms and team meeting rooms, office lobbies and reception visitor zones, guest seating positions opposite 2.4 m executive desks, corporate training facilities with regular daily use, and public waiting areas requiring flexible layout adjustments. Procurement teams should note the chair ships as a knock-down flat-pack unit across two cartons per set, with packaged gross weight of 23 kg per set and 0.26 m³ total carton volume, enabling 135 sets to load in a 20GP container at 85% space utilization. Assembly requires 40 minutes per set with all included hardware. The chair supports a maximum static user load capacity of 136 kg, with a net product weight of 17 kg for durable, stable placement without unnecessary bulk.

Beige Upholstered Cantilever Meeting Chair with Integrated Armrests and Chrome Sled Base Specifications
