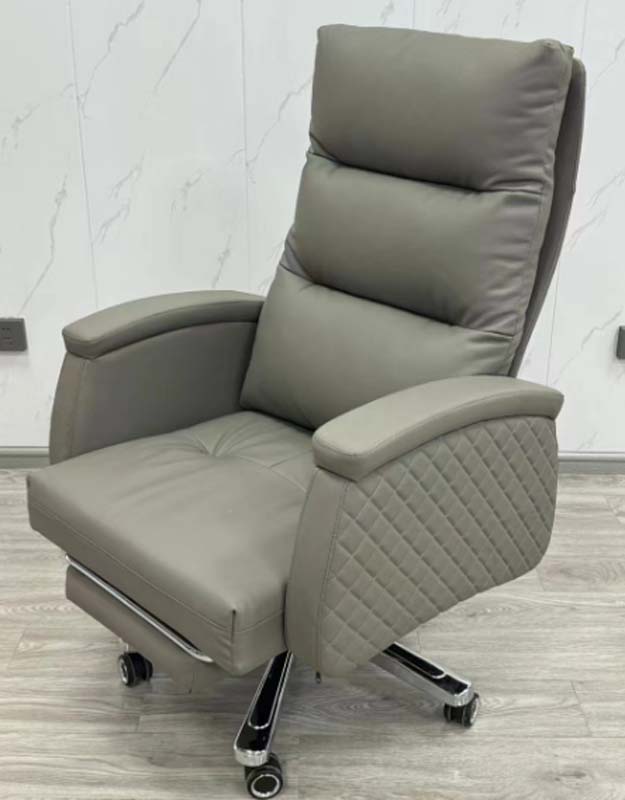

Product supplierTall Back Executive Office Recliner Chair with Diamond Stitch Armrests and Pull-Out Footrest, Smooth grey faux leather (PU)
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 820 × 1210 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight of assembled chair | 27 kg | |
|---|---|---|
| Maximum recommended user weight | 150 kg | |
| Gas lift height adjustment stroke | 100 mm | |
| Seat cushion foam density | 45 kg/m³ | |
| Backrest foam density | 35 kg/m³ | |
| Static load rating for five-star base | 1130 kg | |
| Recline mechanism cycle life | 25000 cycles | |
| Caster rolling durability | 40000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery contact surfaces | Smooth grey faux leather (PU) | |
|---|---|---|
| Outer armrest side panels | Quilted diamond-stitch grey faux leather | |
| Seat and backrest padding | High-resilience polyurethane foam | |
| Headrest section | Integrated padded faux leather cushion | |
| Five-star base legs | Chrome-plated polished steel with black inset trim | |
| Caster wheels | Black polyurethane roller with chrome accent ring | |
| Gas lift cylinder | Steel construction, chrome outer finish | |
| Recliner mechanism chassis | 3 mm thick stamped steel | |
| Retractable footrest frame | Chrome-plated steel support bar | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| 360-degree swivel function | Full rotation around central gas lift axis with no directional lock | |
|---|---|---|
| Seat height adjustment | Pneumatic lift adjustment via control lever under seat, 100 mm travel | |
| Backrest recline function | Infinite-position recline up to 135 degrees from upright, with tension control | |
| Retractable footrest | Slide-out padded footrest under seat front, locks in extended position | |
| Fixed padded armrests | Stationary curved armrests upholstered to match seat, no height adjustment | |
| Smooth rolling casters | Dual-wheel casters suitable for hard wood and tile floors | |
| Lumbar support | Built-in padded lumbar zone in middle backrest section | |
| Maximum reclined backrest angle from vertical | 135 degrees | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Fits premium management offices for extended seated work sessions | |
|---|---|---|
| Home office workspace | Suitable for home users seeking comfort for long work and reading sessions | |
| Conference meeting rooms (high-status) | Can be used for boardroom seating for senior meeting participants | |
| Managerial workstations | Appropriate for mid-to-senior level staff requiring ergonomic support | |
| Recommended pairing | Works with 760 mm height standard executive desks | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
