Product supplierBlack Padded Executive Swivel Office Chair, Black leather-look upholstery with horizontal segmented stitching and soft padded panels
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

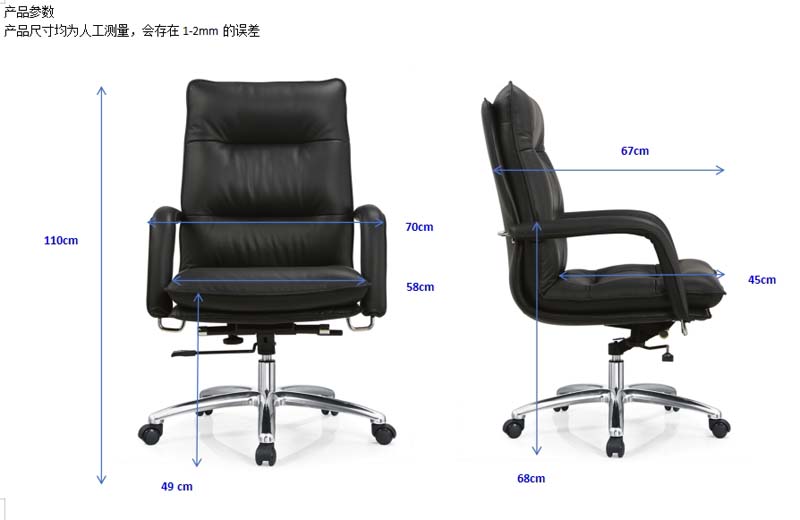

Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 700 × 670 × 1100 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight | 18 kg | |
| Seat foam density | 45 kg/m3 | |
| Back foam density | 35 kg/m3 | |
| Foam rebound rating | 40% | |
| Seat static-load verification target | 1020 kg | |
| Base static-load verification target | 1136 kg | |
| Caster rolling durability | 100000 cycles | |
| Gas-lift cyclic durability | 100000 height-adjustment cycles | |
| Recommended user height range | 1900 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Black leather-look upholstery with horizontal segmented stitching and soft padded panels | |
|---|---|---|
| Seat cushion construction | 100 mm molded polyurethane foam over a load-bearing seat board | |
| Back cushion construction | 120 mm layered padded back with lumbar-friendly horizontal channels | |
| Armrests | Padded black arm pads mounted on a curved black support frame connected under the seat | |
| Gas lift and center column | Polished chrome-plated steel telescopic gas-lift column | |
| Five-star base | Polished chrome-plated steel five-star caster base |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height lift operated by the right-side lever, with a 100 mm specified procurement stroke and 490 mm shown mid-position. | |
|---|---|---|
| Swivel function | 360-degree full rotation around the gas-lift center on the five-star caster base. | |
| Recline function | Center-tilt mechanism allows back-and-seat synchronized recline to a 15-degree procurement target with tension control. | |
| Tilt lock | Under-seat lever locks the recline mechanism in the upright position; multi-position locking must be verified against the production mechanism. |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 1 flat-packed carton | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Recommended Matching Desk Size | 2.4 m executive desk | |
|---|---|---|
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 office chair dimensions | Use to verify seat-height range, clearance and dimensional suitability for office users. | |
|---|---|---|
| EN 1335-2 safety requirements | Use as the structural safety acceptance reference, including stability and strength testing. | |
| EN 1335-3 test methods | Use for laboratory verification of strength, durability and safety performance before bulk purchase. |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 office chairs | Use for back, seat, base, arm, caster and stability acceptance tests; no certification is visible in the image. |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 furniture mechanical test | Applicable standards and test results require confirmation | |
|---|---|---|
| GB/T 3324 general technical furniture requirement | Use as the Chinese furniture quality and dimensional-tolerance acceptance reference for this office chair. |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3 furniture mechanical test: Applicable standards and test results require confirmation; 2. GB/T 3324 general technical furniture requirement: Use as the Chinese furniture quality and dimensional-tolerance acceptance reference for this office chair.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
