PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

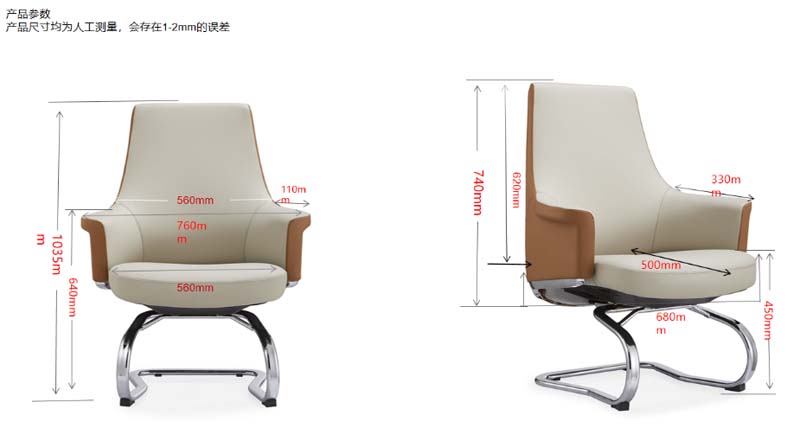

Overall dimensions (W × D × H)	760 × 680 × 1035 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	160 kg
Static seat proof load	545 kg
Backrest cyclic test target	120,000 cycles
Seat-front fatigue target	100,000 cycles
Net weight	17.5 kg
Seat width per occupant	560 mm
Floor contact points	4 glides
Colorway count	2 visible colors
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Light beige padded upholstered surface over a contoured seat and high back
Armrest upholstery	Cognac-brown padded arm panels integrated with the seat-back shell
Cushion comfort layer	80 mm molded polyurethane seat pad with 60 mm lumbar back padding
Internal support shell	12 mm molded plywood or reinforced polymer seat-back carrier
Cantilever frame	25 mm outside-diameter chrome-plated steel tube with 1.5 mm wall thickness
Frame finish	Polished chrome plating over bent and welded steel tubing

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cantilever rocking movement	The continuous steel sled flexes rearward under load and returns without a separate tilt lock
Seating access	Open-front sled frame gives 680 mm under-seat depth and permits approach from either side
Floor protection	Four replaceable polymer glides distribute load and reduce scratching on hard floors
Fixed installation	The chair is delivered ready for use and does not require floor anchoring for normal visitor seating

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive reception and meeting spaces	Use in visitor offices, boardrooms, and reception areas where a high-back formal chair supports 450 mm desk-level seating
Consultation and lounge-adjacent work areas	Place across a desk or meeting table for guests requiring upright back support and fixed, low-maintenance mobility

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · VC-CB-760-560

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · VC-CB-760-560

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · VC-CB-760-560Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Two-Tone Upholstered Visitor Chair with Cantilever Base, model VC-CB-760presents a polished seating solution for professional guest environments. Its light beige padded seat and high back are paired with cognac-brown padded arm panels, creating a formal two-tone appearance suited to reception, executive, and meeting settings. Integrated armrests connect visually and structurally with the seat-back form, while the continuous chrome sled base gives the chair a clean, open silhouette. The clear width between armrests is 540 mm, with seat width per occupant at 560 mm. The chair is built around a contoured seat and high back with padded faux leather or leather-match upholstery. The comfort layer uses an 80 mm molded polyurethane seat pad and 60 mm lumbar back padding; finished cushion thickness is 90 mm at the seat and 70 mm at the backrest, with a 240 mm lumbar support zone. Beneath the upholstery is a 12 mm molded plywood or reinforced polymer seat-back carrier. The cantilever structure is formed from bent and welded 25 mm outside-diameter steel tube with 1.5 mm wall thickness, finished in polished chrome plating. Four replaceable polymer glides form the floor contact points. Functionally, the sled frame flexes rearward under load and returns to position without a separate tilt lock, providing controlled cantilever movement rather than a conventional recline mechanism. The open-front frame offers 680 mm of under-seat depth and allows approach from either side, making the chair convenient for visitors moving around desks or meeting tables. The glides help distribute load and reduce scratching on hard floors, and the chair does not require floor anchoring for normal visitor seating. It is rated for a recommended user weight of 160 kg, with a static seat proof load of 545 kg. Durability targets include 120,000 backrest cycles and 100,000 seat-front fatigue cycles. The chair weighs 17.5 kg net. This model is appropriate for visitor offices, boardrooms, reception areas, consultation rooms, and lounge-adjacent work spaces where upright back support and a refined, low-maintenance aesthetic are required. Its high-back design supports desk-level seating at 450 mm. Procurement teams should note that the unbranded chair ships as one set across two cartons, with packaged gross weight of 23 kg and carton volume of 0.26 m³ per set. Reference assembly time is 40 minutes per set, and the indicative 20GP loading figure is 135 sets at 85 percent space utilization. These details should be reviewed against delivery access, storage space, installation planning, and the intended frequency of guest use.

Two-Tone Upholstered Visitor Chair with Cantilever Base Specifications
