OC-MB-014

Code：XFNG8TV1
Request supplier quotes

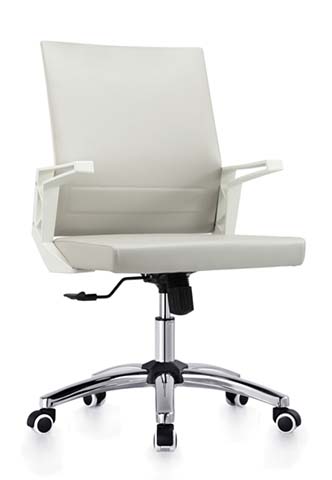

Modern Mid-Back Upholstered Executive Office Chair with Chrome Base Key Specifications 2026-08-02 12:04

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OC-MB-014

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions (W x D x H)650 x 620 x 1080 mm
Seat width500 mm
Seat depth480 mm
Seat height (adjustable range maximum)520 mm
Backrest height600 mm
Backrest width490 mm
Armrest height above seat210 mm
Armrest width (pad surface)60 mm
5-star base diameter700 mm
Caster wheel diameter60 mm
Armrest pad top surface width60 mm
Armrest overall length (front to back)260 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Recommended maximum user weight120 kg
Net weight reference upper value18 kg
Gas lift static load reference (upper)1000 kg
Caster rolling durability reference (upper)100000 cycles
Foam compression set reference (upper limit)10%
Gas lift static load rating1000 kg
Foam compression set limit10%
Upholstery abrasion resistance40000 cycles
Seat foam density45 kg/m³
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and backrest upholsteryLight off-white faux leather (PVC/PU blend) face with smooth finish
Seat cushion core foamHigh-density polyurethane foam, 60 mm thick at center
Backrest internal framePlywood or plastic structural shell with foam padding layer
Armrest structureLight-toned polypropylene or painted metal frame with matching upholstered pad top
5-star baseChrome-plated steel tubular frame, polished finish
Gas lift columnChrome-plated steel pneumatic cylinder with black plastic housing
Tilt mechanismBlack powder-coated steel plate mechanism under seat
CastersBlack thermoplastic rubber wheels with chrome or plastic fork housing
Control leverBlack plastic or painted steel height-adjustment lever
Backrest internal support framePlywood structural shell with layered foam padding overlay
Height adjustment control leverBlack powder-coated steel lever extending from left side of the tilt mechanism
Base center hubBlack nylon plastic hub connecting gas lift to 5-star base legs
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic gas-lift adjustment operated by left-side lever, total vertical stroke 100 mm
Swivel function360-degree continuous rotation around central gas lift column
Back tilt / rocker functionSeat-back synchronized or single-axis tilt with tension control, maximum recline angle 12 degrees
Tilt lock functionLockable tilt mechanism securing upright or selected recline position via lever or knob
Mobility function5 dual-wheel casters for rolling on carpet and hard office floors
Armrest configurationFixed-height upholstered armrests integrated with side frame structure
360-degree swivel functionContinuous 360-degree rotation around the central gas lift column
Tilt position lockLockable tilt mechanism securing the upright position via the left-side control lever
Rolling mobility5 dual-wheel casters enabling rolling movement on carpet and hard office floors
Fixed armrest supportFixed-height upholstered armrests rigidly integrated with the seat side frame structure
Tilt tension adjustmentRotary tension knob under seat adjusts tilt resistance to match user body weight
Recline Angle / Lock Reference125° with 3 suggested lock positions
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packing configuration1 chair per carton, flat-pack knockdown with seat-back and base components separated
Carton dimensions (L x W x H)800 x 650 x 350 mm
Gross weight per carton21 kg
Carton volume (CBM)0.182 m³
Assembly time (single person, upper)30 minutes
20ft container loading quantity (upper reference)260 units
Carton volume0.182 m³
Single-person assembly time30 minutes
20ft standard container loading quantity260 units
Reference Package Count1 set / 2 cartons
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive and managerial officesSuitable for private office workstations requiring professional appearance and adjustable ergonomic support
Conference and meeting roomsSuitable for conference table seating where swivel mobility and moderate tilt support are needed
Open-plan workstationsSuitable for standard desk heights 760 mm with adjustable seat height range
Co-working and reception zonesSuitable for visitor or short-stay work seating with a clean modern silhouette
Home office environmentsSuitable for residential home offices with both carpet and hard flooring
Executive and managerial private officesSuitable for private executive workstations requiring a professional appearance and adjustable ergonomic support
Co-working and reception visitor zonesSuitable for visitor or short-stay work seating with a clean modern silhouette that blends with varied interior styles
Design studio and creative workspacesSuitable for creative work environments requiring both aesthetic coordination and basic ergonomic function
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Applicable for office chair dimensional and functional requirements for general office use; suggested as EU market procurement reference
EN 1335-2:2009+A1:2017Applicable for office chair safety, strength, and durability test methods; recommended for supplier performance validation
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017Applicable standard for office chairs general safety, durability, and structural performance testing; suggested as North American market acceptance reference
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 36607-2018Applicable as office chair general technical requirement for dimensions, stability, and mechanical strength testing; suggested for incoming inspection
GB 28007-2011Reference standard for children's furniture does not apply; GB/T 36607 is the primary adult office chair specification standard
GB/T 10357.2-2013Applicable for furniture seat and back fatigue strength test methods; suggested for durability validation
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 36607-2018: Applicable as office chair general technical requirement for dimensions, stability, and mechanical strength testing; suggested for incoming inspection;
2. GB 28007-2011: Reference standard for children's furniture does not apply; GB/T 36607 is the primary adult office chair specification standard;
3. GB/T 10357.2-2013: Applicable for furniture seat and back fatigue strength test methods; suggested for durability validation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MB-014

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MB-014

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MB-014Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

GUOYOU OC-MB-014 is a modern mid-back upholstered executive office chr with a chrome base, presenting a sleek, professional silhouette suited for diverse work settings. Its light off-white faux leather upholstery with a smooth finish prs with a polished chrome 5-star base and fixed upholstered armrests, creating a clean, contemporary visual that balances refinement and practicality. The mid-back structure aligns with standard executive chr proportions, with the backrest offering targeted support while mntning a compact profile that works in spaces of varying sizes. Constructed with a focus on durability and comfort, the chr features a PVC/PU blend faux leather cover over high-density polyurethane foam cushioning in both the seat and backrest. Its internal backrest frame uses a structural shell with layered foam padding, while the 5-star base is built from chrome-plated steel tubing for stable support. A chrome-plated steel pneumatic gas lift column connects the seat to the base, with a black powder-coated steel tilt mechanism mounted under the seat. The fixed armrests have a light-toned frame with matching upholstered pads, and the base is fitted with five dual-wheel casters with thermoplastic rubber wheels. Functionally, the chr supports pneumatic seat height adjustment via a left-side control lever, 360-degree continuous swivel rotation, and back tilt with tension adjustment and lockable positions to suit user preferences. The rolling casters enable smooth movement across both carpet and hard office floors, while the fixed armrests provide consistent upper body support during extended seating periods. This chr is suitable for a wide range of commercial and residential spaces. It fits naturally in executive and managerial private offices, conference and meeting rooms, open-plan workstations with standard desk heights, co-working and reception visitor zones, design studios, and creative workspaces. For residential use, it works well in home offices with either carpet or hard flooring, thanks to its compact mid-back form and versatile mobility. For procurement, note that the chr ships as a flat-pack knockdown unit, with one chr per carton, and single-person assembly can be completed within 30 minutes using basic tools. The chrome base and light upholstery offer broad interior compatibility, making the model a flexible choice for bulk office furnishing projects or individual workspace upgrades.
