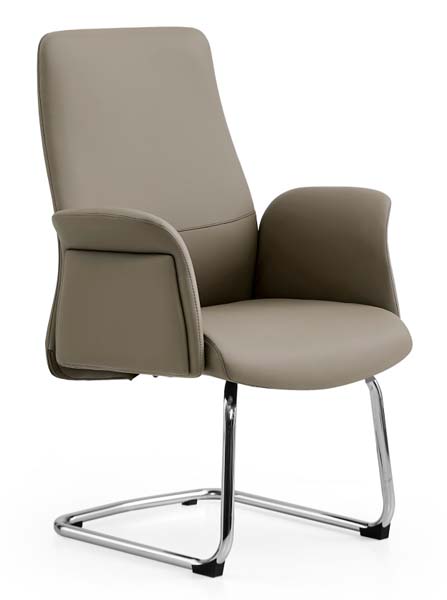

Product supplierFaux Leather Cantilever Conference Office Chair, 1.2mm thick taupe PU faux leather
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 640 × 630 × 990 mm | |
|---|---|---|
| Seat height (top of cushion) | 450 mm | |
| Seat width (usable) | 490 mm | |
| Seat depth (usable) | 470 mm | |
| Seat cushion thickness | 80 mm | |
| Backrest height (top of seat to top of back) | 540 mm | |
| Backrest width | 480 mm | |
| Armrest height (top of seat to top of arm) | 200 mm | |
| Cantilever frame footprint | 560 x 590 mm | |
| Armrest pad width | 80 mm | |
| Seat front edge height | 440 mm | |
| Seat height (top of cushion at center) | 450 mm | |
| Seat usable width (between armrests) | 490 mm | |
| Seat usable depth (front edge to backrest face) | 470 mm | |
| Seat cushion thickness (center) | 80 mm | |
| Backrest width (narrowest lumbar zone) | 440 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 15.5kg | |
|---|---|---|
| Recommended static user load | 120 kg | |
| Cushion foam density | 45kg/m³ (seat), 35kg/m³ (backrest) | |
| Cantilever frame static load rating | 150 kg | |
| Floor glide compressive load | 75 kg per glide | |
| Expected upholstery seam durability | ≥50000 flex cycles | |
| Recommended maximum static user load | 120 kg | |
| Foam rebound rate | ≥40% | |
| Expected upholstery abrasion resistance | ≥50000 Martindale cycles | |
| Expected cantilever frame flex cycle life | ≥100000 rocking cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | 1.2mm thick taupe PU faux leather | |
|---|---|---|
| Backrest upholstery | Matching taupe PU faux leather with horizontal waist seam | |
| Seat cushion core | High-resilience molded polyurethane foam | |
| Backrest core | Contoured molded polyurethane foam | |
| Armrests | Integrated padded armrests upholstered in matching PU, supported by internal rigid frame | |
| Cantilever frame | 25mm diameter 1.5mm thick chrome-plated cold-rolled steel tube | |
| Floor glides | Black injection-molded nylon anti-slip glides (4 units) | |
| Internal support panel | 12mm thick curved plywood seat/back support plate | |
| Seam stitching | High-strength polyester thread with 8±1 stitches per inch | |
| Armrest upholstery | Matching taupe PU faux leather covering padded arm pads | |
| Armrest core | Rigid polypropylene inner support wrapped in 15mm thick polyurethane foam | |
| Seat Internal Support Board Thickness | 14mm bent plywood or equivalent support board |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Base function | Fixed cantilever sled base, no swivel or tilt mechanism | |
|---|---|---|
| Armrest function | Fixed integrated padded armrests, no height or width adjustment | |
| Lumbar support | Integrated contoured mid-back lumbar support, no adjustable mechanism | |
| Floor protection | 4 anti-slip nylon glides prevent scratching hard floors, no casters | |
| Ergonomic design | Waterfall seat front edge reduces pressure on back of thighs | |
| Stacking capability | Not designed for stacking | |
| Base mobility behavior | Fixed cantilever sled base with no swivel, tilt or caster movement | |
| Arm support function | Fixed integrated padded armrests with no height, width or angle adjustment | |
| Lumbar support function | Integrated contoured mid-back lumbar support with no adjustable mechanism | |
| Floor protection function | 4 anti-slip nylon glides prevent scratching hard tile, wood, marble and laminate floors | |
| Ergonomic pressure relief | Waterfall seat front edge with 10mm downward radius reduces pressure on popliteal region at back of thighs | |
| Storage compatibility | Not designed for nested stacking |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40minutes per set | |
| Reference Carton Dimensions | 850 × 420 × 720mm | |
| Reference Packaged Gross Weight | 23kg/set | |
| Reference Carton Volume | 0.26m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Conference room seating | Suitable for boardroom and meeting room placement, fixed height matches standard 720mm conference tables | |
|---|---|---|
| Visitor reception seating | Suitable for front office, reception and guest waiting areas, professional neutral taupe finish matches modern office decor | |
| Executive visitor seating | Suitable for placement in private executive offices for guest seating, mid-back support provides professional comfort for meetings up to 2 hours | |
| Training room fixed seating | Suitable for permanent training room layouts, durable cantilever frame withstands frequent daily use without adjustment mechanisms that can break | |
| Hard floor compatibility | Designed for tile, marble, wood and laminate hard floors, nylon glides prevent floor scratches; not recommended for thick pile carpet without glide replacement | |
| Front office visitor reception | Suitable for lobby, reception and guest waiting areas, neutral taupe finish coordinates with modern wood, metal and glass office interiors without clashing with branding schemes | |
| Executive office guest seating | Suitable for placement opposite executive desks for visitor seating, mid-back contoured support provides professional comfort for meetings up to 2 hours without adjustment mechanisms that appear informal | |
| Permanent training room seating | Suitable for fixed-layout training and seminar rooms, durable cantilever frame withstands frequent daily use with no adjustable tilt/swivel parts that are prone to damage in high-traffic environments |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-2:2018 | Applicable European standard for office chairs: safety requirements | |
|---|---|---|
| EN 1022:2018 | Applicable standard for domestic and contract seating stability | |
| EN 1728:2014 | Applicable standard for furniture seating test methods for strength and durability |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applicable standard for office chairs general purpose, specifies static/dynamic load and durability tests | |
|---|---|---|
| ANSI/BIFMA X5.4-2021 | Applicable standard for lounge and public seating, covers stability and durability for visitor/conference use |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 19995.1-2005 | Applicable standard for furniture environmental testing of volatile organic compounds for upholstered furniture | |
|---|---|---|
| GB/T 6739-2006 | Applicable standard for film hardness testing of chrome-plated metal frame finishes | |
| GB/T 3324-2017 | Applicable general technical standard for wooden and metal furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 19995.1-2005: Applicable standard for furniture environmental testing of volatile organic compounds for upholstered furniture; 2. GB/T 6739-2006: Applicable standard for film hardness testing of chrome-plated metal frame finishes; 3. GB/T 3324-2017: Applicable general technical standard for wooden and metal furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
