Automatic mm / inch conversion · Core engineering specifications

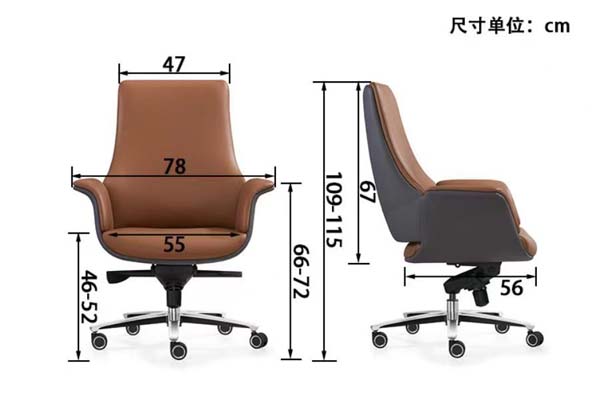

| Overall dimensions | 780 x 690 x 1150 mm | |
|---|---|---|
| Backrest top width | 470 mm | |
| Seat width | 550 mm | |
| Seat depth | 560 mm | |
| Backrest height above seat | 670 mm | |
| Minimum seat height | 460 mm | |
| Maximum seat height | 520 mm | |
| Minimum total chair height | 1090 mm | |
| Five-star base diameter | 690 mm | |
| Armrest height above seat | 200 mm | |
| Seat pan thickness | 80 mm | |
| Backrest padding thickness | 60 mm | |
| Caster diameter | 60 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Recommended user weight capacity | 181 kg | |
|---|---|---|
| Net product weight | 24 kg | |
| Gas lift adjustment cycle rating | 120000 cycles | |
| Caster rolling durability rating | 100000 cycles | |
| Five-star base static load rating | 1136 kg | |
| Seat foam density | 45 kg/m³ | |
| Foam rebound rate | 60% | |
| Upholstery abrasion resistance (Martindale) | 50000 rubs | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and inner back upholstery | Commercial-grade tan PU leather | |
|---|---|---|
| Outer back and arm shell | Dark gray rigid polymer composite | |
| Seat and back padding | High-density molded polyurethane foam | |
| Five-star base | Polished chrome-plated steel | |
| Gas lift column | Chrome-plated steel, Class 4 rated | |
| Tilt mechanism chassis | 3 mm thick powder-coated steel | |
| Dual-wheel casters | Polyurethane tread on nylon hub | |
| Armrest padding | Integral molded foam matching seat upholstery | |
| Internal support frame | 1.5 mm thick welded steel tube | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Five-star Base Material Thickness | Metal base wall 3.5 mm; diameter 700 mm |
Adjustment / rotation / tilt / mobility / storage features
| Seat height adjustment | Pneumatic gas lift, 60 mm vertical travel | |
|---|---|---|
| 360-degree swivel rotation | Full rotation enabled by central swivel joint | |
| Backrest tilt function | Swivel tilt with 15-degree maximum recline, lockable in upright position | |
| Tilt tension adjustment | Under-seat knob adjusts resistance to match user weight | |
| Smooth mobility | Five dual-wheel casters enable rolling on hard and soft floors | |
| Fixed integrated armrests | Continuous curved arm support 200mm above seat surface | |
| Ergonomic contoured support | Curved mid-back design provides mid-back lumbar support | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Private executive office | Upholstered professional appearance suitable for manager/executive workstations | |
|---|---|---|
| Conference meeting room | Sleek profile and mobile base suit collaborative meeting space seating | |
| Home office workspace | Comfortable padding and adjustability support long-duration home work use | |
| Executive reception area | Polished two-tone finish creates a professional impression for visitor spaces | |
| Corporate workstation deployments | Commercial-grade construction supports daily use in open office plan settings | |
| Client consultation rooms | Upholstered comfort maintains professional appearance for face-to-face meetings | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Applies to office chair dimensional and safety performance requirements | |
|---|---|---|
| EN 1335-2:2018 | Applies to office chair strength, durability and stability test methods | |
| EN 1022:2018 | Applies to seating stability testing for domestic and contract furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applies to general-purpose office chair performance and durability standards |
|---|
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to office chair dimensional measurement and tolerance requirements | |
|---|---|---|
| GB/T 10357.3-2013 | Applies to office chair strength and durability test methods | |
| GB 28007-2011 | Applies to office chair safety, stability and edge requirement standards |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to office chair dimensional measurement and tolerance requirements; 2. GB/T 10357.3-2013: Applies to office chair strength and durability test methods; 3. GB 28007-2011: Applies to office chair safety, stability and edge requirement standards; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.
Open Export Tool
