Product supplierTwo-Tone Padded Visitor Chair with Chrome Cantilever Sled Base, Padded two-tone upholstered panels with ivory seating surfaces and tan outer trim
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

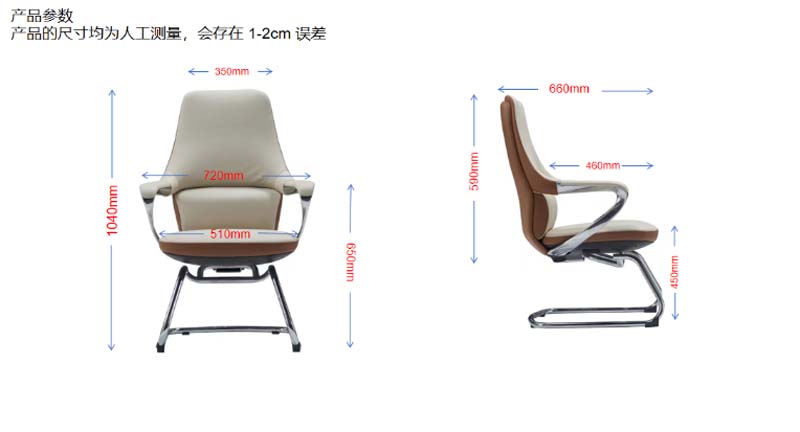

| Overall dimensions (W × D × H) | 720 × 660 × 1040 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 14 kg | |
|---|---|---|
| Recommended occupant load | 160 kg | |
| Cantilever frame static verification load | 320 kg | |
| Seat foam density | 35 kg/m3 | |
| Back foam density | 30 kg/m3 | |
| Foam rebound rating | 35% | |
| Upholstery abrasion acceptance target | 50000 Martindale cycles | |
| Color options | 2 colors | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Padded two-tone upholstered panels with ivory seating surfaces and tan outer trim | |
|---|---|---|
| Cushion core | Molded polyurethane foam under the upholstered seat and back | |
| Internal support board | 12 mm molded plywood or composite load board inside the seat cushion | |
| Arm pads | Upholstered pads matching the ivory seat material, mounted on curved chrome supports | |
| Cantilever frame | Polished chrome-plated steel tube formed as a continuous sled base with rear risers | |
| Floor protection | Black polymer glides fitted at four floor-contact points |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating movement | Fixed non-swivel visitor seating position with a resilient cantilever sled base | |
|---|---|---|
| Back support | Contoured high back with integrated lumbar curve and side wraps for upright meeting posture | |
| Arm support | Fixed curved arm loops with padded contact surfaces at 230 mm above seat level | |
| Floor placement | Four-point sled contact with polymer glides for hard floors and reduced sliding noise |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Export carton dimensions | 780 x 690 x 360 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Meeting and reception use | Suited to visitor rooms, executive meeting areas, and reception seating because the 450 mm fixed seat height pairs with standard 760 mm tables | |
|---|---|---|
| Commercial project installation | Suitable for bulk conference or consulting-room layouts where non-swivel sled bases reduce floor movement and simplify maintenance |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture seating safety | Recommended references: EN 1335 | |
|---|---|---|
| Office furniture seating dimensions | EN 1335is applicable for checking the fixed 450 mm seat height and clearances against office-seating requirements | |
| Upholstered furniture fire behavior | EN 1021cigarette ignition and EN 1021 match ignition apply if fire-rated upholstery is required |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Office chair structural validation | ANSI/BIFMA X5.1 provides static, impact, fatigue, and stability acceptance procedures for general-purpose office seating | |
|---|---|---|
| Cantilever durability focus | ANSI/BIFMA X5.1 seat-back cyclic and leg-strength clauses are relevant to the fixed steel sled frame |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Furniture mechanical safety | GB/T 10357.2 applies to chair stability and should be verified for the fixed cantilever base | |
|---|---|---|
| Upholstered furniture labeling | GB 20400 applies when leather or coated fabric is supplied and requires restricted-substance documentation |
Standardized tender description text
This product must meet the following technical requirements: 1. Furniture mechanical safety: GB/T 10357.2 applies to chair stability and should be verified for the fixed cantilever base; 2. Upholstered furniture labeling: GB 20400 applies when leather or coated fabric is supplied and requires restricted-substance documentation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
