PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

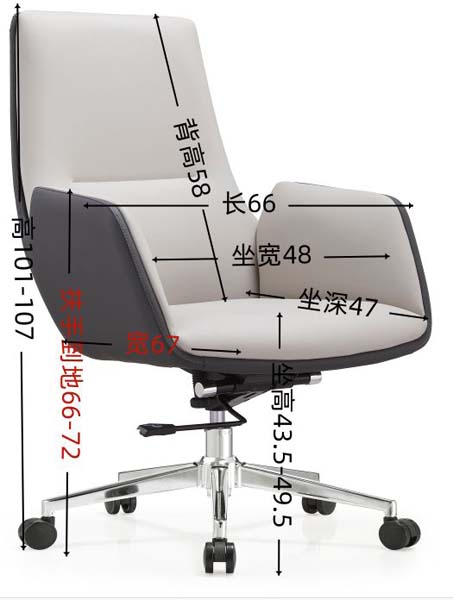

Overall dimensions (W × D × H)	670 × 660 × 1070 mm
Seat height from floor	495 mm
Backrest height	580 mm
Seat width	480 mm
Seat depth	470 mm
Armrest height from floor	720 mm
Seat height adjustment travel	60 mm
Five-star base total span	700 mm
Caster diameter	60 mm
Gas lift column diameter	50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	20 kg
Maximum recommended user weight	150 kg
Seat foam density	50 kg/m³
Backrest foam density	35 kg/m³
Seat foam thickness	80 mm
Backrest foam thickness	50 mm
Backrest recline angle range	12 degrees
Upholstery abrasion resistance	50000 double rubs
Seam stitch pitch	8 stitches per 30 mm
Frame warranty	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Two-tone light/dark grey faux leather
Internal support frame	12 mm thick bentwood plywood
Seat padding	High-density molded polyurethane foam
Backrest padding	Medium-density polyurethane foam
Five-star base	Polished chrome-plated aluminum
Gas lift column	Chrome-plated steel
Tilt mechanism	2.5 mm thick powder-coated steel
Armrest structure	Integrated upholstered wrap-around design, foam padded
Casters	Dual-wheel black nylon with PU tread
Frame edging	Dark grey matching faux leather trim
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Pneumatic height adjustment	60 mm travel via under-seat lever, locks at set height
360-degree swivel rotation	Smooth rotation around central gas lift axis
Tilt tension adjustment	Knob-controlled resistance for backrest recline
Upright backrest lock	Locks back in vertical working position at 90 degrees
Rolling mobility	Smooth movement on hard and soft floor surfaces via dual casters
Integrated arm support	Fixed wrap-around armrests for forearm support during task work
Lumbar support	Contoured mid-back shape supports natural lower back curve
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office workstations	Suitable for manager or individual desks, supports 8-hour daily task work
Open plan office spaces	Modern minimalist two-tone design fits contemporary open office decor
Meeting and conference rooms	Sleek profile works well around conference tables for guest seating
Home office spaces	Compact footprint fits home work areas without overwhelming room space
Hotel business centers	Durable commercial-grade construction supports high-traffic guest use
Executive meeting areas	Polished metal base provides premium appearance for executive spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety strength stability	EN 1335:2018
Office furniture dimensions	EN 1335:2020
Office chair upholstery durability	EN 14465:2003

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair general purpose	ANSI/BIFMA X2017
Pneumatic cylinder safety	ANSI/BIFMA X5.1 Clause 8
Caster durability testing	ANSI/BIFMA X5.1 Clause 12

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair structural strength	GB/T 10357.3
Upholstered furniture safety	GB 20400
Furniture mechanical performance office chairs	GB/T 3326

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair structural strength: GB/T 10357.3;
2. Upholstered furniture safety: GB 20400;
3. Furniture mechanical performance office chairs: GB/T 3326;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-MB-2TGR-670W

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-MB-2TGR-670W

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-MB-2TGR-670WOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Two-Tone Grey Mid-Back Swivel Height-Adjustable Office Task Chair (model OFC-MB-2TGR-670W) delivers a streamlined modern minimalist aesthetic defined by its coordinated light and dark grey upholstery, balanced proportions, and clean, uncluttered silhouette. Its contoured mid-back pairs with integrated wrap-around armrests for a cohesive visual profile, anchored by a polished five-star base that adds a refined, understated premium touch without excessive ornamentation. Overall dimensions measure 670 x 660 x 1070 mm, with a compact footprint that avoids overwhelming surrounding furniture arrangements, supported by a 700 mm five-star base span for stable visual balance. Built for consistent commercial and residential use, the chair features two-tone faux leather upholstery over a 12 mm thick bentwood plywood internal support frame. The seat uses 80 mm thick, 50 kg/m³ high-density molded polyurethane foam, while the backrest uses 50 mm thick, 35 kg/m³ medium-density polyurethane foam for targeted comfort. The base is polished chrome-plated aluminum, paired with a chrome-plated steel gas lift, 2.5 mm thick powder-coated steel tilt mechanism, and dual-wheel black nylon casters with PU tread. Integrated armrests include foam padding for soft, continuous forearm support, and the chair carries a net weight of 20 kg with a maximum recommended user weight of 150 kg. Core functional features support flexible, ergonomic task work: a 60 mm pneumatic height adjustment controlled by an under-seat lever locks at the user’s preferred setting, while 360-degree smooth swivel rotation enables easy access to surrounding work surfaces. The backrest offers 12 degrees of recline, with a knob-controlled tilt tension adjustment to match user preference, plus an upright lock that secures the backrest at a 90-degree vertical position for focused work. Dual-wheel casters enable smooth movement across both hard and soft floor surfaces, and the contoured mid-back shape aligns with the natural lower back curve to support 8 hours of daily task use. This chair is versatile across a range of settings, including private office workstations for managers or individual users, contemporary open plan office spaces, meeting and conference rooms for guest seating, compact home office areas, high-traffic hotel business centers, and executive meeting areas where its polished base conveys a premium appearance. For procurement planning, note that each unit ships across two cartons, with a packaged gross weight of 23 kg per set, total carton volume of 0.26 m³, and an assembly time of 40 minutes per set. A 20-foot container can accommodate 135 sets at 85% space utilization, making the model suitable for both small-scale fit-outs and larger bulk orders.

Two-Tone Grey Mid-Back Swivel Height-Adjustable Office Task Chair Specifications
