PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 400 × 850 mm
Countertop thickness	30 mm
Left open shelf internal dimensions	350 x 360 x 280 mm
Upper drawer internal dimensions	350 x 360 x 120 mm
Lower drawer internal dimensions	350 x 360 x 150 mm
Right door cabinet internal dimensions	400 x 370 x 560 mm
Carcass panel thickness	18 mm
Back panel thickness	9 mm
Door panel thickness	20 mm
Adjustable shelf thickness in door cabinet	15 mm
Edge banding thickness	5 mm
Open shelf clearance height	280 mm
Leg base height	20 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	45 kg
Countertop static load capacity	50 kg
Formaldehyde emission grade	E1
Paint film hardness	3H
Drawer slide cycle rating	50000 cycles
Door hinge cycle rating	80000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Substrate carcass	High-density fiberboard (HDF)
Exterior finish	0.6mm natural walnut wood veneer
Edge treatment	5mm solid wood edge banding
Coating	Polyurethane environmental paint
Hardware pulls	Brass-toned zinc alloy
Drawer slides	Stainless steel silent ball-bearing slides
Door hinge	Stainless steel hydraulic damping hinge
Back panel	9mm HDF with veneer matching
Internal shelf	15mm HDF with walnut veneer
Foot pads	Non-slip plastic adjustable feet
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	Left upper open shelf, 2 lower left drawers, right single door cabinet
Door operation	Hinged single door opens 110 degrees, with magnetic catch
Drawer operation	Full extension 3-section slides, soft-close, load rated 15kg per drawer
Countertop use	Waterproof heat-resistant surface for electric tea boilers and tea sets
Door cabinet storage	Removable adjustable shelf to accommodate bottled water dispensers
Open shelf function	Open access for frequently used tea canisters and tea sets
Anti-tip feature	2 wall-mounted anti-tip connectors included
Surface maintenance	Stain-resistant wipe-clean finish, resistant to tea and water stains
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office tea break area	Placed against wall for tea preparation, tool and supply storage
Executive office side placement	Positioned next to executive desk for private tea service storage
Reception area side service	Used to serve visiting guests with tea set and boiler storage
Home living room side storage	Used as small sideboard for tea and beverage accessory storage
Recommended matching setup	Pair with matching walnut office desk and leather guest chair
User group	Office administrators, reception staff, tea enthusiasts

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural and dimensional acceptance
GB 18584-2001	Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture
GB 18580-2017	Formaldehyde emission limits for wood-based panels, requires E1 grade for office use
GB 18581-2020	Limit of harmful substances of solvent based wood coatings for furniture finishes

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and dimensional acceptance;
2. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, requires E1 grade for office use;
4. GB 18581-2020: Limit of harmful substances of solvent based wood coatings for furniture finishes;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TC-SD2D-800W

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TC-SD2D-800W

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TC-SD2D-800WOpen Export Tool

Quick Actions

Post an RFQ

Product Description

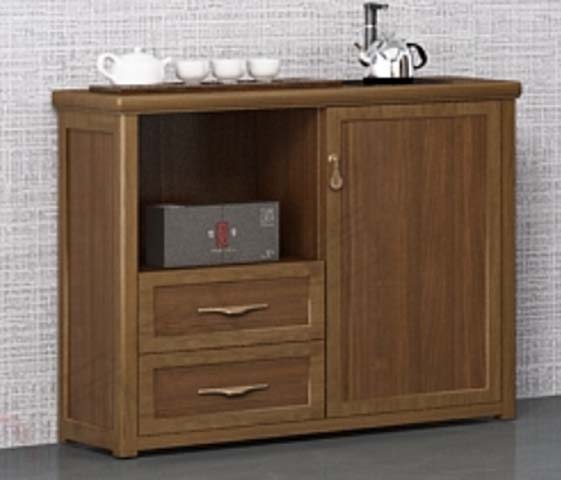

This floor-standing New Chinese Style tea storage cabinet balances refined traditional aesthetic cues with functional everyday storage, designed to serve both commercial and residential tea service needs. Its warm walnut brown finish is complemented by understated brass-toned hardware, creating a calm, sophisticated visual presence that fits seamlessly into coordinated warm wood interior schemes. The cabinet’s layout splits storage zones across its front face: an upper open shelf sits on the left above two stacked drawers, while a single hinged door occupies the full right side, creating a balanced mix of immediately accessible and concealed storage space.
The cabinet is built on a high-density fiberboard substrate, finished with a natural walnut wood veneer and solid wood edge banding, coated with polyurethane environmental paint that meets E1 formaldehyde emission standards. Hardware includes brass-toned zinc alloy pulls, stainless steel silent ball-bearing drawer slides, and stainless steel hydraulic damping door hinges, engineered for smooth, long-term regular use. The thick countertop features a waterproof, heat-resistant surface, while structural panels are built to support consistent static and distributed loads for regular storage use.
Practical functions are tailored specifically to tea service workflows. The left open shelf offers quick access to frequently used tea canisters and regularly used tea sets, while the two soft-close, full-extension drawers provide concealed storage for smaller tea tools and accessories. The right single-door cabinet includes a removable, adjustable shelf designed to accommodate bottled water dispensers, with a magnetic catch to hold the door securely closed when not in use, and the door opens to allow easy access to stored contents. Two wall-mounted anti-tip connectors are included for secure installation.
This cabinet is well suited for placement in office tea break areas positioned against walls for tea preparation and supply storage, next to executive desks for private tea service storage, or in reception areas to support tea service for visiting guests. It also works in residential home living rooms as a compact sideboard for tea and beverage accessory storage, and pairs naturally with matching walnut-toned office desks and leather guest chairs for a coordinated look.
For procurement, note that each unit is shipped in multiple cartons, requires on-site assembly, and includes the necessary anti-tip hardware for safe installation. The unbranded model TC-SD2D-800W is an ideal selection for office administrators, reception teams, and home tea enthusiasts seeking a cohesive, purpose-built storage solution for tea service setups.

New Chinese Style Walnut Brown Office Tea Storage Cabinet with Open Shelf, Two Drawers and Single Door Specifications
