PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	480 × 575 × 850 mm
Overall assembled dimensions	480 x 575 x 850 mm
Seat width	480 mm
Seat depth	470 mm
Seat height (floor to seat top)	470 mm
Backrest width	405 mm
Backrest height	345 mm
Base width (leg to leg front)	445 mm
Base depth (front to rear leg)	575 mm
Armrest height above seat	200 mm
Knee clearance under seat	420 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per chair	8 kg
Recommended static load capacity	125 kg
Stacking capacity (vertical stack)	10 chairs
Seat foam density	60 kg/m³
Seat cushion thickness	60 mm
Mesh abrasion resistance	50000 double rubs
Frame static load rating	150 kg
Warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame construction	1.5mm thick powder-coated steel tubular frame
Backrest support	Injection-molded PA plastic back frame
Backrest upholstery	Breathable woven polyester office mesh
Seat support board	12mm thick molded plywood seat inner
Seat cushion padding	High-density molded polyurethane foam
Armrests	Integrated bent steel armrests matching frame
Floor glides	Injection-molded PP anti-slip plastic glides
Seam stitch pitch	8 stitches per 30mm
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed non-adjustable seat height	470 mm fixed floor-to-seat height
Stackable storage design	Vertical nesting for compact storage
Fixed integrated armrests	Fixed position armrests aligned to table height
Non-swivel, non-tilting structure	Rigid fixed frame connection between seat and back
Contoured lumbar support	Curved mesh back profile
Ganging compatibility	Compatible with standard ganging clips
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	880 x 470 x 600 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room meeting seating	Fixed height aligns with 760 mm standard conference tables for formal meetings
Reception and waiting areas	Stackable design supports flexible seating for variable visitor volumes
Corporate training rooms	Compact footprint and stackable storage suit multi-purpose training spaces
Event and seminar seating	Ganging compatible design enables quick row configuration for large events
Open plan collaborative zones	Lightweight, durable construction supports casual team collaboration areas
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Applies to non-domestic seating strength, durability and safety requirements
EN 1022:2018	Applies to seating stability test methods for contract furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020	Applies to lounge and public seating performance requirements for office use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to furniture dimensional coordination for office seating, used for size acceptance
GB/T 35607-2017	Applies to green product evaluation for furniture, sets VOC and formaldehyde limits
GB/T 10357.3-2013	Applies to mechanical strength and durability test methods for seating furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to furniture dimensional coordination for office seating, used for size acceptance;
2. GB/T 35607-2017: Applies to green product evaluation for furniture, sets VOC and formaldehyde limits;
3. GB/T 10357.3-2013: Applies to mechanical strength and durability test methods for seating furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SBC-MESH-8547

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SBC-MESH-8547

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SBC-MESH-8547Open Export Tool

Quick Actions

Post an RFQ

Product Description

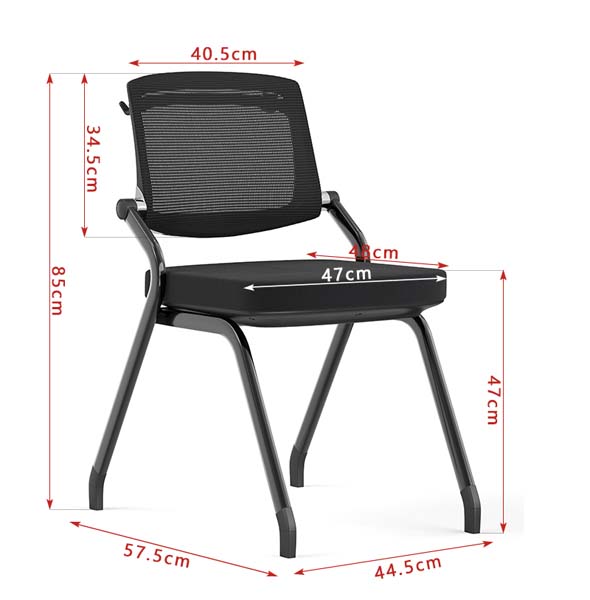

The Stackable Mesh Back Sled Base Conference Chair (model SBC-MESH-8547) is an unbranded public seating solution designed for flexible, high-utilization commercial spaces. It features a streamlined, professional silhouette in a uniform black finish, with a breathable woven polyester mesh back framed by a curved injection-molded PA plastic support that delivers built-in contoured lumbar support. Integrated bent steel armrests align flush with the frame profile, matching the clean lines of the powder-coated steel sled base, which is finished with non-slip PP plastic glides to protect floor surfaces. The padded upholstered seat uses a 60 mm thick high-density molded polyurethane foam cushion supported by a bent plywood inner core, with precise seam stitching at a rate of 8 stitches per 30 mm for durable, consistent upholstery edges. Assembled dimensions measure 480 mm wide by 575 mm deep by 850 mm tall, with a fixed 470 mm floor-to-seat height, 405 mm wide backrest, and 445 mm wide front leg span for stable, balanced positioning. The rigid non-swivel, non-tilting frame connection supports a 125 kg recommended static load per seat, with the underlying steel frame rated for a 150 kg static load. The mesh back delivers 50000 double rubs of abrasion resistance for long-term use in high-traffic settings, while the lightweight 8 kg per-unit weight enables easy repositioning. The chair’s vertical stacking design accommodates up to 10 chairs per stack for compact storage when not in use, and it is compatible with standard ganging clips to create connected, orderly rows. It features a 125° recline angle with 3 suggested lock positions to support comfortable extended seating during long sessions. This chair is suited for a wide range of public and commercial settings: its fixed seat height aligns with 760 mm standard conference tables for formal meeting rooms, its stackable design supports fluctuating visitor volumes in reception and waiting areas, its compact footprint fits multi-purpose corporate training rooms, its ganging capability enables fast setup for large events and seminars, and its durable lightweight build works well for casual collaborative zones in open plan offices. For procurement, note that each unit ships across 2 cartons with a total packaged gross weight of 23 kg per set, requiring 40 minutes of assembly time per unit. When planning space layouts, pair the chair with a 2.4 m executive desk or standard conference surfaces, and account for on-site assembly coordination and compatible ganging clip procurement if connected row seating is required for event use.

Stackable Mesh Back Sled Base Conference Chair Specifications
