Product supplierFixed Stackable Office Training Chair with Armrests, Vented Plastic Back and Padded Fabric Seat, 1.2 mm thick steel tube with white electrostatic powder coating
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

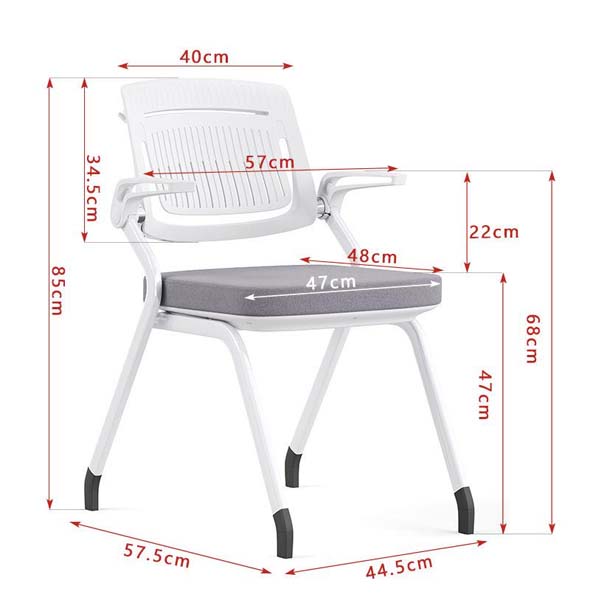

Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 570 × 575 × 850 mm | |
|---|---|---|
| Seat height from floor | 470 mm | |
| Seat usable width | 470 mm | |
| Seat usable depth | 480 mm | |
| Backrest width | 400 mm | |
| Backrest height above seat | 345 mm | |
| Armrest height above seat | 220 mm | |
| Armrest total outer width | 570 mm | |
| Front leg span width | 445 mm | |
| Front-to-back base depth | 575 mm | |
| Seat cushion thickness | 50 mm | |
| Frame steel tube diameter | 22 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight per chair | 6 kg | |
|---|---|---|
| Maximum static load capacity | 150 kg | |
| Seat foam density | 45 kg/m³ | |
| Seat foam rebound rate | 40% | |
| Seat fabric abrasion resistance | 30000 Martindale cycles | |
| Frame corrosion resistance service life | 5 years | |
| Stackable storage height per chair | 90 mm | |
| Recommended maximum user weight | 120 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Frame construction | 1.2 mm thick steel tube with white electrostatic powder coating | |
|---|---|---|
| Backrest | One-piece injection-molded virgin PP plastic with vertical vent slats and carry cutout | |
| Seat base support | Molded PP seat pan attached to frame with welded steel brackets | |
| Seat cushion fill | High-density molded polyurethane foam | |
| Seat upholstery | Woven polyester fabric with breathable weave | |
| Armrests | Integrated fixed PP armrests molded to match backrest finish | |
| Foot glides | Non-slip black rubber end caps with floor-protective flat base | |
| Frame joint construction | Fully welded tubular steel joints with smoothed weld seams | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating function | Fixed non-adjustable position for short-duration training, meeting and visitor use | |
|---|---|---|
| Storage function | Stackable up to 10 units high for compact vertical storage | |
| Row arrangement | Compatible with ganging brackets for fixed connected row seating | |
| Mobility feature | Integrated carry cutout in backrest top for single-hand transport between rooms | |
| Backrest ventilation | Vertical evenly spaced slats allow continuous airflow to reduce back heat buildup | |
| Floor protection | Non-abrasive rubber glides prevent floor scratching and reduce movement noise | |
| Optional accessory fitment | Pre-drilled mounting points support foldaway writing tablets on right or left side | |
| Tipping resistance | Four-point splayed leg base meets static stability requirements for hard flat floors | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Lightweight stackable design allows fast room reconfiguration for multi-session training | |
|---|---|---|
| Conference meeting spaces | Sleek white frame and neutral grey seat fit modern office aesthetic for visitor and attendee seating | |
| Educational classroom spaces | Durable PP back and fabric seat withstand frequent daily student use in schools and training centers | |
| Temporary event seating | Integrated carry cutout and stackable design support fast setup and teardown for seminars and events | |
| Reception waiting areas | Compact footprint and fixed stable structure suit short-duration visitor waiting seating | |
| Co-working flexible spaces | Neutral color palette and ganging bracket compatibility support flexible shared space layout | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-2:2018 | Office work chair safety requirements, applicable for structural strength testing | |
|---|---|---|
| EN 1022:2018 | Domestic and commercial seating stability test method, applicable for tip resistance | |
| EN 14465:2003 | Upholstery fabric abrasion resistance performance classification | |
| EN 12520:2015 | Furniture seating strength and durability test methods for commercial use |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | General purpose office chair safety and performance standard, applicable for load testing | |
|---|---|---|
| ANSI/BIFMA X5.11-2015 | Large occupant office chair requirements, applicable for heavy user variants | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and recyclability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural safety inspection | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable for frame strength inspection | |
| GB 28007-2011 | Safety requirements for children's furniture, applicable if units are used in K-12 training spaces | |
| GB/T 17592-2011 | Textile formaldehyde content limit, applicable for seat fabric inspection |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural safety inspection; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable for frame strength inspection; 3. GB 28007-2011: Safety requirements for children's furniture, applicable if units are used in K-12 training spaces; 4. GB/T 17592-2011: Textile formaldehyde content limit, applicable for seat fabric inspection; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
