PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

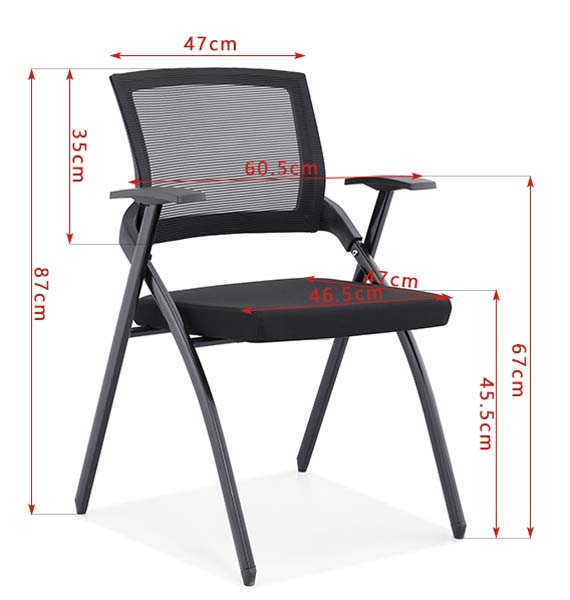

Overall dimensions (W × D × H)	605 × 470 × 870 mm
Seat height from floor	455 mm
Backrest height above seat	350 mm
Armrest height from floor	670 mm
Seat usable width	470 mm
Seat usable depth	465 mm
Backrest width	470 mm
Folded frame thickness	90 mm
Leg splay footprint width at floor	540 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per chair	8.8 kg
Recommended static user load	156 kg
Seat foam thickness	50 mm
Seat foam density	45 kg/m³
Foam rebound rate	45%
Upholstery fabric abrasion resistance	50000 double rubs
Frame steel tube thickness	1.5 mm
Static load capacity per leg	50 kg
Stackable quantity for storage	10 units
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main frame	1.5mm thick powder-coated steel tube, anti-rust matte black finish
Backrest support panel	PA+fiberglass reinforced plastic frame
Backrest surface	Breathable black woven polyester mesh, tensioned for lumbar support
Seat support shell	Molded plywood base
Seat upholstery	Black woven polyester fabric, stitched over foam padding
Seat cushion fill	High-density polyurethane rebound foam
Armrests	Injection-molded black PP plastic, fixed to side frame brackets
Leg floor glides	Non-marring black plastic end caps, anti-slip
Folding pivot hardware	Zinc-plated steel rivets with lock washer, anti-rust treatment
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Folding mechanism	Central side-pivot X-frame, folds flat to 90mm thickness for storage
Stacking capability	Supports vertical stacking up to 10 chairs when folded
Adjustment features	No swivel, no gas lift, no recline, no height adjustment, fixed static structure
Mobility design	No casters, static placement with floor glides for hard floor protection
Back support	Slight fixed lumbar curve on tensioned mesh back, no tilt function
Seat stability	Four splayed steel legs provide 540mm floor footprint for tip resistance
Optional accessory compatibility	Supports retrofittable writing tablet and 50mm casters per category standard
Seam construction	6 stitches per inch on seat upholstery, reinforced stress point stitching
Storage clearance	Folded chairs require 0.19 cubic meters per two units for transport
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate training rooms	Compact stackable design allows fast setup and teardown for scheduled training sessions
Conference and meeting spaces	Professional black finish and breathable mesh suit formal guest and attendee seating
Temporary event seating	Folding flat form simplifies transport and storage for offsite company events
Open office collaborative areas	Lightweight movable design supports flexible reconfiguration for ad-hoc group work
Educational institution classrooms	Durable steel frame withstands daily high-volume use in school or workshop settings
Waiting and reception areas	Fixed armrests and ergonomic seat height provide comfortable short-duration guest seating
Small office overflow seating	Stackable storage minimizes footprint when chairs are not in active use
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Office furniture office chairs dimensional safety requirements, applicable to fixed seating dimensions
EN 1022:2018	Furniture seating stability test method, applicable to tipping resistance verification
EN 1728:2014	Furniture seating test methods for strength and durability, applicable to cyclic load testing
EN 12520:2015	Furniture seating strength durability safety requirements, applicable to commercial use rating

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	General purpose office chairs standard, applicable to static and cyclic load validation
ANSI/BIFMA X5.4-2023	Lounge and guest seating standard, applicable to fixed visitor training seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to seat plywood shell quality
GB/T 3325-2017	General technical requirements for metal furniture, applicable to steel frame durability
GB/T 24430.1-2009	Office furniture visitor chair safety and test methods, applicable to static load testing
GB 18584-2001	Indoor decoration material furniture harmful substance limit, applicable to formaldehyde emission

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to seat plywood shell quality;
2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame durability;
3. GB/T 24430.1-2009: Office furniture visitor chair safety and test methods, applicable to static load testing;
4. GB 18584-2001: Indoor decoration material furniture harmful substance limit, applicable to formaldehyde emission;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FTC-MB605-870

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FTC-MB605-870

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FTC-MB605-870Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Black Mesh Back Padded Seat Folding Office Training Chair with Fixed Armrests, model FTC-MB870is an unbranded static seating solution built for flexible, high-use seating needs. It features a streamlined, professional matte black finish across all components, with a consistent upright profile suited to formal and casual settings alike. When set up, its four splayed steel legs create a stable floor footprint, and fixed PP armrests sit at a consistent height aligned to the seat and backrest. The backrest uses tensioned black woven polyester mesh set into a PA+fiberglass reinforced plastic support frame, with a slight fixed lumbar curve for gentle support. The seat combines a molded plywood base, high-density polyurethane rebound foam padding, and black woven polyester upholstery stitched securely over the cushion. The main frame is constructed from 1.5mm thick powder-coated steel tube with an anti-rust matte coating, connected with zinc-plated steel rivets and lock washers at the central side-pivot X-frame folding mechanism. Non-marring, anti-slip black plastic glides cap each leg to protect hard flooring surfaces. The chair folds completely flat to a slim profile for compact storage, and supports vertical stacking of up to 10 units when folded to minimize storage footprint. It has no swivel, gas lift, recline, or height adjustment functions, retaining a fixed, rigid structure for consistent, stable seating. The breathable mesh back reduces heat buildup during extended sitting, while the padded seat balances support and comfort for users. The design is compatible with retrofittable writing tablets and casters per category standards to support customized use cases. This chair fits a wide range of commercial and select residential spaces: it works seamlessly in corporate training rooms for fast setup and teardown between scheduled sessions, formal conference and meeting spaces for guest and attendee seating, temporary offsite company events due to its easy transport and flat storage, open office collaborative areas for quick reconfiguration during ad-hoc group work, educational institution classrooms and workshops for durable daily high-volume use, and waiting or reception areas for comfortable short-duration guest seating. When procuring this model, note that each unit ships across two cartons, with assembly required per unit; factor in lead times and assembly labor for large orders, and confirm storage space aligns with its stacked and folded dimensions to support efficient turnover between events or sessions. Its durable fabric and steel construction is engineered to withstand frequent use, making it a practical choice for spaces requiring flexible, no-fuss seating solutions.

Black Mesh Back Padded Seat Folding Office Training Chair with Fixed Armrests Specifications
