Product supplierStackable Mesh Back Fixed Arm Training Office Chair, Black PP plastic frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

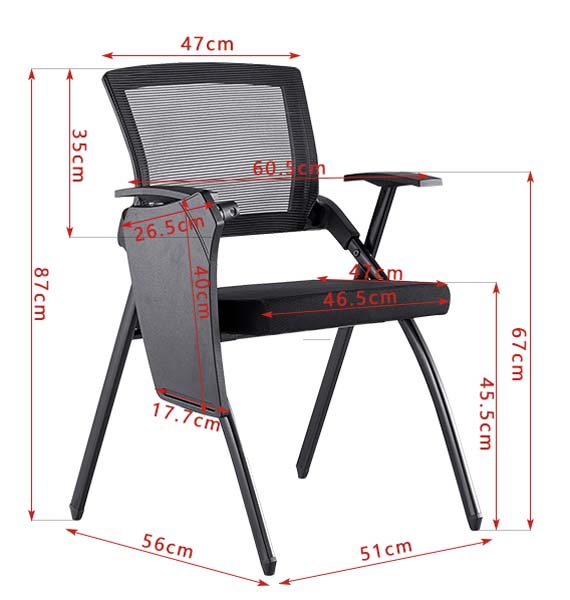

Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 605 × 605 × 870 mm | |
|---|---|---|
| Seat height from floor | 455 mm | |
| Seat usable depth | 465 mm | |
| Seat panel depth | 470 mm | |
| Backrest width | 470 mm | |
| Backrest height | 350 mm | |
| Armrest total width | 605 mm | |
| Armrest height from seat | 215 mm | |
| Rear leg base width | 560 mm | |
| Front leg base width | 510 mm | |
| Seat side support height | 400 mm | |
| Seat side support lower section | 177 mm | |
| Armrest support length | 265 mm | |
| Armrest top height from floor | 670 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight per unit | 12 kg | |
|---|---|---|
| Recommended static user load | 125 kg | |
| Seat foam density | 50 kg/m³ | |
| Seat foam thickness | 50 mm | |
| Back mesh tensile strength | 2000 N/5cm | |
| Seat fabric abrasion resistance | 50000 Martindale cycles | |
| Maximum stackable count | 10 units | |
| Frame static load capacity | 500 kg | |
| Standard warranty period | 5 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest support panel | Black PP plastic frame | |
|---|---|---|
| Backrest upholstery | Breathable polyester mesh tensioned across frame | |
| Seat core base | 12mm thick plywood seat shell | |
| Seat padding | High-density molded polyurethane foam | |
| Seat upholstery | Wear-resistant black polyester fabric cover | |
| Leg frame | 2.0mm thick powder-coated oval steel tube | |
| Armrest top surface | Fixed hard PP plastic with smooth matte finish | |
| Foot glides | Anti-slip injection-molded plastic floor protectors | |
| Frame connection hardware | Zinc-plated steel bolts and rivets | |
| Seam stitch pitch | 8 stitches per 30mm | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat height adjustment | No height adjustment, fixed 455mm seat height for standard desk use | |
|---|---|---|
| Backrest recline function | No recline or tilt, fixed 100 degree backrest angle for upright seated support | |
| Armrest adjustment | Fixed integrated armrests at 215mm above seat, no height/depth/pivot adjustment | |
| Stacking capability | Vertical nesting stacking for compact storage, up to 10 units per stack | |
| Floor protection | Integrated non-marring glides to prevent scratching hard floor surfaces | |
| Mobility | Non-swivel, non-wheeled stationary design for permanent seating layouts | |
| Seat orientation | Fixed forward-facing seat with no rotation or folding mechanism | |
| Optional add-on compatibility | Accepts side-mounted writing tablet for note-taking applications | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Suitable for multi-attendee sessions, stackable for quick layout reconfiguration | |
|---|---|---|
| Conference meeting spaces | Matches formal fixed seating requirements for boardroom and meeting areas | |
| Reception and waiting areas | Durable, low-maintenance design for high-traffic guest waiting zones | |
| Educational institution classrooms | Sturdy fixed seating suitable for lecture halls and breakout learning spaces | |
| Event and temporary seating | Quickly deployable and storable for temporary company events and seminars | |
| Open plan office touchdown zones | Compact footprint supports short-term collaborative work and visitor seating | |
| Government and public service halls | Robust construction meets high-use public area seating requirements | |
| Recommended Matching Desk Size | 2.4 m executive desk |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Applies to dimensional safety and performance requirements for office work chairs | |
|---|---|---|
| EN 1022:2018 | Applies to stability testing requirements for non-domestic seating | |
| EN 16139:2013 | Applies to strength, durability and safety for non-domestic visitor chairs |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applies to general-purpose office chair safety and performance test criteria | |
|---|---|---|
| ANSI/BIFMA X5.4-2020 | Applies to lounge and public seating strength and stability requirements |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to dimensional stability and size measurement requirements for office seating | |
|---|---|---|
| GB/T 3324-2017 | Applies to general technical requirements for wooden and metal office furniture | |
| GB 18584-2001 | Applies to formaldehyde emission limits for interior decoration furniture materials | |
| GB/T 10357.3-2013 | Applies to mechanical strength and durability test methods for seating |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to dimensional stability and size measurement requirements for office seating; 2. GB/T 3324-2017: Applies to general technical requirements for wooden and metal office furniture; 3. GB 18584-2001: Applies to formaldehyde emission limits for interior decoration furniture materials; 4. GB/T 10357.3-2013: Applies to mechanical strength and durability test methods for seating; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
