Automatic mm / inch conversion · Core engineering specifications

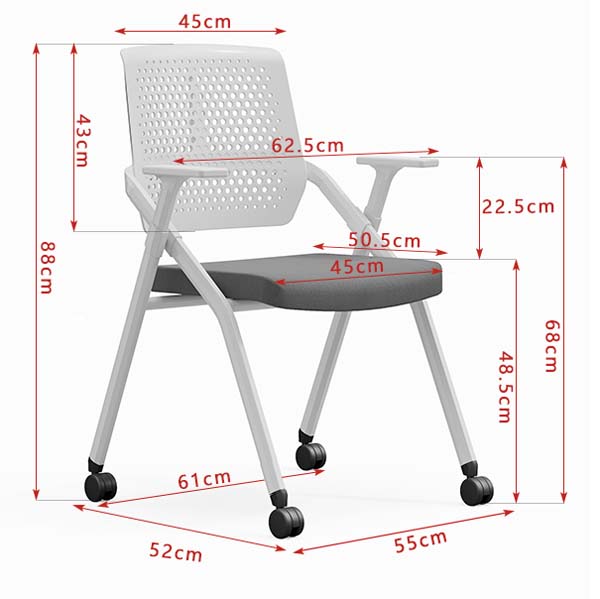

| Overall dimensions | 625 x 610 x 880 mm | |
|---|---|---|
| Seat width | 450 mm | |
| Seat depth | 450 mm | |
| Seat height from floor | 485 mm | |
| Backrest height | 430 mm | |
| Armrest height above seat | 225 mm | |
| Armrest overall span | 625 mm | |
| Seat usable width between armrests | 505 mm | |
| Base footprint width | 550 mm | |
| Base footprint depth | 610 mm | |
| Rear base width | 520 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net weight per unit | 10 kg | |
|---|---|---|
| Recommended user static load capacity | 120 kg | |
| Steel frame static load rating | 1000 kg | |
| Caster rolling durability cycle count | 300000 cycles | |
| Seat foam compression durability | 300000 cycles | |
| Standard commercial warranty period | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg |
Core acceptance fields · Panels / hardware / frame / upholstery
| Frame construction | 26 mm diameter powder-coated steel tube, 2.8 mm wall thickness | |
|---|---|---|
| Backrest material | Perforated polypropylene plastic with uniform ventilation holes | |
| Seat cushion core | 40 mm thick high-density molded foam, 45 kg/m³ density | |
| Seat upholstery | 2 mm thick dark gray polyester fabric, 50000 double-rub abrasion rating | |
| Caster material and size | 50 mm diameter silent dual-wheel nylon casters | |
| Armrest construction | Integrated molded polypropylene armrests connected directly to steel frame | |
| Frame finish | Light gray textured powder coating on steel tubing | |
| Seat base support | Plywood core under seat foam, 12 mm thickness | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
| Mobility feature | Four dual-wheel casters enable 360° rolling movement on hard office floors | |
|---|---|---|
| Adjustment features | No height adjustment, no swivel, no recline, fixed armrest position | |
| Backrest ventilation | Full perforated hole pattern provides continuous airflow to reduce back heat buildup | |
| Seat ergonomics | Contoured waterfall front seat edge reduces pressure on back of legs during extended sitting | |
| Knee clearance under seat | 195 mm vertical clearance between floor and seat underside | |
| Surface protection | Soft nylon caster material prevents scratches on wood, tile and vinyl office flooring | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Corporate training rooms | Compact rolling design supports easy reconfiguration for varying training session layouts | |
|---|---|---|
| Small conference and meeting spaces | Neutral gray tone and slim profile suit formal and collaborative meeting environments | |
| Co-working and open office areas | Lightweight mobile construction supports flexible temporary seating arrangements | |
| Educational institution lecture halls | Durable steel frame and easy-clean surfaces suit high-frequency public use | |
| Visitor and reception waiting areas | Ventilated back and padded seat provide comfortable short-to-medium term seating for guests | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| Applicable office furniture safety standard | EN 1335:2020 | |
|---|---|---|
| Applicable seating stability standard | EN 1728:2014 |
US and Canada office-furniture standards
| Applicable office chair performance standard | ANSI/BIFMA X2017 |
|---|
Standards applicable to China-market projects
| Applicable standard for office seating mechanical safety | GB/T 3326 | |
|---|---|---|
| Applicable standard for seating stability | GB/T 10357.2 | |
| Applicable standard for seating strength and durability | GB/T 10357.3 |
This product must meet the following technical requirements: 1. Applicable standard for office seating mechanical safety: GB/T 3326; 2. Applicable standard for seating stability: GB/T 10357.2; 3. Applicable standard for seating strength and durability: GB/T 10357.3; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
