PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

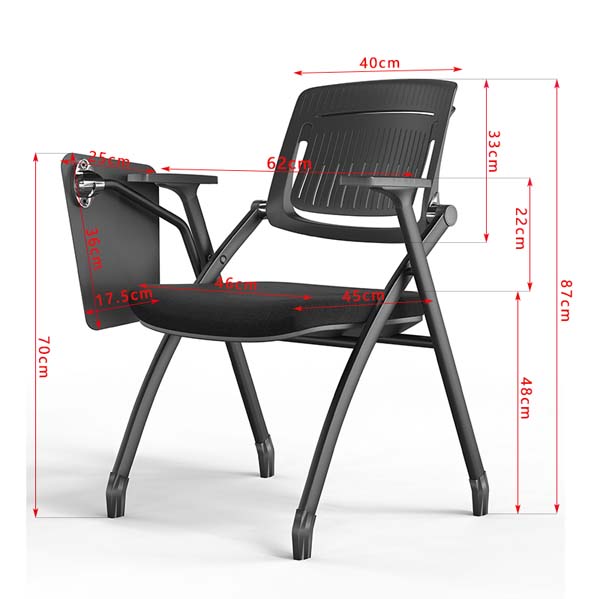

Overall dimensions (W × D × H)	620 × 700 × 870 mm
Seat height from floor	480 mm
Seat usable width	460 mm
Seat usable depth	450 mm
Backrest height above seat	330 mm
Backrest width	400 mm
Armrest height above seat	220 mm
Writing tablet usable dimensions	250 x 360 mm
Writing tablet thickness	17.5 mm
Folded profile depth	200 mm
Leg spread width at floor	580 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per chair	8 kg
Maximum recommended user load	150 kg
Stacking quantity for storage	15 chairs
Writing tablet static load capacity	15 kg
Frame static load rating	300 kg
Seat cushion foam density	45 kg/m³
Seat cushion foam thickness	40 mm
Backrest foam thickness	10 mm
Warranty period for commercial use	5 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame construction	1.5 mm thick powder-coated cold-rolled steel tube
Backrest	Vented slotted black polypropylene plastic
Seat upholstery	300D polyester fabric over high-density foam
Seat internal support	12 mm thick plywood base under foam padding
Writing tablet	Solid black polypropylene plastic with steel pivot bracket
Armrests	Integral glass-fiber reinforced polypropylene
Foot caps	Non-slip injection-molded nylon end caps
Tablet pivot hardware	Zinc-plated steel hinge with detent lock
Surface finish on frame	Epoxy polyester powder coating, matte black
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Folding mechanism	X-pattern steel frame hinge that folds flat for storage
Writing tablet operation	Side-mounted tablet rotates 90 degrees to stow flush when not in use
Stacking capability	Folded chairs nest vertically for high-density storage
Backrest ventilation	Vertical slotted openings provide 30% open area for airflow
Optional caster compatibility	Pre-drilled leg ends accept 50 mm swivel casters for mobile configurations
Seat tilt lock	Positive lock in open position to prevent unintended folding during use
Optional under-seat storage	Frame accepts mesh book net attachment below seat
Tablet load detent	Locking detent holds tablet in horizontal working position
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate training rooms	Compact stackable design supports quick room reconfiguration between sessions
Conference and meeting spaces	Integrated writing tablet supports note-taking without separate tables
Educational institution classrooms	Durable frame and easy cleaning suit daily student use
Temporary event seating	Foldable lightweight design allows fast setup and teardown for events
Co-working flexible spaces	Stackable storage minimizes footprint when not in active use
Exam and assessment halls	Attached tablet provides individual writing surface for testing environments
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1728:2012	Domestic and commercial furniture seating test methods for strength and durability
EN 1022:2018	Seating furniture stability test standard for non-domestic use
EN 12520:2015	Strength, durability and safety requirements for commercial seating

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	General purpose office chairs standard for static and dynamic load testing
ANSI/BIFMA X5.4-2020	Lounge and public seating standard for multi-use institutional applications

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for metal furniture, applicable to frame structural performance
GB/T 35607-2017	Green product assessment standard for furniture, applicable to low-emission material verification
GB 28007-2011	Safety requirements for children's and institutional furniture, applicable to stability testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to frame structural performance;
2. GB/T 35607-2017: Green product assessment standard for furniture, applicable to low-emission material verification;
3. GB 28007-2011: Safety requirements for children's and institutional furniture, applicable to stability testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FTC-870-FWT-BLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FTC-870-FWT-BLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FTC-870-FWT-BLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The FTC-870-FWT-BLK Foldable Training Chair with Integrated Side Writing Tablet delivers functional, space-efficient seating for high-turnover, flexible-use environments. Presented in a consistent matte black finish across its frame, seating surfaces and integrated components, the chair features a streamlined silhouette that balances structured support with unobtrusive visual weight. The side-mounted writing tablet sits flush with the chair’s side profile when stowed, creating a neat, uniform layout for rows of arranged seating, while the vented backrest adds subtle textural detail without disrupting the chair’s clean, professional aesthetic. Built for frequent commercial use, the chair’s frame is constructed from 1.5mm thick cold-rolled steel tube finished with durable epoxy polyester powder coating, paired with non-slip injection-molded nylon foot caps to protect flooring and prevent shifting during use. The backrest is formed from vented slotted black polypropylene, with vertical slotted openings that deliver consistent airflow for user comfort during extended seated sessions. The padded seat features 40mm thick high-density foam supported by a 12mm plywood base, upholstered in smooth 300D polyester fabric. The solid black polypropylene writing tablet attaches via a zinc-plated steel hinge with detent lock, connected to integral glass-fiber reinforced polypropylene armrests for stable support during use. Practical functionality is built into every element of the design. An X-pattern steel frame hinge allows the chair to fold completely flat for storage, with a positive seat tilt lock that prevents unintended folding when the chair is in use. The side-mounted writing tablet rotates 90 degrees to stow flush against the chair when not needed, providing a stable surface for note-taking, device placement or exam materials. When folded, chairs nest vertically to support high-density storage, minimizing the footprint required when seating is not in active use. Pre-drilled leg ends accommodate compatible swivel casters for mobile seating configurations, and the frame is designed to accept an optional mesh book net for under-seat storage. This chair is well suited for a wide range of commercial and flexible residential-style shared spaces, including corporate training rooms that require fast reconfiguration between sessions, conference and meeting spaces where integrated writing surfaces eliminate the need for separate side tables, and educational institution classrooms built for daily, repeated student use. It also serves temporary event seating needs, as its lightweight build allows for fast setup and teardown, and fits co-working flexible spaces where minimized storage footprint is a priority, as well as exam and assessment halls that require dedicated individual writing surfaces for every seat. For procurement teams, key considerations include the chair’s 40-minute per-unit assembly time, with each unit shipped across two cartons. When planning storage allocations, teams may account for the chair’s vertical nesting capacity to maximize available storage space. Orders can be configured to include compatible casters for mobile setups or under-seat mesh storage nets to match specific space requirements, and the durable, easy-to-clean surface materials support low-maintenance upkeep for high-traffic deployments. The chair’s rated weight capacities for the frame, seat and writing tablet should be aligned with intended use cases to support long-term product lifespan.

Foldable Training Chair with Integrated Side Writing Tablet Specifications
