Automatic mm / inch conversion · Core engineering specifications

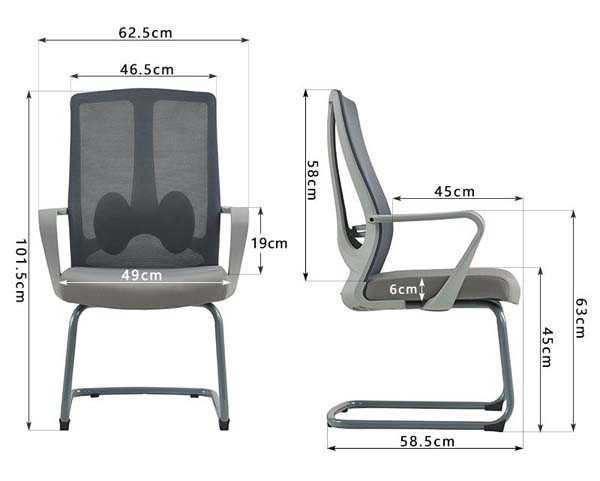

| Overall dimensions | 625 x 585 x 1015 mm | |
|---|---|---|
| Backrest width | 465 mm | |
| Seat width | 490 mm | |
| Backrest height | 580 mm | |
| Seat depth | 450 mm | |
| Fixed seat height from floor | 450 mm | |
| Armrest height above seat | 190 mm | |
| Seat cushion thickness | 60 mm | |
| Sled base footprint length | 585 mm | |
| Lower side profile height (arm to glide) | 630 mm | |
| Cantilever frame tube diameter | 25 mm | |
| Anti-slip glide width per foot | 30 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Recommended static user load capacity | 120 kg | |
|---|---|---|
| Seat foam density | 65 kg/m³ | |
| Foam rebound rate | 45% | |
| Mesh back fabric abrasion resistance | 50000 Martindale cycles | |
| Product net weight | 14 kg | |
| Structural cycle durability | 100000 cycles | |
| Available color count | 3 | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Backrest panel | Tensioned breathable nylon office mesh | |
|---|---|---|
| Integrated lumbar support pad | Molded contoured PP support with fabric overlay | |
| Seat cushion core | High-density molded polyurethane foam | |
| Seat upholstery | Woven polyester fabric over foam | |
| Cantilever base frame | 25mm diameter chrome-plated cold-rolled steel tube | |
| Fixed armrests | Glass-fiber reinforced polypropylene (PP) | |
| Back support inner frame | 22mm diameter powder-coated steel tube | |
| Floor glides | Injection-molded polypropylene anti-slip pads | |
| Seat support base plate | 2mm thick stamped steel plate | |
| Seam stitch pitch | 8 stitches per 30mm | |
| Frame surface treatment | Electroplated chrome finish with anti-rust primer | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
| Seating mechanism | Fixed non-swivel, non-tilt, non-height-adjustable structure | |
|---|---|---|
| Back support function | Contoured dual-zone lumbar support aligned to natural lower back curve | |
| Armrest function | Fixed curved armrests providing stable forearm support during conference use | |
| Mobility restriction | Stationary non-rolling design with floor glides to protect hard flooring | |
| Back tilt behavior | Fixed 100° upright backrest angle optimized for formal meeting and reception seating | |
| Cushion performance | 60mm thick foam seat distributes seated pressure for 2+ hour meeting use | |
| Back ventilation | Breathable open mesh back reduces heat buildup during extended seated use | |
| Frame stability | Cantilever sled base provides 4-point floor contact for wobble-free stationary seating | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Corporate meeting rooms | Ideal for boardroom and conference table seating with fixed upright posture | |
|---|---|---|
| Office reception and visitor areas | Professional neutral appearance for guest waiting and reception use | |
| Staff training rooms | Durable construction suited for daily high-turnover training session seating | |
| Open office guest seating | Compact footprint for placement alongside workstations for visitor seating | |
| Public institution waiting areas | Commercial-grade durability for government, bank and hospital public seating | |
| Higher education seminar rooms | Sturdy fixed-base design suitable for university lecture and seminar spaces | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 16139:2013 Level 2 | Applies to strength, durability and stability requirements for non-domestic office seating | |
|---|---|---|
| EN 1022:2018 | Applies to stability test methods for all types of seating including visitor chairs | |
| EN 1335-2:2009 | Applies to safety performance requirements for office work chairs as relevant reference |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applies to general-purpose office chair durability, strength and safety test benchmarks | |
|---|---|---|
| ANSI/BIFMA X5.11-2015 | Applies to large occupant office chair load capacity test benchmarks for heavy-use models |
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to furniture dimensional measurement and tolerance requirements for office seating | |
|---|---|---|
| GB/T 10357.3-2013 | Applies to mechanical performance test methods for chair and stool strength and durability | |
| GB 18584-2001 | Applies to limit of harmful substances for indoor wooden and upholstered furniture materials | |
| GB/T 35607-2017 | Applies to green product evaluation requirements for office furniture |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to furniture dimensional measurement and tolerance requirements for office seating; 2. GB/T 10357.3-2013: Applies to mechanical performance test methods for chair and stool strength and durability; 3. GB 18584-2001: Applies to limit of harmful substances for indoor wooden and upholstered furniture materials; 4. GB/T 35607-2017: Applies to green product evaluation requirements for office furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
