PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

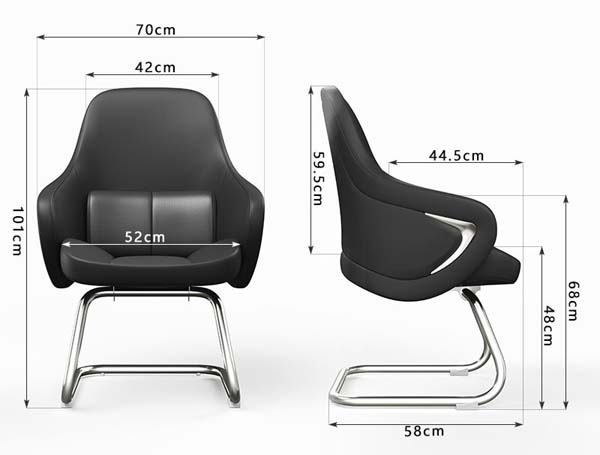

Overall dimensions (W × D × H)	700 × 580 × 1010 mm
Fixed seat height (floor to seat surface)	480 mm
Seat usable depth	445 mm
Inner seat width between armrests	520 mm
Inner backrest width	420 mm
Backrest height (seat surface to top)	595 mm
Overall armrest height (floor to arm top)	680 mm
Sled base footprint width	520 mm
Sled base front-to-back depth	580 mm
Cushion seat thickness	80 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	20 kg
Maximum recommended static user load	120 kg
Seat foam density	45 kg/m³
Seat foam rebound rate	60%
Upholstery abrasion resistance	50000 Martindale cycles
Cantilever frame static load rating	150 kg
Floor glide vertical load per glide	40 kg
Standard warranty period	10 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Black faux leather (PU), 1.2mm thickness
Seat cushion padding	45# high-resilience polyurethane foam
Backrest padding	35mm thick shaped foam with segmented lumbar insert
Internal support frame	1.5mm thick welded steel tube frame
Seat support panel	18mm thick curved bent plywood
Cantilever sled base	2.0mm thick steel tube with polished chrome plating
Floor contact glides	Injection-molded nylon with anti-slip rubber pad
Armrest side accent trim	Polished chrome metal insert
Integrated armrest padding	Same faux leather upholstery over 20mm foam
Seam construction	Reinforced bonded stitching with 8mm stitch pitch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat positioning	Fixed non-adjustable 480mm seat height with no gas lift mechanism
Backrest function	Fixed 100-degree upright back angle with built-in lumbar support
Armrest design	Integrated fixed wrap-around armrests at 200mm height above seat surface
Base mobility	Cantilever sled design with non-marking floor glides, no casters or swivel
Frame flex	Controlled 5-degree vertical flex from cantilever beam design for comfort
Surface protection	Rubber-tipped glides prevent scratching on hard flooring without additional pads
Assembly requirement	Fully assembled ready-to-use construction with no user assembly needed
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate boardroom use	Formal executive styling paired with conference tables for meeting rooms
Reception and waiting area use	Polished chrome and black finish for professional visitor seating in lobby areas
Executive office visitor seating	Positioned in front of executive desks for guest seating
Public institutional space use	Suitable for government, bank, or hotel public waiting areas
Hard floor compatibility	Rubber glides suitable for tile, wood, and marble flooring without floor damage
Standard commercial color availability	Black stocked as standard, custom upholstery colors available for bulk orders
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety and stability requirements	EN 1335:2018
Upholstered furniture fire resistance for non-domestic use	EN 1021:2014
Office furniture structural strength test methods	EN 1728:2012

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge and public seating performance standard	ANSI/BIFMA X2020

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair strength and durability testing	GB/T 10357.3
Furniture leather upholstery technical requirement	GB/T 16799
Furniture formaldehyde emission limit	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair strength and durability testing: GB/T 10357.3;
2. Furniture leather upholstery technical requirement: GB/T 16799;
3. Furniture formaldehyde emission limit: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CF-CNV-070-BLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CF-CNV-070-BLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CF-CNV-070-BLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The CF-CNV-070-BLK is an unbranded cantilever office conference chair designed to deliver consistent, professional seating for guest and visitor settings. It features a sleek, formal silhouette defined by a high contoured back, integrated wrapped armrests, and a polished chrome-plated steel cantilever sled base that creates an open, streamlined visual profile aligned with formal commercial design standards. The black leather-look faux leather upholstery is paired with chrome accent trim on the armrests for a polished, cohesive appearance that coordinates with most modern office and public space furnishings. Its construction prioritizes durable, long-lasting performance with layered supportive materials. The seat and back are upholstered in 1.2mm thick black PU faux leather, padded with high-resilience polyurethane foam; the backrest includes a shaped, segmented foam insert to deliver built-in lumbar support. Beneath the upholstery, an internal welded steel tube frame supports a curved bent plywood seat panel, mounted to a thick steel tube cantilever sled base finished in polished chrome. The base is fitted with injection-molded nylon glides tipped with anti-slip rubber, which protect hard flooring surfaces from scratches without additional padding. The chair also incorporates controlled vertical flex from its cantilever beam design to add subtle comfort during extended seated use. Functional design is tailored for fixed, low-maintenance visitor seating: it has a non-adjustable fixed seat height, a fixed upright back angle, and fixed wrap-around armrests, with no casters, swivel mechanism, or gas lift to reduce long-term maintenance needs. It arrives fully assembled for immediate use, requiring no end-user assembly. This chair is well suited for a range of formal commercial and semi-public spaces, including corporate boardrooms paired with conference tables, reception lobbies and waiting areas, guest seating positions in executive offices, and public waiting zones in government facilities, banks, and hotels. It is designed for safe use on tile, wood, and marble hard flooring. For procurement planning, note that black is stocked as the standard color, with custom upholstery color options available for bulk orders. Each unit ships across two cartons, with clear loading metrics available for full container orders, and carries a maximum recommended static user load aligned with general commercial visitor seating requirements.

Black Upholstered Cantilever Conference Visitor Chair with Chrome Sled Base Specifications
