PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 610 × 980 mm
Seat height	450 mm
Seat width	490 mm
Seat depth	460 mm
Seat cushion thickness	60 mm
Backrest height	530 mm
Backrest width	470 mm
Fixed armrest height above seat	210 mm
Cantilever base front-to-back span	570 mm
Floor clearance under seat	270 mm
Armrest pad length	230 mm
Finished Seat Cushion Thickness	90mm
Backrest Padding Thickness	70mm
Lumbar Support Zone Height	240mm
Clear Width Between Armrests	540mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight range	13.5kg
Seat cushion foam density	45kg/m³
Seat foam rebound rate	45%
Back mesh horizontal tensile strength	≥300 N/5cm
Cantilever frame static load test capacity	150 kg
Recommended continuous seating duration	4 hours
Standard warranty period	3 years for structural frame, 1 year for upholstery and wear parts
Cantilever frame durability cycle count	≥100,000 seating cycles
Recommended maximum user weight	120 kg Aligns with BIFMA general office chair user weight requirements for visitor seating; engineering estimate
Seat Foam Density / Rebound Reference	45kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Grey woven polyester mesh
Seat upholstery	Grey woven polyester fabric
Seat cushion core	High resilience molded polyurethane foam
Armrests	Injection molded light grey polypropylene (PP)
Support frame	Chrome-plated cold-rolled steel cantilever sled base
Seat pan inner structure	12mm thick multi-layer plywood
Floor glides	Injection molded black non-marking rubber
Frame connection hardware	Zinc-plated steel bolts and brackets
Back support frame	Injection-molded grey polypropylene (PP)
Cantilever support frame	Chrome-plated cold-rolled steel tubular sled base
Underseat support shell	Injection-molded dark grey polypropylene (PP)
Connection hardware	Zinc-plated grade 4.8 steel bolts and brackets

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base function	Fixed cantilever sled base with no swivel, tilt or height adjustment
Back support	Contoured fixed lumbar curve integrated into mesh back frame
Arm support	Fixed position armrests providing static forearm support
Mobility characteristic	Non-rolling sled base allows small repositioning movements on hard floors without lifting
Back ventilation	Breathable open mesh backrest allows air circulation to reduce heat buildup during long meetings
Floor protection	Non-marking rubber glides prevent scratches on hard wood, tile or vinyl flooring
Stacking capability	Non-stackable design
Seat edge design	Rounded waterfall front seat edge reduces pressure on back of thighs
Base operation	Fixed cantilever sled base with no swivel, tilt, or height adjustment
Floor mobility	Non-rolling sled base allows 100mm lateral repositioning on hard floors without lifting
Ventilation performance	Breathable open-mesh backrest allows unobstructed air circulation
Seat pressure relief	Rounded waterfall front seat edge with 20° downward slope

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging carton count	1 unit per carton
Reference carton dimensions	650 x 640 x 1010 mm
Reference gross weight per carton	16kg
Reference carton volume (CBM)	0.42 CBM per unit
20ft GP container loading capacity	175 units
40ft HQ container loading capacity	420 units
Reference carton volume	0.42 CBM per unit
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40minutes per set
Reference Packaged Gross Weight	23kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application 1	Corporate conference and meeting rooms
Primary application 2	Visitor seating in reception and waiting areas
Primary application 3	Guest seating in private executive offices
Primary application 4	Training room permanent seating
Compatible floor types	Suitable for hard wood, tile, vinyl and low-pile carpet floors
Not recommended use case	Not intended for 8+ hour daily full-time task seating
Available color options	Standard SKU in grey, with optional black or navy fabric/mesh available for bulk orders
Standard color offering	Stock SKU in medium grey, with optional black, navy blue, or charcoal mesh/fabric available for bulk orders

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Recommended acceptance standard 1	EN 1335:2009
Recommended acceptance standard 2	EN 1335:2009
Recommended acceptance standard 3	EN 1022:2005
Cantilever sled base front-to-back span	Recommended references: EN 1022

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Recommended acceptance standard 1	ANSI/BIFMA X2017
Recommended acceptance standard 2	ANSI/BIFMA X2012
Recommended static user load	120 kg
Recommended static user load reference	120 kg
Seat static load capacity	150 kg

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Recommended acceptance standard 1	GB/T 3326
Recommended acceptance standard 2	GB/T 27717
Recommended acceptance standard 3	GB 18584
Recommended acceptance standard 4	GB/T 19981.2

Standardized tender description text

This product must meet the following technical requirements:
1. Recommended acceptance standard 1: GB/T 3326;
2. Recommended acceptance standard 2: GB/T 27717;
3. Recommended acceptance standard 3: GB 18584;
4. Recommended acceptance standard 4: GB/T 19981.2;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-CAN-001-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-CAN-001-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-CAN-001-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

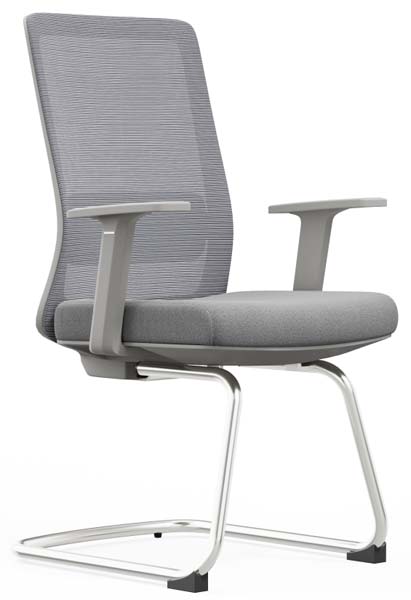

Mesh Back Cantilever Conference Office Chair (model OC-CAN-001-GRY) is listed under Bow Chair. Dimensions: 620 × 610 × 980 mm. Materials: Grey woven polyester mesh. Load capacity: 150 kg. Product Features: Fixed,cantilever,base,mesh,back,fabric,seat,fixed,armrests,ergonomic,lumbar,curve,seating. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.

Mesh Back Cantilever Conference Office Chair Specifications
