PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

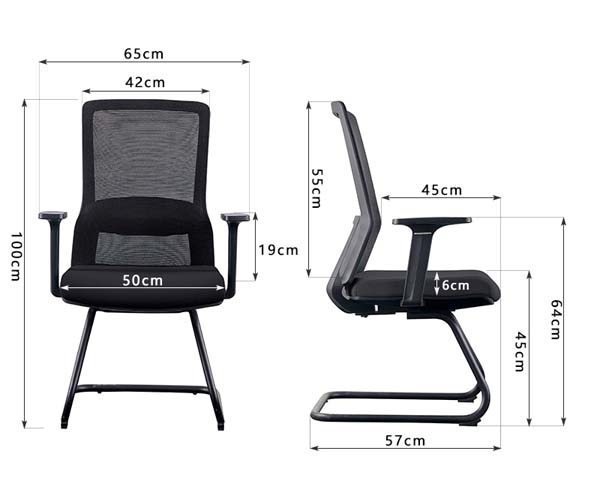

Overall dimensions (W × D × H)	650 × 570 × 1000 mm
Seat width	500 mm
Seat depth	450 mm
Seat height from floor	450 mm
Backrest width	420 mm
Backrest height above seat	550 mm
Armrest height above seat	190 mm
Armrest height from floor	640 mm
Seat cushion thickness	60 mm
Cantilever base width between legs	470 mm
Backrest lumbar support zone height	180 mm
Armrest top surface length	100 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	250 kg
Net weight per chair	10 kg
Static seat load rating	1360 N
Seat foam density	60 kg/m³
Foam rebound rate	45 %
Frame cantilever deflection under 100kg load	15 mm
Fabric mesh abrasion resistance	50000 Martindale cycles
Standard available color options	3
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable polyester mesh
Seat cushion padding	High-density molded polyurethane foam
Seat support board	12mm thick molded nylon composite
Cantilever frame base	2.0mm wall thickness powder-coated steel tube
Frame feet glides	Non-slip injection-molded polypropylene
Fixed armrests	Glass-fiber reinforced nylon with flat hard top
Seat surface upholstery	Wear-resistant black woven fabric
Frame surface finish	Matte black electrostatic powder coating
Backrest frame	Reinforced nylon outer frame
Seam stitching pitch	3 stitches per cm
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating posture support	Upright fixed mid-back geometry for meeting/visitor use
Lumbar support	Fixed curved lower mesh zone for lower back contact
Stationary base design	Fixed cantilever sled base with no casters, swivel, or tilt
Fixed arm support	Rigid non-adjustable armrests for stable forearm rest
Floor protection	Integrated anti-slip glides prevent floor scratches and unwanted sliding
Breathable back ventilation	Tensioned open mesh allows air flow for extended sitting comfort
Stacking compatibility	Non-stackable fixed frame design for permanent row or table placement
Assembly requirement	Knock-down assembly with bolts connecting seat/back to base
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference meeting rooms	Stationary armless? No, fixed-arm design suitable for multi-hour meeting seating
Office reception/waiting areas	Professional black mesh appearance for guest seating in lobby zones
Staff training rooms	Durable sled base withstands frequent use in training and educational spaces
Open office visitor seating	Compact footprint fits alongside workstations for guest seating during discussions
Public service hall counters	Stable fixed base suitable for high-traffic public waiting and service positions
Small meeting pod configurations	Uniform dimensions allow neat row arrangement in compact meeting spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture seating safety requirements	EN 1335:2018
Office furniture seating dimensional criteria	EN 1335:2020
Upholstered furniture fabric flammability	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge and visitor seating durability	ANSI/BIFMA X2021
Office chair floor protection performance	ANSI/BIFMA X2021

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair strength and durability	GB/T 35607
Upholstered furniture formaldehyde limits	GB 18584
Metal furniture surface coating requirements	GB/T 3324

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair strength and durability: GB/T 35607;
2. Upholstered furniture formaldehyde limits: GB 18584;
3. Metal furniture surface coating requirements: GB/T 3324;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CFM-CANT-65100

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CFM-CANT-65100

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CFM-CANT-65100Open Export Tool

Quick Actions

Post an RFQ

Product Description

This unbranded cantilever base mesh conference visitor chair, model CFM-CANT-65100, features a streamlined, professional matte black aesthetic designed for cohesive, neat layout in formal seating arrangements. Its upright mid-back profile and fixed rigid armrests create a clean, uniform silhouette that aligns consistently when placed in rows or around meeting surfaces, with no moving components to disrupt visual continuity across seating setups. The chair is built for long-term durability across high-use settings: its backrest uses tensioned breathable polyester mesh set within a reinforced nylon outer frame, paired with a seat upholstered in wear-resistant black woven fabric padded with high-density molded polyurethane foam, supported by a thick molded nylon composite board. The core structure relies on a powder-coated steel cantilever tube frame with a matte black electrostatic finish, fitted with non-slip injection-molded polypropylene glides at the feet. Fixed armrests are constructed from glass-fiber reinforced nylon with a flat, hard top surface for stable forearm support. Functional details are tailored to extended stationary seating: the fixed curved lower mesh zone delivers consistent lumbar contact to support upright posture during meetings or waits, while the open mesh back allows continuous air flow to reduce discomfort from prolonged sitting. The non-adjustable cantilever sled base includes no casters, swivel, or tilt mechanisms, and integrated glides prevent floor scratches and unintended chair movement. The chair uses a non-stackable fixed frame design suited to permanent placement. This model fits a broad range of commercial and public spaces: it supports multi-hour use in conference meeting rooms, delivers a polished professional look for office reception and waiting lobbies, stands up to frequent daily use in staff training rooms, fits neatly alongside workstations for open office visitor seating, offers stable support for high-traffic public service hall counters, and arranges cleanly in uniform rows for small meeting pod configurations. For procurement planning, note that each chair ships across two cartons, with a per-unit assembly time of 40 minutes. The fixed, non-stackable design means layout plans should account for permanent placement rather than flexible reconfiguration or compact storage, while its consistent dimensions support uniform, orderly seating plans across large spaces. The robust weight capacity and high abrasion resistance of the mesh upholstery make it suitable for consistent high-traffic use without accelerated visible wear.

Black Cantilever Base Mesh Conference Visitor Chair with Fixed Arms Specifications
