Automatic mm / inch conversion · Core engineering specifications

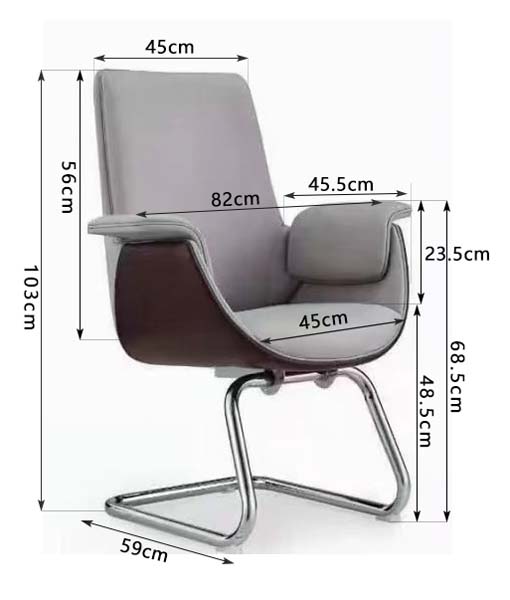

| Overall dimensions | 820 x 590 x 1030 mm | |
|---|---|---|
| Seat width | 450 mm | |
| Seat depth | 450 mm | |
| Seat height from floor | 485 mm | |
| Backrest height above seat | 560 mm | |
| Backrest width | 450 mm | |
| Armrest height above seat | 235 mm | |
| Armrest front-to-back length | 455 mm | |
| Sled base depth | 590 mm | |
| Knee clearance height under seat | 200 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Recommended static load capacity | 181 kg | |
|---|---|---|
| Net weight per chair | 15 kg | |
| Seat foam density | 45 kg/m³ | |
| Backrest foam density | 40 kg/m³ | |
| Foam rebound rate | 45% | |
| Frame durability rating | 100000 flex cycles | |
| Available color variants | 5 | |
| Commercial warranty period | 5 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Sled base frame | Chrome-plated 16mm diameter steel tube, 2mm wall thickness | |
|---|---|---|
| Seat support panel | 12mm thick molded plywood | |
| Seat padding | 60mm thick high-density polyurethane foam | |
| Backrest padding | 50mm thick high-density polyurethane foam | |
| Seat and back upholstery | 1.2mm thick abrasion-resistant PU faux leather | |
| Side shell trim | 3mm thick rigid dark brown polymer shell | |
| Armrest padding | 25mm thick PU-wrapped foam padding | |
| Floor glides | Nylon non-marring glide pads under base feet | |
| Seam stitch pitch | 8 stitches per 30mm | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Seat movement | Fixed non-height-adjustable, non-swivel, non-reclining seat | |
|---|---|---|
| Frame flex behavior | Controlled gentle rear flex under seated load | |
| Armrest function | Fixed wrap-around padded arm supports for forearm rest | |
| Floor protection | Non-abrasive nylon glides prevent floor scratching | |
| Assembly requirement | Knock-down assembly required for seat-shell to base connection | |
| Stacking capability | Non-stacking fixed structure | |
| Upholstery maintenance | Wipe-clean water-resistant PU surface | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Conference room application | Boardroom and meeting room visitor seating, supports short to medium duration meetings | |
|---|---|---|
| Reception area application | Guest seating in office lobbies and reception zones | |
| Training room application | Fixed guest seating in training and seminar spaces | |
| Executive office application | Visitor seating placed across from executive desks | |
| Target user type | Commercial office and institutional buyers, supports adult users up to 181kg | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| Office chair safety requirements | EN 1335:2018 | |
|---|---|---|
| Office chair dimensional requirements | EN 1335:2020 |
US and Canada office-furniture standards
| Lounge and visitor chair performance | ANSI/BIFMA X2015 |
|---|
Standards applicable to China-market projects
| Office chair strength and durability | GB/T 3324 | |
|---|---|---|
| Formaldehyde emission limit | GB 18584 |
This product must meet the following technical requirements: 1. Office chair strength and durability: GB/T 3324; 2. Formaldehyde emission limit: GB 18584; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
