PRODUCT MODULE 01 / 06

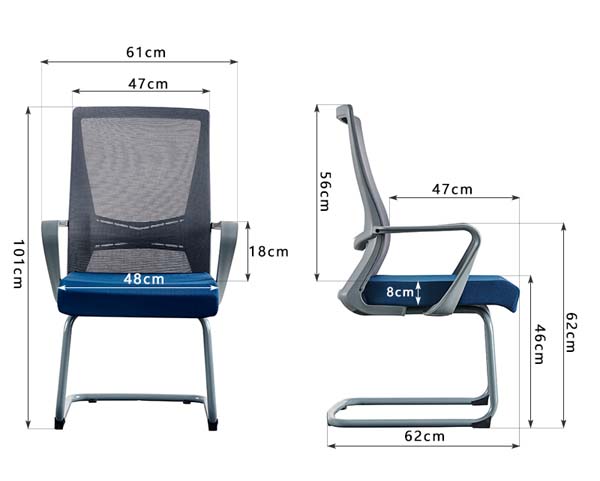

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	610 × 620 × 1010 mm
Seat width	480 mm
Seat depth	470 mm
Seat height from floor	460 mm
Backrest total height	560 mm
Seat cushion thickness	80 mm
Armrest height above seat	180 mm
Sled base front-to-back depth	620 mm
Backrest top width	470 mm
Seat under-frame knee clearance height	460 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static user weight capacity	125 kg
Chair net weight	12 kg
Seat foam density	45 kg/m³
Seat foam rebound rate	55%
Back mesh tensile strength	250 N/5cm
Frame static load capacity	500 kg
Floor glide vertical compression resistance	150 kg per glide
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cantilever sled frame	25mm diameter steel tube, 2.0mm wall thickness, silver-gray powder-coated finish
Backrest support frame	Injection-molded polypropylene structural frame integrated with armrests, matte gray finish
Backrest upholstery	Breathable woven polyester mesh, contoured shape with built-in lumbar support zone
Seat base panel	12mm thick molded plywood support board under seat cushion
Seat cushion padding	High-density polyurethane foam, 80mm thick at front edge
Seat upholstery	Navy blue woven polyester fabric, abrasion resistance 50000 double rubs
Floor contact glides	Injection-molded black nylon non-marring glides, 30mm diameter at frame ends
Structural bracing	Dual steel cross-braces welded under seat between frame sides for torsional rigidity
Seam stitching	Bonded polyester thread, 8 stitches per inch seam pitch along seat fabric edges
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating structure	Fixed non-swivel, non-tilting stationary position for upright conference posture
Lumbar support	Fixed built-in contoured lumbar zone in lower mesh back for natural spine alignment
Arm support	Fixed curved integrated armrests mounted to back frame for stable forearm rest
Floor protection	Non-swivel nylon glides slide smoothly on hard floors without scratching surfaces
Stacking compatibility	Non-stackable design for stable individual placement in meeting room rows
Knee clearance	Full unobstructed open space under seat with no cross-bars in leg contact zone
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Meeting room application	Suitable for fixed placement around conference tables for attendee seating
Reception/waiting area application	Ideal for guest and visitor seating in office lobbies and reception zones
Training room application	Usable for staff training and classroom-style office education spaces
Open office guest seating	Applicable for side seating next to staff desks for short-duration visitor use
Recommended configuration	Deploy in matched sets of 10units per standard 2.4m conference table
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture seating safety applicability	EN 1335:2018
Office furniture stability applicability	EN 1022:2019

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Guest seating static load applicability	ANSI/BIFMA X2017Clause 7
Seating durability cycle applicability	ANSI/BIFMA X2017Clause 11

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair strength and durability applicability	GB/T 3324
Upholstered furniture fabric safety applicability	GB 18401Class B
Metal furniture coating performance applicability	GB/T 2020

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair strength and durability applicability: GB/T 3324;
2. Upholstered furniture fabric safety applicability: GB 18401Class B;
3. Metal furniture coating performance applicability: GB/T 2020;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CC-SLED-MESH-NAV-1010

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CC-SLED-MESH-NAV-1010

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CC-SLED-MESH-NAV-1010Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Fixed Cantilever Sled Base Mesh Back Navy Fabric Seat Conference Office Chair, model CC-SLED-MESH-NAV-1010, is an unbranded stationary cantilever conference seating solution designed for professional workplace environments. Its visual profile features a clean, streamlined silhouette defined by a silver-gray powder-coated steel cantilever frame, matte gray integrated fixed armrests, a contoured breathable mesh backrest, and a tailored navy woven fabric seat, creating a polished, understated look that coordinates with a wide range of office interior palettes. The open sled base structure maintains unobstructed knee clearance under the seat, with no crossbars positioned in the leg contact zone to support comfortable, upright posture during extended meetings. Built for consistent long-term use, the chair’s frame is constructed from 25mm diameter steel tube with 2.0mm wall thickness, reinforced by dual welded steel cross-braces under the seat for torsional rigidity. The backrest uses an injection-molded polypropylene structural frame integrated with armrests, upholstered in woven polyester mesh shaped with a fixed contoured lumbar support zone to encourage natural spine alignment. The seat rests on a 12mm thick molded plywood support board, padded with 80mm thick high-density polyurethane foam at the front edge, and upholstered in navy woven polyester fabric tested to 50000 double rubs of abrasion resistance. Black injection-molded nylon non-marring glides cap the frame ends to slide smoothly across hard floor surfaces without scratching, while the fixed non-swivel, non-tilting structure supports a 125° recline with three suggested lock positions for flexible upright positioning. The chair supports a maximum static user weight of 125 kg, with a frame static load capacity of 500 kg and per-glide vertical compression resistance of 150 kg. This model is suited for fixed placement around conference tables, with a recommended configuration of 10 matched units per standard 2.4m conference table. It also functions well as guest seating in office lobbies and reception waiting areas, staff seating in training and classroom-style office education spaces, and short-duration visitor seating adjacent to open-office workstations. For procurement planning, note the chair is non-stackable, ships as one set across two cartons with a packaged gross weight of 23 kg per set, requires 40 minutes of assembly per unit, and allows a loading quantity of 135 sets in a 20GP container at 85% space utilization.

Fixed Cantilever Sled Base Mesh Back Navy Fabric Seat Conference Office Chair Specifications
