PRODUCT MODULE 01 / 06

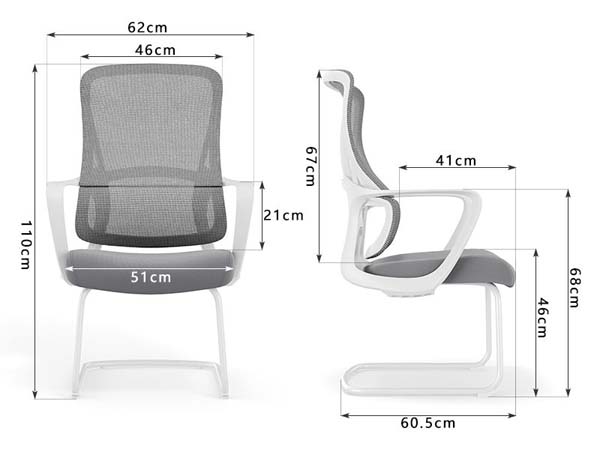

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 605 × 1100 mm
Seat width	510 mm
Seat depth	410 mm
Seat height from floor	460 mm
Total backrest height	670 mm
Lumbar support zone height	210 mm
Backrest width	460 mm
Armrest height from floor	680 mm
Sled base front-to-rear length	605 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load capacity	136 kg
Net weight per unit	13 kg
Seat foam density	65 kg/m³
Seat foam thickness	40 mm
Mesh abrasion resistance	50000 cycles
Frame tube diameter	25 mm
Seam stitch pitch	8 mm
Standard warranty period	5 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cantilever sled frame	25mm diameter steel tube with white powder-coated finish
Backrest support frame	White molded PP outer shell with internal structural ribs
Backrest upholstery	Tensioned grey breathable polyester mesh
Seat internal pan	12mm thick molded plywood core
Seat padding	40mm thick high-density polyurethane foam
Seat upholstery	Grey breathable mesh fabric over foam pad
Armrests	Integrated white molded PP curved armrests connected to frame
Floor glides	Injection-molded nylon non-marking glides at sled base ends
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating structure	Fixed static non-swivel seating with no height, tilt or recline adjustment
Back support	Contoured mesh back with dedicated 210mm tall lumbar support zone
Seat comfort	Waterfall-front contoured padded seat to reduce leg pressure
Arm support	Fixed 220mm height above seat integrated loop armrests for forearm support
Base stability	Continuous sled base design for even weight distribution on hard floors
Floor protection	Smooth nylon glides to prevent floor scuffing without rolling movement
Ventilation	Full mesh back and seat surface to allow air circulation during extended seating
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Meeting room seating	Fixed position guest seating around conference tables for formal meetings
Reception/waiting area use	Durable, breathable seating for visitor waiting zones in office lobbies
Training room seating	Lightweight fixed seating for corporate training and seminar rooms
Open office guest seating	Side seating for workstation guest positions in open plan offices
Healthcare/public waiting areas	Easy-to-clean mesh surface suitable for high-traffic public waiting spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety requirement	EN 1335:2009
Contract non-domestic seating	EN 16139:2013 Level 2
Upholstery flammability	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair performance standard	ANSI/BIFMA X2017
Static load test requirement	ANSI/BIFMA X5.1 Clause 5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office seating structural requirement	GB/T 3326
Upholstered furniture durability	GB/T 29894
Formaldehyde emission limit	GB 18580

Standardized tender description text

This product must meet the following technical requirements:
1. Office seating structural requirement: GB/T 3326;
2. Upholstered furniture durability: GB/T 29894;
3. Formaldehyde emission limit: GB 18580;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CB-MESH-WH-110H

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CB-MESH-WH-110H

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CB-MESH-WH-110HOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Ergonomic Mesh Back Cantilever Visitor Office Chair, model CB-MESH-WH-110H, delivers streamlined, functional fixed seating designed for consistent use across commercial and select residential spaces. Its visual profile features a crisp white structural frame paired with cool grey breathable mesh upholstery across both the backrest and padded seat, creating a clean, modern aesthetic that complements neutral and contemporary interior palettes. The continuous cantilever sled base forms an unbroken, sleek lower silhouette, with integrated curved armrests that flow seamlessly from the upper frame to create a cohesive, uncluttered form suitable for arranged, neat seating layouts. Construction balances durable structural components with user-focused comfort. The cantilever base uses steel tube with a white powder-coated finish, fitted with non-marking injection-molded nylon glides at each contact point. The backrest uses a white molded PP outer shell reinforced with internal structural ribs, upholstered with tensioned grey breathable polyester mesh shaped to provide a dedicated lumbar support zone. The seat is built around a molded plywood core, topped with thick high-density polyurethane foam and wrapped in matching grey breathable mesh, finished with a waterfall front edge. Integrated white molded PP armrests are fixed in place to provide steady forearm support. As a static, non-swivel seating option with no height, tilt or recline adjustment, the chair prioritizes stable, low-maintenance performance. The full mesh back and seat surfaces allow continuous air circulation to support comfort during extended seated periods, while the contoured seat edge reduces pressure on the backs of legs. The sled base distributes weight evenly across hard floor surfaces, and the smooth glides prevent scuffing without enabling unwanted rolling movement. This chair is well suited for fixed-position guest seating around conference room tables, visitor zones in office reception and waiting areas, corporate training and seminar rooms, and guest side positions alongside open office workstations. It also works effectively for high-traffic public waiting spaces, including healthcare reception areas, thanks to its easy-to-clean mesh surface. Procurement teams should note that each unit ships across two cartons, with assembly required, and plan for relevant shipping and storage allocations based on packaged unit dimensions and weight. The fixed, non-adjustable design makes this chair ideal for standardized seating layouts where consistent positioning, easy maintenance, and approachable ergonomic support are core priorities, pairing well with executive desks for formal guest arrangements. A 136 kg static load capacity supports broad suitability for general visitor use, and the mesh material is engineered to withstand repeated use over time.
