PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

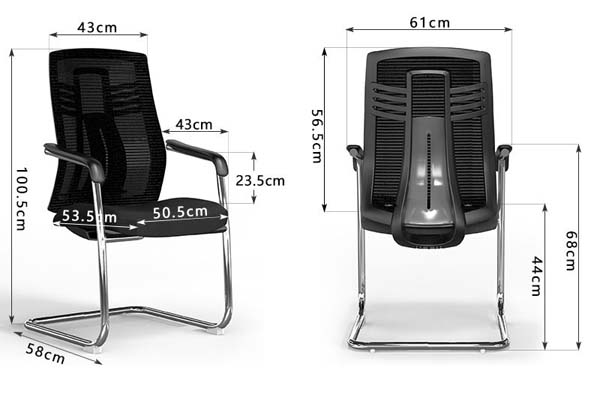

Overall dimensions (W × D × H)	610 × 580 × 1005 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended maximum user weight	120 kg
Assembled product net weight	13 kg
Static vertical seat load rating	150 kg
Recommended daily usage duration	8 hours
Seat cushion foam density	45 kg/m³
Mesh back tensile strength	300 N/50mm
Sled base leg static side load rating	80 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support frame	Reinforced black polypropylene
Backrest upholstery	Tensioned breathable polyester mesh
Seat cushion core	Molded high-resilience polyurethane foam
Seat upholstery	Woven black polyester fabric
Armrest pads	Injection-molded soft polyurethane padding
Armrest supports and frame	22mm diameter chrome-plated cold-rolled steel tubing
Sled base feet	Injection-molded non-slip polypropylene glides
Lumbar support structure	Integrated molded PP ergonomic contour
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Frame design	Fixed cantilever sled base with no swivel or tilt function
Back support	Contoured lumbar support built into mesh back
Armrest design	Fixed height padded armrests for forearm support
Floor protection	Non-marking glides prevent floor scratching
Ventilation	Open mesh back allows air circulation for extended sitting
Stackability	Non-stackable fixed frame design
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate conference rooms	Formal fixed seating for boardroom and meeting spaces, matching executive table heights
Office visitor and reception areas	Welcoming seating for guests waiting or meeting with staff in reception zones
Training room seating	Durable non-rolling seating suitable for multi-user training and workshop spaces
Open plan workstation guest seating	Side seating for short collaborative discussions at individual workstations
Government and institutional meeting spaces	Robust formal seating suitable for high-traffic public sector meeting areas
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture strength stability standard	EN 1335:2018
Office furniture surface durability standard	EN 12720:2013

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.1 General-Purpose Office Chairs

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair structural strength requirement	GB/T 3326
Office chair safety requirement	GB 28007

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair structural strength requirement: GB/T 3326;
2. Office chair safety requirement: GB 28007;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-CNT-MSH-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-CNT-MSH-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-CNT-MSH-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Ergonomic Mesh Back Cantilever Conference Office Chair (model OFC-CNT-MSH-001) is an unbranded office visitor and conference seating solution defined by a clean, streamlined silhouette tailored to formal and semi-formal work environments. Its visual profile features a taut open mesh back paired with a tailored upholstered seat, supported by a polished chrome-plated cantilever sled frame that creates a light, uncluttered aesthetic without bulky adjustment mechanisms. Fixed padded armrests sit level with the seat frame, maintaining a consistent, polished look suitable for coordinated space layouts.
Construction balances durable structural components with user-centric comfort materials. The backrest uses a reinforced black polypropylene support frame wrapped in tensioned breathable polyester mesh, with an integrated molded polypropylene ergonomic lumbar contour built into its structure. The seat features a molded high-resilience polyurethane foam core wrapped in woven black polyester fabric, supported by a rigid internal bent plywood or equivalent support board. The 22mm diameter chrome-plated cold-rolled steel tubing forms the cantilever frame and armrest supports, fitted with injection-molded soft polyurethane armrest pads and non-slip, non-marking polypropylene glides at the sled base feet.
Functional design prioritizes reliable, low-maintenance use for shared spaces. The fixed cantilever frame offers no swivel or tilt function, with a 125° recline angle and three suggested lock positions for supported seating postures. The open mesh back enables consistent air circulation to reduce heat buildup during extended sitting, while the contoured lumbar zone delivers targeted back support. Fixed height armrests provide stable forearm support, and non-marking glides prevent floor scratching across hard and soft flooring types. The chair supports 8 hours of daily recommended use, with a rated maximum user weight of 120 kg.
This chair is suited to a range of commercial and high-traffic spaces, including corporate conference rooms and boardrooms where it pairs with standard executive table heights, office visitor and reception areas for guest seating, multi-user training rooms and workshop spaces, open plan workstations for short collaborative discussions, and government or institutional meeting areas. It is not stackable, requiring dedicated floor space for storage when not in use. Procurement teams should note that each unit ships across two cartons, with an assembly time of 40 minutes per set, and plan loading and storage around the packaged volume and gross weight to align with project timelines and space constraints. The fixed non-height-adjustable armrests and cantilever design should be evaluated against specific space layout requirements and accessibility needs prior to purchase.

Ergonomic Mesh Back Cantilever Conference Office Chair Specifications
