Product supplierBlack Mesh Back Cantilever Conference Visitor Chair with Integrated Coat Hanger, Elastic black polyester mesh
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

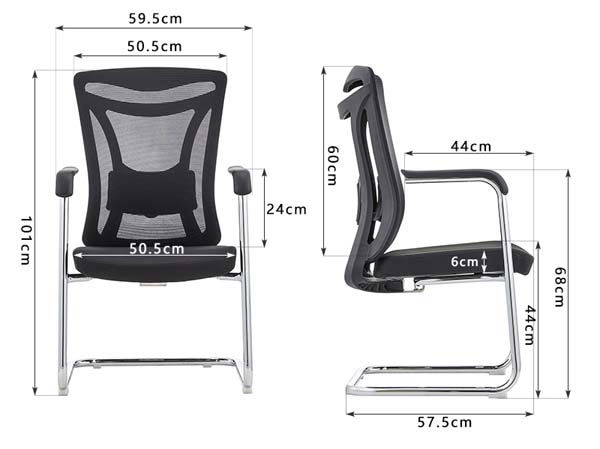

Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 595 × 575 × 1010 mm | |
|---|---|---|
| Seat width | 505 mm | |
| Seat depth | 440 mm | |
| Seat height from floor | 440 mm | |
| Backrest height | 600 mm | |
| Seat cushion thickness | 60 mm | |
| Armrest height above seat | 240 mm | |
| Total arm height from floor | 680 mm | |
| Sled base width | 505 mm | |
| Sled base front-to-rear length | 575 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net chair weight | 7 kg | |
|---|---|---|
| Recommended static user weight capacity | 136 kg | |
| Seat foam density | 65 kg/m³ | |
| Seat foam rebound rate | 42% | |
| Back mesh tensile strength | 320 N/5cm | |
| Cantilever frame static load rating | 408 kg | |
| Warranty period | 1 year | |
| Available stock color count | 1 | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest upholstery | Elastic black polyester mesh | |
|---|---|---|
| Backrest internal frame | 30% glass-fiber reinforced PP (PP+GF30) | |
| Seat cushion core | Molded high-density polyurethane foam | |
| Seat support panel | 12mm thick engineered wood | |
| Armrests | Fixed curved steel supports with black padded PP arm caps | |
| Cantilever frame | Chrome-plated cold-rolled steel tubing | |
| Floor glides | Injection-molded PP with anti-scratch felt pads | |
| Seat upholstery fabric | Woven black polyester fabric | |
| Backrest lumbar support | Molded fixed PP support panel | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated garment hanger | Curved notch cutout at top of backrest | |
|---|---|---|
| Seating movement | No swivel, tilt or height adjustment functions | |
| Backrest flex | Tensioned mesh provides 12mm lumbar deflection under seated load | |
| Arm support | Fixed height armrests positioned 240mm above seat | |
| Floor contact | Four fixed PP glides evenly distribute weight | |
| Cantilever flex | Curved steel frame provides 8mm vertical deflection under load | |
| Stacking capability | Non-stacking design with fixed arm geometry | |
| Maintenance access | Surface-cleanable mesh and fabric upholstery | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Conference room seating | Fixed cantilever base for aligned row arrangement around meeting tables | |
|---|---|---|
| Reception and waiting areas | Breathable mesh back suits extended visitor waiting periods | |
| Training room seating | Lightweight construction allows easy repositioning for training sessions | |
| Open office guest seating | Compact 595mm width fits tight desk-side guest positions without overhang | |
| Government and public service halls | Durable steel frame meets high-traffic public seating requirements | |
| Staff breakout areas | Padded seat and armrests support short-term relaxation during breaks | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013 Level 2 | Non-domestic seating strength, durability and stability requirement for visitor chairs | |
|---|---|---|
| EN 1022:2018 | Seating stability test method for forward, rearward and side loading conditions |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 Clause 5 | General purpose office chair static load test for back, seat and arm components |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
