Name: Black Mesh Back Cantilever Conference Visitor Office Chair
Brand: YUXIANG
SKU: BTM1UH

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

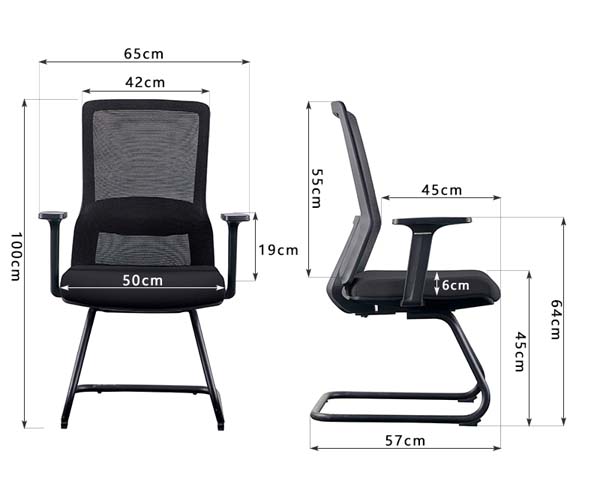

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 570 × 1000 mm
Seat width	500 mm
Seat depth	450 mm
Seat height from floor	450 mm
Backrest total height	550 mm
Backrest width	420 mm
Seat cushion thickness	60 mm
Armrest height above seat	190 mm
Total armrest height from floor	640 mm
Sled base footprint width	520 mm
Knee clearance under seat	360 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	20 kg
Recommended static load capacity	200 kg
Seat foam density	35 kg/m³
Seat foam rebound rate	45%
Mesh upholstery abrasion resistance	50000 cycles
Seam stitch pitch	8 stitches per 30mm
Floor glide static load rating	110 kg per glide
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable polyester mesh with PP reinforced frame
Seat cushion core	12mm plywood support board with high-density foam padding
Seat surface upholstery	Wear-resistant black fabric fabric over foam
Frame and base	1.5mm thick powder-coated black steel cantilever sled frame
Armrest construction	Fixed PP armrest caps mounted to steel support brackets
Floor protection glides	Injection-molded non-marking PP plastic feet at frame ends
Frame finish	Matte black electrostatic powder coating
Lumbar support zone	Tensioned lower mesh panel integrated into backrest
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mobility	Stationary fixed position with no casters, swivel, or gas lift
Recline function	Fixed 100-degree ergonomic backrest angle with no tilt adjustment
Armrest support	Fixed rigid armrests providing stable upper body support for meeting use
Lumbar support	Contoured mesh lumbar zone provides passive lower back support
Floor protection	Integrated plastic glides prevent floor scratching during repositioning
Stacking capability	Non-stacking design optimized for conference room fixed placement
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Fixed-position seating for boardrooms, meeting rooms, and training spaces
Reception and guest areas	Professional visitor seating for office lobbies and waiting areas
Open office visitor seating	Guest seating positioned at staff workstations for short meetings
Training room seating	Durable fixed seating for long-duration training sessions
Recommended configuration	Deploy in sets of 6around standard conference tables
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applicable standard for office chair dimensional and safety requirements
EN 1335-2:2018	Applicable standard for office chair strength, durability and stability
EN 1022:2019	Applicable standard for domestic and contract seating stability requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applicable standard for general-purpose office chair performance requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applicable standard for office furniture dimensional accuracy and stability
GB/T 10357.3-2013	Applicable standard for chair mechanical strength and durability testing
GB 18584-2001	Applicable standard for formaldehyde emission limits for wooden furniture components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applicable standard for office furniture dimensional accuracy and stability;
2. GB/T 10357.3-2013: Applicable standard for chair mechanical strength and durability testing;
3. GB 18584-2001: Applicable standard for formaldehyde emission limits for wooden furniture components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MESH-CONF-SLED-650

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MESH-CONF-SLED-650

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MESH-CONF-SLED-650Open Export Tool

Quick Actions

Post an RFQ

Product Description

The YUXIANG MESH-CONF-SLED-650 Black Mesh Back Cantilever Conference Visitor Office Chair delivers a streamlined, professional seating solution tailored for structured office and public gathering spaces. Its visual profile features a clean, linear cantilever sled base finished in matte black electrostatic powder coating, paired with a slim breathable mesh backrest and tailored black fabric seat, creating a understated, cohesive aesthetic that aligns with contemporary commercial interior design. The fixed, upright silhouette presents a formal, polished look suited to professional environments, with fixed PP armrests positioned to align neatly with standard table heights for unobtrusive placement. Constructed for long-term commercial use, the chair integrates a 1.5mm thick powder-coated black steel frame for structural stability. The backrest uses breathable polyester mesh set within a PP reinforced frame, with an integrated tensioned lower mesh panel to form a contoured lumbar support zone. The seat assembly features a bent plywood support board, topped with high-density foam padded to 60mm thickness with a 35 kg/m³ density and 45% rebound rate, upholstered in wear-resistant black fabric. Stitching is set at 8 stitches per 30mm for durable seam construction, while injection-molded non-marking PP glides cap frame ends to protect floor surfaces. Fixed PP armrest caps mount to steel support brackets for rigid, long-lasting arm support. As a stationary, non-stacking seating unit, the chair operates without casters, swivel mechanisms, or gas lift adjustments, holding a fixed 100-degree ergonomic backrest angle to support upright, focused postures during meetings and visits. The tensioned mesh lumbar zone provides passive lower back support, while the rigid fixed armrests offer stable upper body support for attendees. The integrated glides allow gentle repositioning without scratching hard flooring surfaces, and the chair supports a recommended static load capacity of 200 kg, with mesh upholstery rated for 50000 abrasion cycles for extended service life. This chair is ideally suited for boardrooms, meeting rooms, training spaces, office lobbies, waiting areas, and guest seating positions adjacent to open office workstations for short impromptu meetings. It is optimized for fixed placement, with a recommended deployment of 6 chairs around standard conference tables, paired effectively with 2.4 m executive desks. For procurement planning, note each chair ships across 2 cartons with a packaged gross weight of 23 kg per set, requiring 40 minutes of assembly per unit. A 20GP container can hold 135 sets at 85% space utilization, supporting bulk ordering for large fit-out projects. The non-stacking design means storage space for unused units should be planned in advance, and the fixed configuration is not suited to spaces requiring flexible, reconfigurable seating with adjustable recline or mobile movement. Key dimensional specifications include an overall footprint of 650 x 570 x 1000 mm, a 500 mm wide, 450 mm deep seat set at 450 mm above the floor, and armrests positioned 190 mm above the seat surface to align with standard table heights.

Black Mesh Back Cantilever Conference Visitor Office Chair Specifications
