Name: Fixed Cantilever Sled Base Mesh Back Conference Office Chair
Brand: YUXIANG
SKU: DZZP5L

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

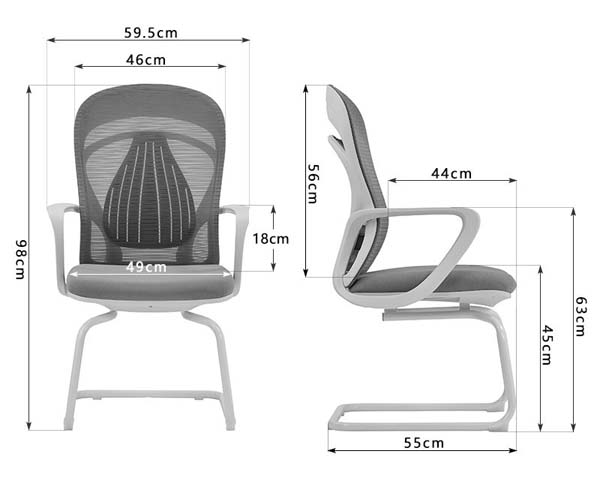

Overall dimensions (W × D × H)	595 × 550 × 980 mm
Seat dimensions	490 x 440 x 450 mm
Backrest height	560 mm
Armrest height above seat	180 mm
Backrest internal width	460 mm
Sled base front-to-rear length	550 mm
Armrest-to-armrest outer width	595 mm
Armrest loop depth	440 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net chair weight	9.4 kg
Recommended static user load	200 kg
Seat foam density	40 kg/m³
Seat foam resilience	35%
Seat foam compression set	6%
Mesh fabric abrasion resistance	50000 cycles
Seam stitch pitch	8 stitches per 30 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Tensioned breathable polyester mesh
Seat cushion fill	High-density polyurethane foam
Seat support board	12 mm thick molded plywood
Frame and sled base	1.5 mm thick steel with white electrostatic powder coat
Armrests	White impact-resistant polypropylene fixed loop arms
Sled base glides	Injection-molded non-marking nylon floor glides
Backrest frame insert	White molded PP lumbar support structure
Mesh edge binding	Woven polyester edge trim
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base function	Fixed cantilever sled base with no casters, no rotation, no height adjustment
Backrest function	Fixed ergonomic S-curve back with integrated structured lumbar support
Armrest function	Fixed loop armrests providing stable upper body support during meetings
Seat function	Fixed padded seat with slight front waterfall edge to reduce leg pressure
Floor compatibility	Non-marking glides suitable for hard floors and low-pile carpet
Assembly requirement	Knock-down assembly required for frame, seat and back components
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Suitable for meeting rooms as fixed guest/attendee seating
Reception/waiting area	Suitable for office reception and visitor waiting spaces
Open office guest seating	Suitable for placement at side desks for short-term guest use
Training room seating	Suitable for training rooms as fixed attendee seating
Color matching recommendation	White frame/grey mesh variant coordinates with light office interior schemes
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety recommendation	EN 1335:2009
Office chair dimensions recommendation	EN 1335:2000
Fabric flame retardancy recommendation	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair durability recommendation	ANSI/BIFMA X2017
Static load recommendation	ANSI/BIFMA X5.1 Clause 5
Stability recommendation	ANSI/BIFMA X5.1 Clause 7

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstery safety recommendation	GB 18401Category B
Foam performance recommendation	GB/T 10802
Flame retardancy recommendation	GB 17927.1

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstery safety recommendation: GB 18401Category B;
2. Foam performance recommendation: GB/T 10802;
3. Flame retardancy recommendation: GB 17927.1;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CFM-001-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CFM-001-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CFM-001-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The YUXIANG Fixed Cantilever Sled Base Mesh Back Conference Office Chair, model CFM-001-WG, delivers a clean, streamlined seating solution designed for consistent use across professional and select residential settings. Its open, linear visual profile is anchored by a continuous sled base frame finished in crisp white, paired with a structured mesh back and fixed loop armrests that align neatly with the frame’s uniform finish, creating a cohesive, uncluttered silhouette that fits modern, light-toned interior palettes when specified in the white frame with grey mesh configuration.
Built for long-term durability, the chair features a powder-coated steel frame and sled base, paired with impact-resistant polypropylene fixed armrests and non-marking injection-molded nylon glides to protect contact surfaces. The backrest uses tensioned breathable polyester mesh secured with woven polyester edge trim, with an integrated molded polypropylene lumbar support structure formed to an ergonomic S-curve. The padded seat is constructed with high-density polyurethane foam set on a rigid molded plywood support board, finished with a subtle waterfall front edge to reduce pressure on the backs of the legs during extended seated sessions. All upholstery and structural connections use tightly spaced stitching to hold components securely through regular use.
As a fixed-position seating option, the chair operates without casters, swivel rotation, or seat height adjustment, offering stable, consistent support; its backrest reclines to a work-appropriate angle with selectable lock positions for customized comfort during long discussions or presentations. The fixed armrests provide steady upper body support, while the ventilated mesh back maintains air flow to keep users comfortable even during lengthy meetings. Its non-marking glides perform reliably on both hard flooring surfaces and low-pile carpet, eliminating the risk of scuffs or floor damage during repositioning.
This chair is well suited for conference room attendee and guest seating, office reception and visitor waiting areas, open office side desk guest placement, and training room fixed seating. It also pairs effectively with 2.4 m executive desks for formal meeting setups, and works in flexible home office guest zones when a polished, professional aesthetic is desired.
Procurement teams should note the chair ships knock-down for cost-effective transport, with assembly of frame, seat and back components required per unit; packaged sets ship across two cartons for ease of handling. The static load rating supports broad user suitability, and standard mesh abrasion performance supports high-traffic deployment without premature visible wear. The 20GP container loading capacity supports efficient bulk ordering for large-scale office fit-outs, while the neutral white and grey finish coordinates easily with most existing commercial furniture palettes.

Fixed Cantilever Sled Base Mesh Back Conference Office Chair Specifications
