Name: Mid-Back Mesh Cantilever Office Guest Chair with Fixed Arms
Brand: YUXIANG
SKU: E2SBZW

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

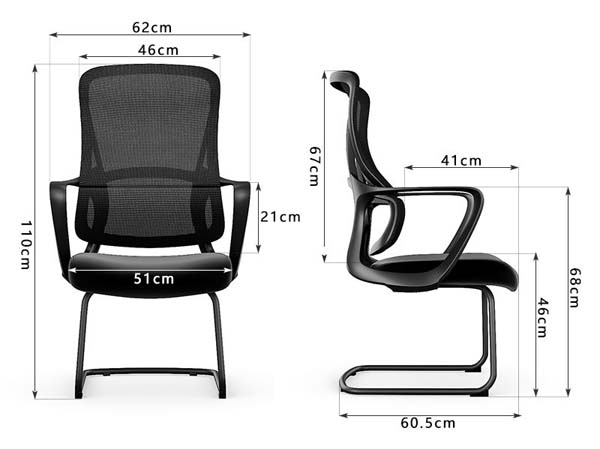

Overall dimensions (W × D × H)	620 × 605 × 1100 mm
Backrest width	460 mm
Backrest height above seat	670 mm
Seat width	510 mm
Seat depth	410 mm
Seat height from floor	460 mm
Armrest height above floor	680 mm
Armrest height above seat	210 mm
Sled base footprint length	605 mm
Sled base tube diameter	22 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per unit	13 kg
Maximum recommended static load	125 kg
Seat foam thickness	50 mm
Seat foam density	45 kg/m³
Seat foam rebound rate	45%
Mesh abrasion resistance	50000 cycles
Backrest frame static load	90 kg
Sled base floor glide contact area per foot	800 mm²
Standard available color count	3
Commercial use warranty period	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable black polyester mesh
Seat upholstery	Black woven fabric surface over foam cushion
Seat cushion core	High-resilience polyurethane foam
Armrests	Injection-molded black polypropylene fixed loop arms
Cantilever frame	1.5mm thick powder-coated black cold-rolled steel tubing
Floor glides	Injection-molded nylon non-marring pads
Seat support board	12mm thick molded plywood under cushion
Mesh attachment hardware	Zinc-plated steel screws and clips
Frame connection welds	Fully welded steel joints at arm and base junctions
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base mobility	Stationary non-wheeled sled base
Seating adjustment	No height, tilt or swivel adjustment
Arm support	Fixed closed-loop armrests
Back support	Contoured lumbar curve in mesh back
Flex comfort	Controlled slight flex in cantilever frame
Floor protection	Replaceable nylon glides at base contact points
Stacking compatibility	Non-stackable fixed frame design
Seat drainage/ventilation	Breathable mesh back and fabric seat
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Suitable for meeting room side chairs matching executive desks and conference tables
Reception and waiting areas	Appropriate for lobby and visitor waiting spaces
Staff training rooms	Ideal for multi-seat training and classroom office setups
Open office guest seating	Suited for placement beside workstations for visitor seating
Public institution waiting zones	Durable for government, bank and service hall waiting areas
Home office additional seating	Usable as supplementary home workroom guest seating
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applicable for office chair dimensional and safety performance requirements
EN 1335-2:2018	Applicable for office chair structural strength and stability test methods
EN 1022:2018	Applicable for seating stability requirements for non-domestic use chairs

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applicable for general-purpose office chair safety and durability test standards
ANSI/BIFMA e3-2019	Applicable for furniture sustainability and low-emission material evaluation criteria

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applicable for office furniture seating dimension tolerances and measurement methods
GB/T 10357.3-2013	Applicable for chair strength and durability mechanical performance testing
GB 18584-2001	Applicable for indoor furniture formaldehyde emission limit requirements for wooden components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applicable for office furniture seating dimension tolerances and measurement methods;
2. GB/T 10357.3-2013: Applicable for chair strength and durability mechanical performance testing;
3. GB 18584-2001: Applicable for indoor furniture formaldehyde emission limit requirements for wooden components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MESH-CANT-GUEST-1100

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MESH-CANT-GUEST-1100

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MESH-CANT-GUEST-1100Open Export Tool

Quick Actions

Post an RFQ

Product Description

The YUXIANG Mid-Back Mesh Cantilever Office Guest Chair (model MESH-CANT-GUEST-1100) presents a streamlined, professional seating solution defined by its unified black finish and clean cantilever sled base layout. Fixed closed-loop armrests frame the contoured mesh backrest and padded seat, creating a cohesive, uncluttered silhouette that complements both formal and casual workspace aesthetics without protruding adjustment mechanisms or rolling casters. The chair’s overall proportions are calibrated to align with standard desk and table heights for consistent, approachable guest positioning. Construction balances durability and seated comfort through purpose-selected materials. The backrest uses breathable black polyester mesh formed with a contoured lumbar curve, attached to the frame with zinc-plated steel screws and clips. The seat pairs a black woven fabric surface with a high-resilience polyurethane foam cushion, supported by a molded plywood board beneath the padding. Fixed loop armrests are formed from injection-molded black polypropylene, while the cantilever frame is built from powder-coated black cold-rolled steel tubing with fully welded joints at arm and base connections. Non-marring, replaceable injection-molded nylon glides cap the base contact points to protect floor surfaces, and the frame delivers controlled slight flex to add gentle give during seated use. The chair holds a static form with no height, tilt, or swivel adjustment, and uses a stationary non-wheeled base that does not support stacking. This model fits a broad range of commercial and residential settings. It works well as side seating in conference rooms aligned with executive desks and conference tables, as visitor seating in lobbies, reception areas, and public institution waiting zones including government offices, banks, and service halls. It is also suited for multi-seat training room configurations, open office workstation guest placement, and supplementary seating in home office workspaces. Procurement teams should note that each unit ships across two cartons, with an assembly time per set of 40 minutes. The fixed non-stackable design requires planned storage and transport allocation, with published loading metrics available for full container order planning. Weight and material specifications support routine high-traffic guest use, making the chair a practical choice for spaces requiring consistent, low-maintenance visitor seating.

Mid-Back Mesh Cantilever Office Guest Chair with Fixed Arms Specifications
