PRODUCT MODULE 01 / 06

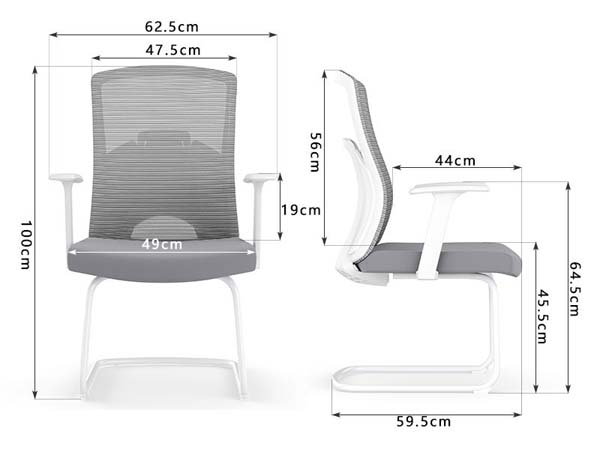

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	625 × 595 × 1000 mm
Seat width	490 mm
Backrest width	475 mm
Seat height from floor	455 mm
Backrest height	560 mm
Armrest height from floor	645 mm
Armrest height above seat	190 mm
Armrest depth projection	440 mm
Cantilever steel tube diameter	25 mm
Seat cushion depth	440 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load capacity	136 kg
Net product weight	14 kg
Seat foam density	65 kg/m³
Seat foam thickness	30 mm
Mesh Martindale abrasion resistance	50000 cycles
Backrest static load rating	77 kg
Seam stitch pitch	8 stitches per inch
Warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cantilever base frame	White powder-coated 25mm diameter steel tube
Back structural frame	White 30% glass fiber reinforced polypropylene
Backrest upholstery	Grey breathable woven polyester mesh
Seat support shell	Injection molded polypropylene
Seat cushion padding	High-density molded polyurethane foam
Seat upholstery	Grey abrasion-resistant polyester fabric
Fixed armrests	White injection molded polypropylene T-shaped pads
Floor contact glides	Black non-marking polypropylene glides
Frame fasteners	Zinc-plated steel bolts and lock nuts
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base mobility	Fixed non-rolling cantilever sled base
Rotation function	Fixed non-swivel seat
Height adjustment	Fixed seat height, no gas lift mechanism
Recline function	Fixed upright back angle, no tilt mechanism
Armrest adjustment	Fixed position T-armrests, no height/depth adjustment
Lumbar support	Contoured built-in mesh lumbar curve
Floor protection	Integrated PP glides prevent hard floor scratching
Stacking capability	Non-stackable frame design
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Fits standard 750mm height conference tables for meeting attendee use
Visitor/reception seating	Provides professional guest seating in office reception and waiting areas
Training room seating	Suitable for fixed-position training and seminar room layouts
Home office guest seating	Matches light-colored modern home office decor for extra visitor seats
Open plan collaboration zones	Provides durable seating for informal team meeting and breakout areas
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013 Level 2	Applies to strength/durability for non-domestic contract visitor seating
EN 1022:2018	Applies to seating stability testing for stationary office chairs
EN 1335-2:2018	Applies to safety requirements for office work seating components

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applies to general purpose office chair safety and durability requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to office furniture dimensional accuracy testing for seating products
GB/T 10357.3-2013	Applies to mechanical strength and durability testing for office chairs
GB 18584-2001	Applies to formaldehyde emission limits for wooden and upholstered furniture components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to office furniture dimensional accuracy testing for seating products;
2. GB/T 10357.3-2013: Applies to mechanical strength and durability testing for office chairs;
3. GB 18584-2001: Applies to formaldehyde emission limits for wooden and upholstered furniture components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CF-CAN-W625-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CF-CAN-W625-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CF-CAN-W625-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The White Frame Grey Mesh Back Cantilever Conference Chair, model CF-CAN-W625-GRY, is an unbranded fixed-position seating solution designed for consistent, professional use across commercial and residential spaces. Its visual profile features a crisp white structural frame paired with a neutral grey seat and backrest, creating a clean, modern aesthetic that complements light-toned contemporary interior schemes. The cantilever sled base forms a continuous, open lower silhouette, while T-shaped fixed armrests align with the white frame finish for a cohesive, uncluttered look that supports neat, uniform layout arrangements in shared spaces. Construction prioritizes durable, purpose-matched materials: the frame uses 25mm diameter steel tube finished in white powder coating, with zinc-plated steel bolts and lock nuts for secure structural connections. The backrest assembly includes a white 30% glass fiber reinforced polypropylene structural frame, topped with grey breathable woven polyester mesh formed with a contoured built-in lumbar curve for gentle postural support. The seat rests on an injection molded polypropylene support shell, padded with high-density molded polyurethane foam and upholstered in grey abrasion-resistant polyester fabric. Fixed white injection molded polypropylene T-armrests attach directly to the frame, and black non-marking polypropylene glides cap the base ends to protect hard flooring surfaces from scratches. The chair carries a recommended static load capacity of 136 kg, with mesh tested to 50000 Martindale abrasion cycles for extended wear resistance. As a fixed-position seat, the chair includes no swivel, height adjustment, or recline mechanisms, with a set upright back angle and fixed armrest positions to maintain consistent, upright support for meeting and waiting scenarios. It pairs with standard 750mm height conference tables and 2.4m executive desks, making it suitable for conference room attendee seating, office reception and waiting areas, fixed-layout training and seminar rooms, open plan collaboration and breakout zones, and modern home office guest seating setups. It integrates seamlessly into both formal and casual shared spaces without disrupting visual flow. For procurement planning, each chair ships across two cartons, with a reference assembly time of 40 minutes per unit and a packaged gross weight of 23 kg per set. At 85% space utilization, a 20GP shipping container holds 135 sets, supporting efficient bulk ordering for large-scale fit-out projects. The fixed non-adjustable design means specifiers should confirm seat and armrest dimensions align with intended user needs and existing furniture heights prior to purchase.

White Frame Grey Mesh Back Cantilever Conference Chair Specifications
