Automatic mm / inch conversion · Core engineering specifications

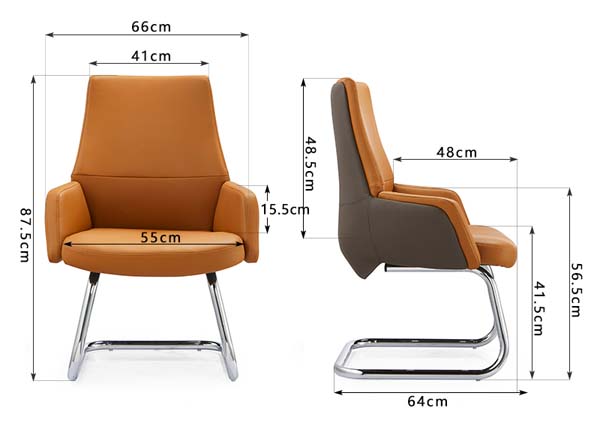

| Overall dimensions | 660 x 640 x 875 mm | |
|---|---|---|
| Seat width | 550 mm | |
| Seat depth | 480 mm | |
| Seat height from floor | 415 mm | |
| Backrest height above seat | 485 mm | |
| Armrest height above seat | 155 mm | |
| Backrest upper width | 410 mm | |
| Rear back panel height from base | 565 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net chair weight | 20 kg | |
|---|---|---|
| Recommended static user load | 160 kg | |
| Seat foam density | 40D | |
| Seat foam thickness | 80 mm | |
| Back foam thickness | 50 mm | |
| Upholstery abrasion rating | 50000 cycles | |
| Sled base static load capacity | 500 kg | |
| Warranty period for normal office use | 10 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Front upholstery (seat/back/arms front) | Camel tan PU leather | |
|---|---|---|
| Rear upholstery (back panel) | Charcoal dark grey PU leather | |
| Seat internal substrate | 18mm thick plywood | |
| Back internal frame | 1.5mm thick welded steel | |
| Padding material | High-resilience polyurethane foam | |
| Cantilever base structure | Polished chrome-plated steel tube | |
| Seam construction | Precision stitched 8mm pitch seams | |
| Base floor contact points | Non-marking plastic glide pads | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
| Base type | Fixed cantilever chrome sled base | |
|---|---|---|
| Recline function | Fixed upright backrest angle | |
| Height adjustment | Fixed seat height at 415mm | |
| Armrest design | Integrated curved padded armrests | |
| Mobility | Stationary placement with floor glides | |
| Upholstery maintenance | Wipe-clean PU surface | |
| Seat comfort feature | Cantilever flex under load | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Meeting room seating | Formal upright support suitable for conference table placement during discussions | |
|---|---|---|
| Reception/waiting area | Professional two-tone aesthetic fits corporate lobbies and visitor waiting zones | |
| Executive office guest seating | Polished chrome and tan finish complements premium executive desk setups | |
| Training room fixed seating | Durable construction supports frequent daily use in training and seminar spaces | |
| Open plan collaborative zones | Compact footprint fits flexible small meeting nooks in open office layouts | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 1335-2:2018 | European office chair safety strength and durability standard for contract seating verification | |
|---|---|---|
| EN 1022:2018 | Domestic and contract seating stability test standard applicable to cantilever chair checks | |
| EN 12520:2015 | Furniture seating strength durability and safety requirement standard for commercial furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | North American general-purpose office chairs standard for strength and durability verification | |
|---|---|---|
| ANSI/BIFMA X5.11-2015 | Large occupant office chair standard if specified for high-load application verification |
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to size measurement of office furniture chairs for procurement dimensional verification | |
|---|---|---|
| GB/T 35607-2017 | Green product assessment standard applicable for office furniture environmental compliance checks | |
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture applicable to substrate testing | |
| GB/T 10357.3-2013 | Mechanical test standard for chair strength and durability suitable for performance verification |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to size measurement of office furniture chairs for procurement dimensional verification; 2. GB/T 35607-2017: Green product assessment standard applicable for office furniture environmental compliance checks; 3. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture applicable to substrate testing; 4. GB/T 10357.3-2013: Mechanical test standard for chair strength and durability suitable for performance verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
