PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

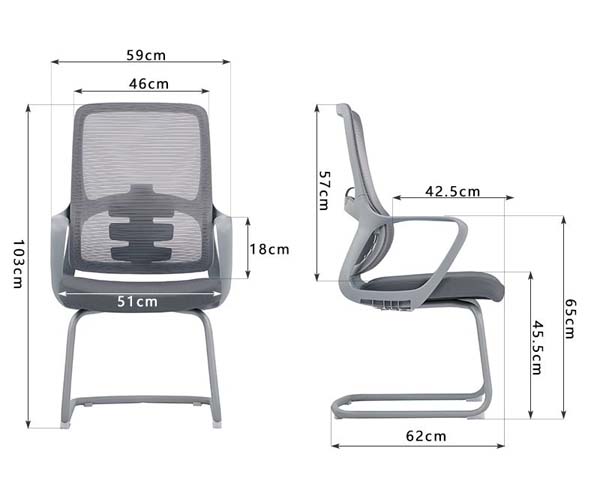

Overall dimensions (W × D × H)	590 × 620 × 1030 mm
Seat height from floor	455 mm
Seat width	510 mm
Seat depth	425 mm
Backrest height	570 mm
Backrest width	460 mm
Armrest height from floor	650 mm
Armrest height above seat	195 mm
Lumbar support height above seat	180 mm
Sled base foot span	620 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight per unit	15 kg
Seat foam density	60 kg/m³
Seat foam thickness	50 mm
Back mesh abrasion resistance	50000 cycles
Cantilever frame static load rating	450 kg
Seam stitch pitch	8 stitches per 30mm
Recommended warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable woven polyester mesh
Seat cushion core	One-piece molded high-density polyurethane foam
Seat upholstery	Stain-resistant woven fabric cover
Support frame	Powder-coated 25mm diameter 1.8mm thick steel tube
Armrests	Integrated molded glass-fiber reinforced polypropylene
Lumbar support	Raised segmented molded TPE/foam pad
Floor glides	Non-slip nylon/TPU protective glides
Back frame	Reinforced polypropylene structural frame
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mobility configuration	Fixed static position with floor glides, no casters
Adjustment features	No height, tilt, swivel, or armrest adjustments
Back support function	Contoured built-in lumbar support maintains upright seated posture
Seat comfort feature	Waterfall front seat edge reduces leg pressure during long meetings
Frame flex characteristic	Cantilever frame provides controlled slight flex for seated comfort
Ventilation feature	Tensioned mesh back allows full airflow to reduce back heat buildup
Floor protection function	Replaceable non-marking glides prevent scratching hard floor surfaces
Stacking capability	Non-stacking design for fixed meeting room layout alignment
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Suited for meeting rooms paired with 760 mm standard height conference tables
Reception/visitor areas	Appropriate for lobby and guest waiting areas with professional appearance
Open office side seating	Usable as extra visitor seating at staff workstations for collaborative discussions
Training room seating	Suitable for fixed-position training room layouts with durable construction
Public waiting areas	Applicable for government, banking, and institutional public waiting spaces
Executive office guest seating	Fits in executive offices as paired guest seating in front of executive desks
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety strength and stability	EN 16139:2013
Office furniture chair stability	EN 1335:2018
Furniture upholstered seating flame resistance	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

General purpose office chairs static/dynamic load	ANSI/BIFMA X2017

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair mechanical safety	GB/T 35607
Office furniture seating strength and durability	GB/T 10357.3
Upholstered furniture formaldehyde emission	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair mechanical safety: GB/T 35607;
2. Office furniture seating strength and durability: GB/T 10357.3;
3. Upholstered furniture formaldehyde emission: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CANT-MESH-CONF-590

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CANT-MESH-CONF-590

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CANT-MESH-CONF-590Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Mid-Back Mesh Cantilever Conference Office Chair, model CANT-MESH-CONF-590, is an unbranded cantilever sled base seating solution designed for professional public and office environments. Its streamlined, structured silhouette features a mid-height backrest paired with integrated fixed armrests, creating a cohesive, formal visual profile suited to consistent, space-efficient rowed or clustered layouts. The chair measures 590 mm wide, 620 mm deep, and 1030 mm tall, with a 455 mm seat height aligned to standard 760 mm conference tables, enabling neat, uncluttered arrangement across shared spaces without visual disruption.
Construction centers on durable, long-wearing materials selected for high-traffic use. The backrest uses tensioned breathable woven polyester mesh stretched over a reinforced polypropylene structural frame, fitted with a raised segmented molded TPE and foam lumbar pad. The seat is built around a 14 mm bent plywood internal support board, topped with a one-piece molded 60 kg/m³ density polyurethane foam core 50 mm thick, wrapped in a stain-resistant woven fabric cover. The support frame is formed from powder-coated 25 mm diameter, 1.8 mm thick steel tube, paired with integrated molded glass-fiber reinforced polypropylene armrests, and finished with replaceable non-slip nylon and TPU floor glides. All seams follow a consistent 8 stitches per 30mm pitch for structural integrity; the back mesh withstands 50000 abrasion cycles, the cantilever frame carries a 450 kg static load rating, and the chair supports a maximum user weight of 150 kg, with a net unit weight of 15 kg.
Functional design prioritizes consistent, low-maintenance comfort for extended seated use. The fixed, caster-free base holds a static position, with no height, tilt, swivel, or armrest adjustments to simplify upkeep. The contoured built-in lumbar support maintains upright seated posture, while the waterfall front seat edge reduces leg pressure during long meetings. The cantilever frame delivers controlled slight flex to soften seating without instability, and the tensioned mesh back enables full airflow to cut down on back heat buildup. Non-marking glides prevent scratches to hard floor surfaces.
This chair is suitable for a wide range of public and professional spaces, including conference rooms, lobby and visitor waiting areas, open office collaborative side seating, fixed-layout training rooms, government and banking public waiting zones, and guest seating positions in executive offices. For procurement planning, note that each unit ships across two cartons, with 40 minutes of assembly time required per set. Packaged sets weigh 23 kg total, with a combined carton volume of 0.26 m³, allowing 135 sets to fit in a 20GP container at 85% space utilization, ideal for bulk outfitting projects requiring consistent, durable seating across high-use areas.

Mid-Back Mesh Cantilever Conference Office Chair with Fixed Arms Specifications
