PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

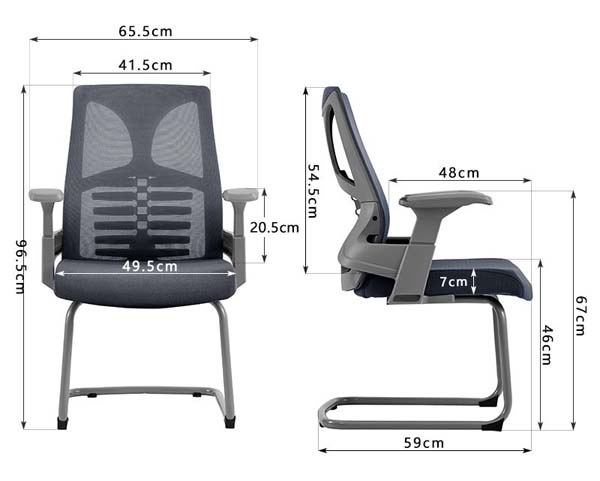

Overall dimensions (W × D × H)	655 × 590 × 965 mm
Seat width	495 mm
Seat depth	480 mm
Seat height from floor	460 mm
Backrest height	545 mm
Backrest width	415 mm
Armrest height above seat	205 mm
Seat cushion thickness	70 mm
Sled base front-to-back span	590 mm
Armrest-to-armrest total width	655 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per unit	15 kg
Recommended static load capacity	125 kg
Seat foam density	60 kg/m³
Seat foam rebound rate	45%
Mesh back abrasion resistance	50000 cycles
Fabric upholstery abrasion resistance	30000 cycles
Frame static load rating	150 kg
Commercial warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cantilever base frame	25mm diameter 2.0mm wall powder-coated steel tubing
Backrest support frame	Glass-fiber reinforced PA (nylon) plastic
Backrest upholstery	Breathable 3D woven polyester mesh
Seat core	Molded high-density polyurethane foam, 70mm thick
Seat upholstery	Woven dark navy polyester fabric
Armrests	Injection-molded grey PP plastic with smooth top surface
Floor contact glides	Anti-slip injection-molded black nylon
Seat internal support board	12mm thick molded plywood
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base movement	Fixed cantilever sled base with no swivel, casters, or height adjustment
Backrest function	Fixed non-reclining angle with structured integrated lumbar support
Armrest adjustment	Fixed-position non-adjustable armrests, 205mm above seat
Seat comfort design	Waterfall front seat edge to reduce leg pressure
Frame flex	Controlled mild vertical flex from cantilever leg design for impact absorption
Floor protection	Replaceable nylon glides to prevent hard floor scratching
Back ventilation	Full mesh construction to allow airflow during extended sitting
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room use	Suited for fixed meeting room seating with consistent seat height
Reception/waiting area use	Durable, breathable seating for visitor waiting spaces
Open office guest seating	Compact footprint for placement beside workstations for visitors
Training room deployment	Stackable? No, but lightweight and easy to reposition for training setups
Hard floor compatibility	Nylon glides safe for tile, wood, and vinyl flooring without mats
Commercial office specification	Standardized seating for large-scale office fit-out projects
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety requirements	EN 1335:2018
Office chair structural strength	EN 1728:2012

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge/seating public/office durability	ANSI/BIFMA X2020

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair strength and durability	GB/T 35607
Furniture hazardous substance limits	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair strength and durability: GB/T 35607;
2. Furniture hazardous substance limits: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CVC-M655-GYNV

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CVC-M655-GYNV

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CVC-M655-GYNVOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Cantilever Mesh Back Office Visitor Chair with Fixed Arms, model CVC-M655-GYNV from an unbranded line, delivers streamlined, purpose-built commercial seating tailored for shared office environments. Visually, it features a clean, minimalist silhouette anchored by a continuous cantilever sled base, with a contoured mesh back, neatly tailored fabric seat, and smoothly integrated fixed armrests that create a cohesive, professional look suited to formal and casual workspaces alike. Overall dimensions measure 655 x 590 x 965 mm, with balanced proportions that maintain a compact footprint without sacrificing seated support. Its frame is constructed from 25mm diameter, 2.0mm wall powder-coated steel tubing, paired with a glass-fiber reinforced nylon backrest support structure. The back uses breathable 3D woven polyester mesh, while the seat pairs a 70mm thick molded high-density polyurethane foam core with a dark navy woven polyester upholstered surface, supported by a bent plywood internal board. Fixed grey injection-molded PP plastic armrests sit 205mm above the seat, and anti-slip replaceable black nylon glides cap the base to contact flooring surfaces. Performance specifications include a 15kg net weight per unit, 125kg recommended static load capacity, 60 kg/m³ seat foam density, 45% foam rebound rate, 50000-cycle mesh abrasion resistance, 30000-cycle fabric abrasion resistance, and 150kg frame static load rating. The chair is designed for stable, low-maintenance function: it has no swivel, casters, recline, or height adjustment, with a fixed back angle that includes structured integrated lumbar support, a waterfall front seat edge to reduce leg pressure, controlled mild vertical flex from the cantilever leg design to absorb impact, and full mesh back construction to enable consistent airflow for extended sitting comfort. The replaceable nylon glides prevent scratching on tile, wood, and vinyl hard floors without additional mats. This model is well suited for fixed conference room seating with consistent seat height, durable breathable placement in reception and waiting areas, compact guest seating alongside open office workstations, and flexible training room layouts where its lightweight build allows easy repositioning, even though it is not stackable. It also meets standardized specifications for large-scale commercial office fit-out projects. For procurement, note that each unit ships across two cartons, requires 40 minutes of assembly per set, has a packaged gross weight of 23kg, and fits 135 sets in a 20GP container at 85% space utilization, with total packaged volume of 0.26 m³ per set.

Cantilever Mesh Back Office Visitor Chair with Fixed Arms Specifications
