Product supplierFixed Cantilever Mesh Back Conference Office Chair, Breathable woven polyester mesh, tensioned over black PP back frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

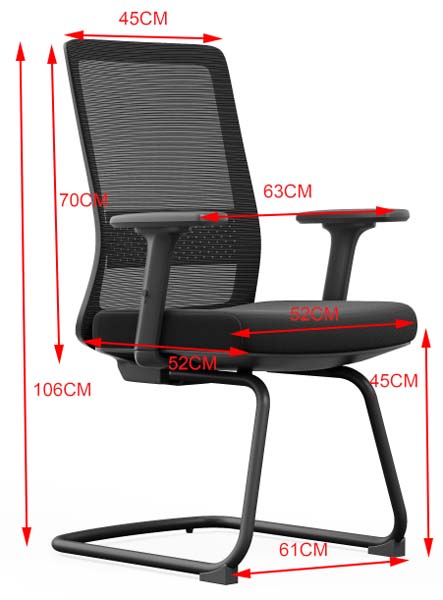

| Overall dimensions (W × D × H) | 630 × 610 × 1060 mm | |
|---|---|---|
| Overall assembled dimensions | 630mm W x 610mm D x 1060mm H | |
| Backrest width | 450mm | |
| Backrest vertical height | 700mm | |
| Seat height (floor to top of seat) | 450mm | |
| Seat depth (front to back) | 520mm | |
| Total seat front-to-back clearance | 520mm | |
| Base sled frame depth | 610mm | |
| Total armrest span (outer edge to outer edge) | 630mm | |
| Armrest height above seat surface | 220mm | |
| Seat cushion thickness | 50mm | |
| Steel cantilever frame tube diameter | 25mm | |
| Floor clearance under seat | 380mm | |
| Finished Seat Cushion Thickness | 90mm | |
| Backrest Padding Thickness | 70mm | |
| Lumbar Support Zone Height | 240mm | |
| Clear Width Between Armrests | 540mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Approximate net product weight | 13.5kg | |
|---|---|---|
| Recommended static user load capacity | 120kg | |
| Recommended daily usage duration | 8 hours | |
| Cantilever frame static load test threshold | 1100N vertical drop | |
| Floor glide sliding friction rating | ≥0.3 coefficient | |
| Back support lumbar zone height | 220mm above seat surface | |
| Seat cushion foam density recommendation | 45kg/m³ high resilience foam | |
| Seat Foam Density / Rebound Reference | 45kg/m³ / 65% | |
| Back Foam Density Reference | 38kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4mm / 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest upholstery | Breathable woven polyester mesh, tensioned over black PP back frame | |
|---|---|---|
| Seat cushion upholstery | Black woven polyester/PU blended fabric, stitched over moulded foam pad | |
| Seat core padding | Moulded high-resilience polyurethane foam, 50mm thickness | |
| Cantilever support frame | 1.5mm wall thickness round steel tube, black matte powder coated finish | |
| Floor contact glides | Injection moulded black polypropylene non-marking glides, press-fit into frame ends | |
| Back internal support frame | Reinforced polypropylene inner frame, shaped for lumbar contour | |
| Seat pan support plate | 1.2mm thick stamped steel plate under seat cushion, black powder coated | |
| Seat upholstery seam stitch pitch | 10 stitches per inch | |
| Armrest components | Fixed injection-moulded polypropylene arm pads and support brackets, matte black finish | |
| Surface finish corrosion resistance | 100 hours neutral salt spray resistance for powder coated steel frame | |
| Seat Internal Support Board Thickness | 14mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14mm bent plywood/composite reinforced frame |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat and back position | Fixed non-reclining, non-swivelling rigid structure designed for stable conference seating | |
|---|---|---|
| Armrest function | Fixed height and fixed position armrests, provides forearm support at fixed seated elbow height | |
| Back support function | Contoured tensioned mesh back with integrated lumbar support zone, maintains spine alignment during seated meetings | |
| Base mobility function | Sled cantilever base with smooth glides allows limited horizontal repositioning on hard floors, no rolling casters | |
| Stacking capability | Non-stacking construction, individual side-by-side placement | |
| Floor protection function | Integrated PP glides distribute frame weight, prevent scuffing and scratching on hard tile, wood, or commercial carpet floors | |
| Recommended fabric abrasion resistance | ≥30,000 Martindale cycles | |
| Fabric performance specification | Seat fabric meets ≥30,000 Martindale abrasion cycles, mesh back meets ≥20,000 Martindale cycles | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120kg | |
| Height Adjustment Stroke | 100mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 1 per unit | |
|---|---|---|
| Reference shipping carton dimensions | 680mm L x 650mm W x 530mm H | |
| Reference gross weight per carton | 16kg | |
| Reference cubic volume per carton | 0.234 CBM | |
| Assembly time requirement | 15minutes per unit | |
| 20ft GP container loading quantity (stacked on pallets) | 290 units | |
| 40ft HQ container loading quantity (stacked on pallets) | 690 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40minutes per set | |
| Reference Carton Dimensions | 850 × 420 × 720mm |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate conference/meeting rooms | Fixed stable cantilever design and clean professional styling suits group meeting spaces, with neat uniform appearance for boardrooms and training rooms | |
|---|---|---|
| Open office visitor/guest seating | Compact footprint and 450mm standard seat height works for short to medium duration guest seating at workstations or reception areas | |
| Training and education rooms | Durable fixed base and breathable mesh back supports multi-hour training sessions without moving adjustment mechanisms that cause distraction | |
| Healthcare and public waiting areas | Sturdy frame and easy-to-clean surfaces suit high-traffic public waiting spaces, glides allow easy repositioning without damaging flooring | |
| Home office secondary/guest seating | Compact size and neutral black finish complements home office setups for occasional guest use | |
| Recommended configuration | Purchase in sets of 4/6/8 units for uniform conference table matching; optional add fabric arm pads for extended use comfort | |
| Public waiting areas (healthcare, government lobbies) | Sturdy steel frame and easy-to-wipe clean surfaces suit high-traffic public waiting spaces, PP glides allow easy staff repositioning without damaging hard flooring | |
| Recommended procurement configuration | Purchase in sets of 4/6/8 units for uniform conference table matching; optional add-on 10mm thick PU arm pads for extended 4+ hour use comfort |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-2:2009 Office furniture - Office work chairs - Part 2: Safety requirements | Defines structural safety, stability, and strength testing requirements for commercial office seating applicable to this fixed conference chair | |
|---|---|---|
| EN 1335-3:2009 Office furniture - Office work chairs - Part 3: Test methods | Specifies standardized test procedures for verifying static load, durability, and stability of fixed-base office chairs | |
| EN 1022:2018 Domestic furniture - Seating - Determination of stability | Applies to tip-resistance testing for cantilever sled-base seating on level flooring |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 General Purpose Office Chairs - Tests | Specifies static load, back strength, and durability test thresholds applicable to commercial fixed-base office conference chairs |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for furniture | Applies to dimensional stability, structural strength, and finish durability requirements for metal-framed upholstered office seating | |
|---|---|---|
| GB/T 35607-2017 Safety of office furniture - Office chairs | Defines mandatory safety requirements for static load, stability, and structural integrity for fixed-base office seating | |
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applies to formaldehyde and VOC emission limits for any composite components used in the chair assembly |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for furniture: Applies to dimensional stability, structural strength, and finish durability requirements for metal-framed upholstered office seating; 2. GB/T 35607-2017 Safety of office furniture - Office chairs: Defines mandatory safety requirements for static load, stability, and structural integrity for fixed-base office seating; 3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applies to formaldehyde and VOC emission limits for any composite components used in the chair assembly; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
