PRODUCT MODULE 01 / 06

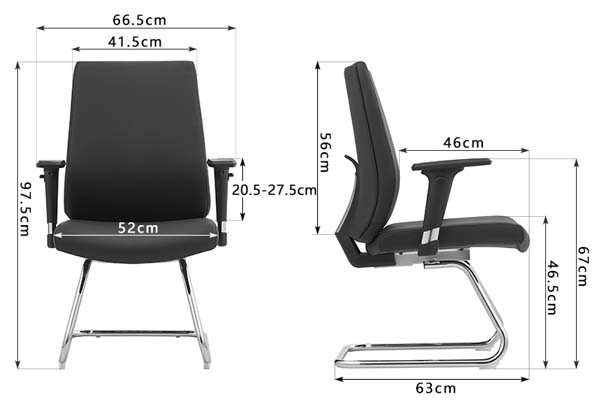

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	665 × 630 × 975 mm
Seat width	520 mm
Seat depth	460 mm
Seat height	465 mm
Backrest height	560 mm
Armrest width span	415 mm
Armrest height above seat	275 mm
Total side profile height	670 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	18 kg
Recommended static load capacity	125 kg
Seat cushion foam density	45 kg/m³
Backrest foam density	35 kg/m³
Seat cushion thickness	80 mm
Backrest padding thickness	60 mm
Structural warranty	10 years
Abrasion resistance (upholstery)	50000 Martindale cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Black PU leather, 1.2mm thickness
Seat internal support	18mm double-layer bent plywood core
Seat cushion padding	High-elastic polyurethane foam, density 45kg/m³
Backrest padding	High-elastic polyurethane foam, density 35kg/m³
Cantilever base frame	Polished chrome-plated steel tubing, 2.0mm wall thickness
Armrest supports	Black reinforced engineering plastic
Armrest pads	Hard-wearing black polyurethane contact surface
Sled base floor contact bars	Chrome-plated steel with integrated anti-scuff glides
Seam stitch pitch	8 stitches per inch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Armrest height adjustment	70mm vertical travel, button-activated lock at 2 preset heights
Base design	Fixed non-swivel, non-tilting cantilever sled frame
Floor protection	Integrated polymer glides on sled contact points
Posture support	Upright 95-degree fixed back angle for formal meeting posture
Stacking capability	Not designed for vertical stacking
Seat edge design	Contoured waterfall front edge to reduce leg pressure
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Formal fixed guest seating around meeting tables for group collaboration
Visitor reception area	Waiting seating in office lobbies with stable non-rolling base for safety
Executive office guest seating	Side seating for visitors in private offices matching executive desk aesthetics
Training room seating	Fixed row seating for training sessions with upright posture support
Public sector waiting areas	Durable easy-clean seating for government or service center waiting zones
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-2:2018	Applicable for office visitor chair safety, strength and stability requirements
EN 1335-3:2018	Applicable for office seating structural durability and mechanical test methods
EN 1022:2018	Applicable for domestic and contract seating stability testing protocol

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applicable for general-purpose office chair safety and performance testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applicable for office furniture seating dimensional accuracy testing
GB/T 10357.3-2013	Applicable for chair mechanical strength and durability performance testing
GB 28007-2011	Applicable for limits of harmful substances in upholstered office furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applicable for office furniture seating dimensional accuracy testing;
2. GB/T 10357.3-2013: Applicable for chair mechanical strength and durability performance testing;
3. GB 28007-2011: Applicable for limits of harmful substances in upholstered office furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CVC-ADJARM-665BLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CVC-ADJARM-665BLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CVC-ADJARM-665BLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Mid-Back Height-Adjustable Armrest Cantilever Office Visitor Chair (model CVC-ADJARM-665BLK) is an unbranded commercial-grade seating solution tailored for structured public and office environments. Its clean, linear silhouette features a tailored mid-back profile paired with a sleek polished chrome cantilever sled base, delivering a formal, streamlined aesthetic that coordinates with a wide range of professional interior schemes without distracting visual clutter. All upholstered surfaces are finished in smooth black 1.2mm thick PU leather, with consistent 8 stitches per inch seam construction for a polished, durable finish. The contoured waterfall front seat edge is shaped to reduce pressure on the backs of users’ legs, while the fixed 95-degree upright back angle supports formal, attentive posture aligned with professional meeting settings. The chair supports a recommended static load of 125kg, anchored by a rigid 2.0mm wall thickness polished chrome-plated steel tubing frame that is fixed, non-swivel and non-tilting for stable, secure placement. The seat is built on an 18mm double-layer bent plywood core, topped with 80mm thick 45kg/m³ density high-elastic polyurethane foam, while the backrest uses 60mm thick 35kg/m³ density high-elastic polyurethane foam for balanced, long-lasting support. Hard-wearing black polyurethane armrest pads, mounted on reinforced black engineering plastic supports, offer 70mm of vertical travel with a simple button-activated lock securing two preset height positions to accommodate varied user needs. Integrated anti-scuff polymer glides on the sled base floor contact points protect hard flooring surfaces from scuffs and scratches during repositioning. Note that this chair is not designed for vertical stacking, and the backrest does not support the referenced recline or position lock functions, remaining fixed in the upright posture configuration. This seating solution is suited for a wide range of public and professional spaces, including formal conference rooms for group collaboration around meeting tables, office lobby reception waiting areas where its non-rolling base enhances safety for high-traffic flow, guest seating positions adjacent to 2.4m executive desks in private offices, fixed row arrangements in training rooms to support upright engagement during sessions, and easy-clean durable seating for public sector government or service center waiting zones. For procurement planning, each chair is delivered in 2 cartons per set, with a packaged gross weight of 23kg and total carton volume of 0.26 m³. Assembly requires an 40 minutes per unit, and 135 sets can be loaded into a 20-foot general purpose container at 85% space utilization. The structural frame is covered by a 10-year warranty for long-term commercial use peace of mind.

Mid-Back Height-Adjustable Armrest Cantilever Office Visitor Chair Specifications
