Name: Grey Mesh Back Cantilever Conference Visitor Chair
Brand: YUXIANG
SKU: MG7VH8

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

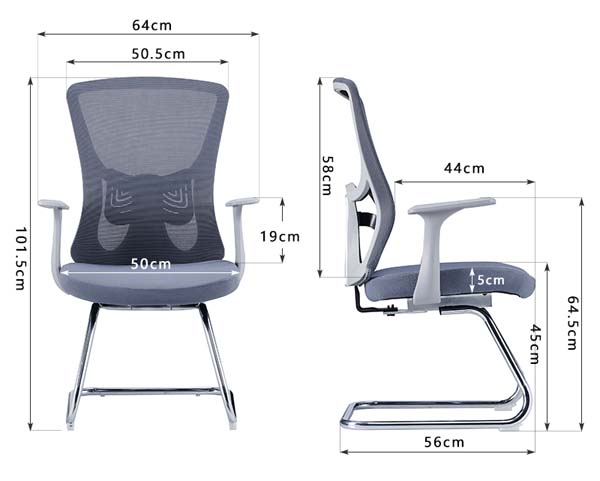

Overall dimensions (W × D × H)	640 × 560 × 1015 mm
Seat width	500 mm
Seat depth	440 mm
Seat height from floor	450 mm
Seat cushion thickness	50 mm
Backrest width	505 mm
Backrest height	580 mm
Armrest height above seat	190 mm
Cantilever base front-to-back span	560 mm
Armrest outer spread	640 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per unit	15 kg
Maximum recommended user weight	120 kg
Seat foam density	60 kg/m³
Seat foam rebound rate	45%
Backrest mesh tensile strength	250 N/5cm
Seat fabric abrasion resistance	120000 Martindale cycles
Frame static load capacity	1200 N
Cantilever flex deflection under load	12 mm
Standard color option count	3
Warranty period	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	High-tensile breathable polyester mesh
Back support frame	Glass-fiber reinforced polypropylene
Seat cushion core	60kg/m³ high-density molded polyurethane foam
Seat upholstery	Woven polyester fabric with breathable backing
Cantilever frame	25mm diameter chrome-plated steel tube, 2.0mm wall thickness
Armrests	Integral curved polypropylene with matte grey finish
Floor contact glides	Injection-molded nylon anti-slip glides
Frame connection hardware	Zinc-plated steel bolts and brackets
Seat seam stitch pitch	8 stitches per 30mm
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base mobility	Fixed cantilever sled base without casters
Seating flex	Passive frame deflection under seated weight
Armrest support	Fixed-height curved armrests positioned 190mm above seat
Back support	Fixed contoured lumbar zone integrated into mesh back
Seat edge comfort	Waterfall curved front seat edge
Floor protection	Integrated non-marking glides at base contact points
Stacking capability	Non-stackable fixed frame design
Assembly requirement	Partial knockdown assembly required
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Suitable for meeting rooms with standard 750mm height conference tables
Visitor reception seating	Ideal for lobby and guest waiting areas
Training room seating	Appropriate for training facilities with fixed desk setups
Open office visitor seating	Suitable for short-term guest seating at workstations
Individual office guest seating	Fits 2 guest positions in executive private offices
High-traffic commercial use	Durable construction suitable for daily use in 8+ person conference spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2000/AC:2002	Office work chairs: Dimensional safety requirements
EN 1335-2:2018	Office work chairs: Safety strength and stability
EN 1022:2018	Domestic and contract seating: Stability test method

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Office furniture: Desk and chair dimensional tolerances
GB/T 10357.2-2013	Furniture mechanical test: Chair and stool stability
GB/T 10357.3-2013	Furniture mechanical test: Chair and stool strength/durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Office furniture: Desk and chair dimensional tolerances;
2. GB/T 10357.2-2013: Furniture mechanical test: Chair and stool stability;
3. GB/T 10357.3-2013: Furniture mechanical test: Chair and stool strength/durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CNF-MESH-001-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CNF-MESH-001-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CNF-MESH-001-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The YUXIANG CNF-MESH-001-GRY Grey Mesh Back Cantilever Conference Visitor Chair is a purpose-built public and office seating solution defined by a streamlined, professional silhouette suited to formal and semi-formal commercial environments. Its fixed cantilever sled base creates a clean, uncluttered visual profile, with a cohesive matte grey finish across armrests and frame accents that complements neutral corporate interior palettes. The upright, structured backrest aligns with standard table heights, while evenly proportioned seat and back dimensions create a balanced, approachable layout for guest use.
The chair is engineered for consistent long-term use across high-traffic settings. Its backrest uses high-tensile breathable polyester mesh stretched over a glass-fiber reinforced polypropylene support frame, paired with an integrated fixed contoured lumbar zone for targeted postural support. The seat features a 60kg/m³ high-density molded polyurethane foam core wrapped in woven polyester fabric with a breathable backing, finished with a waterfall curved front edge to reduce pressure on the backs of legs during extended sitting. The cantilever frame is constructed from 25mm diameter chrome-plated steel tube with 2.0mm wall thickness, secured with zinc-plated steel bolts and brackets. Integral curved polypropylene armrests sit at a fixed height above the seat, and injection-molded nylon anti-slip, non-marking glides at the base protect floor surfaces while preventing unwanted movement. The sled base delivers passive frame deflection under seated weight for gentle, responsive comfort, with no casters to enable stable, stationary placement.
This model supports a maximum recommended user weight of 120kg, with seat fabric rated for 120000 Martindale cycles of abrasion resistance to suit regular daily use. It is ideally suited for standard-height conference rooms paired with 750mm tables, lobby and guest waiting areas, fixed-desk training facilities, short-term visitor seating at open office workstations, and guest positions in executive private offices. Its durable build supports consistent use in 8+ person conference spaces.
For procurement planning, note each unit ships in two cartons, requires 40 minutes of assembly per set, and has a non-stackable fixed frame design. A 20GP container holds 135 sets at 85% space utilization, allowing for efficient bulk ordering for large commercial fit-outs.
