PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

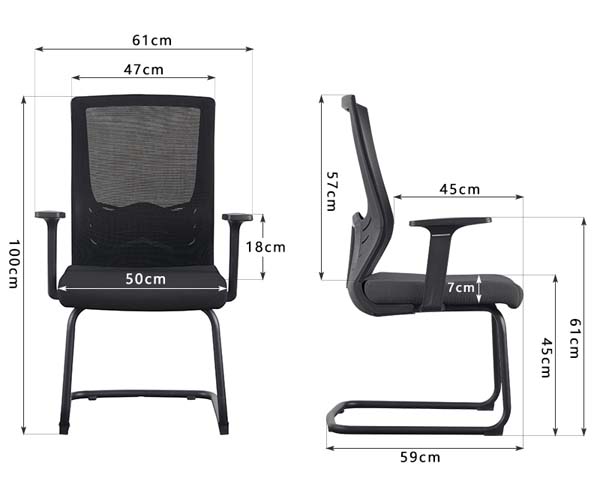

Overall dimensions (W × D × H)	610 × 590 × 1000 mm
Seat height from floor	450 mm
Seat width	500 mm
Seat depth	450 mm
Seat cushion thickness	70 mm
Backrest height	570 mm
Backrest width	470 mm
Armrest height above seat	180 mm
Total armrest height from floor	610 mm
Sled base front-to-rear span	590 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	9 kg
Recommended static user load	120 kg
Seat foam density	40 kg/m³
Seat foam rebound rate	45%
Back mesh abrasion resistance	30000 cycles
Frame static load capacity	500 kg
Floor glide surface durability	100000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Taut breathable polyester mesh with integrated lumbar contour
Seat cushion core	40D high-density polyurethane foam
Seat upholstery	Woven black polyester fabric over foam core
Seat support substrate	12mm thick molded plywood under foam core
Armrests	Fixed T-shaped injection-molded polypropylene armrests
Cantilever frame	Chrome-plated steel tubing, 32mm diameter, 1.8mm wall thickness
Floor contact glides	Non-slip non-marking polypropylene anti-tilt glides
Back frame	Injection-molded black polypropylene structural frame
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mobility type	Stationary fixed seating, no casters or swivel mechanism
Height adjustment	No seat height adjustment, fixed 450mm seat height
Armrest adjustment	Fixed position armrests with no height, width, or pivot adjustment
Recline function	Static 100-degree fixed backrest angle, no active tilt or lock mechanism
Floor protection	Anti-tilt glides prevent scratching hard floors and reduce forward tipping
Stacking capability	Non-stacking single-unit construction, designed for permanent conference setup
Assembly requirement	Knock-down assembly requiring attachment of seat/back assembly to sled frame
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Fixed stable seating for boardrooms and meeting spaces, no rolling distraction
Reception and guest areas	Professional breathable guest seating for office lobbies and waiting zones
Open office visitor seating	Lightweight fixed seating for desk side guest use in open workspaces
Training room seating	Durable stationary seating for employee training and seminar rooms
Home office guest seating	Compact formal seating for residential office meeting and guest use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety and strength	EN 1335:2009
Office chair dimensional requirements	EN 1335:2000
Furniture upholstery fabric durability	EN 14465:2006

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair strength and durability	GB/T 10357.3
Formaldehyde emission limit	GB 18584
Metal furniture coating adhesion	GB/T 3325

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair strength and durability: GB/T 10357.3;
2. Formaldehyde emission limit: GB 18584;
3. Metal furniture coating adhesion: GB/T 3325;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CANT-MESH-GUEST-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CANT-MESH-GUEST-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CANT-MESH-GUEST-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Black Mesh Back Cantilever Office Guest Chair, model CANT-MESH-GUEST-01, is an unbranded stationary seating solution built for consistent professional use across formal and semi-formal work and meeting settings. Its sleek, streamlined visual profile features a taut black mesh back set within a matching black polypropylene structural frame, paired with a padded black fabric seat, fixed T-shaped polypropylene armrests, and a polished chrome-plated steel cantilever sled base that creates a clean, uncluttered silhouette suited to modern office aesthetics. Overall dimensions measure 610 x 590 x 1000 mm, with balanced proportions including a 500 mm wide, 450 mm deep seat set 450 mm from the floor, topped with a 70 mm thick cushion, a 570 mm tall, 470 mm wide backrest, and armrests positioned 180 mm above the seat surface for relaxed arm support during extended seated periods. Construction prioritizes durability and long-term comfort. The backrest uses taut breathable polyester mesh shaped with an integrated lumbar contour, tested to withstand 30000 abrasion cycles for sustained use. The seat core is built from 40 kg/m³ high-density polyurethane foam with a 45% rebound rate, upholstered in woven black polyester fabric, and supported by a 14 mm thick bent plywood internal board. The cantilever frame is formed from 32 mm diameter, 1.8 mm wall thickness chrome-plated steel tubing, with a 500 kg static frame load capacity, and finished with non-slip, non-marking polypropylene anti-tilt glides tested to 100000 durability cycles that protect hard flooring and reduce forward tipping risk. The chair supports a maximum recommended static user load of 120 kg, with a net weight of 9 kg. Functional design is tailored to low-distraction fixed seating: there are no casters, swivel mechanisms, seat height adjustment, armrest positioning controls, or active recline functions, with a fixed 100-degree back angle to encourage upright, focused posture. The chair is non-stacking, built for permanent setup, and ships knock-down for assembly, with an 40 minute assembly time per unit, packaged across two cartons. It is well suited for boardrooms and conference spaces, office reception and waiting areas, open workspace desk-side visitor seating, training and seminar rooms, and residential home office guest zones, pairing appropriately with 2.4 m executive desks. Procurement teams should note the 0.26 m³ packaged volume per set, 23 kg packaged gross weight, and 135 set load capacity for a 20GP container at 85% space utilization when planning bulk orders. No rolling or adjustment features mean this chair is not intended for active workstation use, making it ideal for static guest and attendee seating applications.

Black Mesh Back Cantilever Office Guest Chair Specifications
