PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

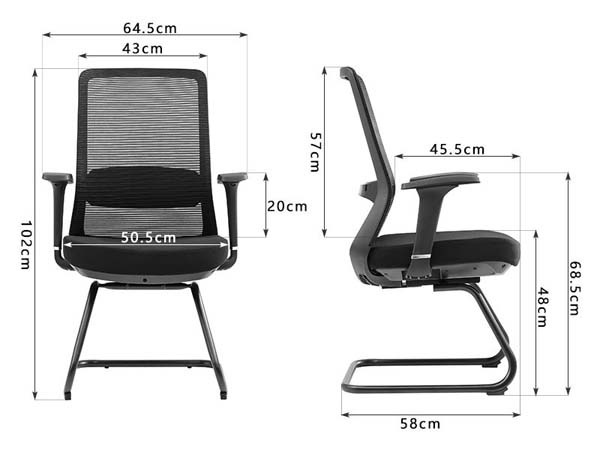

Overall dimensions (W × D × H)	645 × 580 × 1020 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended maximum static user load	120 kg
net product weight	12 kg
Seat cushion foam thickness	50 mm
Seat cushion foam density	45 kg/m³
Backrest lumbar support height	200 mm
Static load rating for cantilever frame	500 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable woven polyester mesh
Seat cushion upholstery	Wear-resistant polyester fabric
Seat cushion core	High-resilience polyurethane foam
Backrest frame	Reinforced polypropylene
Armrests	Integral hard polypropylene pads
Cantilever base frame	Powder-coated 22mm diameter steel tubing
Floor contact pads	Non-slip TPE rubber glides
Seat pan support plate	2mm thick stamped steel
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base configuration	Fixed cantilever sled base
Lumbar support	Fixed molded lumbar curvature
Backrest flex	Tensioned mesh suspension
Armrest function	Fixed height armrests
Stacking capability	Non-stacking construction
Seat tilt	Fixed seat angle
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room use	Fixed stable seating for meeting rooms
Visitor/reception use	Guest seating in office reception areas
Training room use	Seating for staff training facilities
Open plan workstation guest use	Side seating at employee workstations
Recommended flooring types	Carpet, vinyl, tile and hardwood
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Applicable office furniture safety standard	EN 1335:2018
Applicable office furniture dimensional standard	EN 1335:2020
Applicable office seating surface flammability	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Applicable standard for guest chair strength	ANSI/BIFMA X2017
Applicable standard for chair stability	ANSI/BIFMA X5.1 Clause 5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Applicable standard for office seating dimensions	GB/T 3326
Applicable standard for seating mechanical stability	GB/T 10357.2
Applicable standard for upholstered furniture durability	GB/T 2012

Standardized tender description text

This product must meet the following technical requirements:
1. Applicable standard for office seating dimensions: GB/T 3326;
2. Applicable standard for seating mechanical stability: GB/T 10357.2;
3. Applicable standard for upholstered furniture durability: GB/T 2012;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-CANT-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-CANT-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-CANT-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Mesh Back Cantilever Visitor Office Chair (model OC-MESH-CANT-001) is an unbranded commercial and residential seating solution designed for versatile guest and collaborative use. Its streamlined profile features a contoured, open mesh back paired with a tailored upholstered seat, set on a sleek cantilever sled base. Fixed, integrated armrests sit at a consistent height flanking the seat, creating a clean, uncluttered silhouette that complements modern workspace interiors without disrupting sightlines in shared settings. Construction prioritizes balanced durability and comfort. The backrest uses breathable woven polyester mesh stretched over a reinforced polypropylene frame, shaped with a fixed molded lumbar curvature for consistent postural support, with tensioned suspension to deliver gentle, responsive flex during use. The seat is built on a stamped steel support plate paired with a bent wood internal board, topped with high-resilience polyurethane foam wrapped in wear-resistant polyester fabric. Armrests are formed from hard, integral polypropylene pads, while the cantilever frame uses powder-coated steel tubing fitted with non-slip TPE rubber glides to protect floor surfaces. Functional features are tailored to low-maintenance, frequent use: the seat holds a fixed angle, while the back supports a 125° recline with three lock positions to accommodate relaxed seated postures. The chair uses a non-stacking, fixed cantilever base that delivers steady, wobble-free seating for users up to the recommended maximum static load. This chair is well suited for fixed stable seating in conference rooms, guest placement in office reception zones, staff training facilities, and side seating at open plan workstations. It performs reliably across carpet, vinyl, tile, and hardwood flooring, and pairs seamlessly with executive desks for formal meeting setups. Procurement teams should note that each unit ships across two cartons, with an assembly time per set. The fixed non-stacking design makes it best suited for permanent or semi-permanent seating layouts rather than flexible, frequently reconfigured spaces requiring compact storage. Its lightweight net weight eases positioning during initial setup, while the robust frame static load rating supports long-term daily use in high-traffic shared spaces.

Mesh Back Cantilever Visitor Office Chair Specifications
