PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

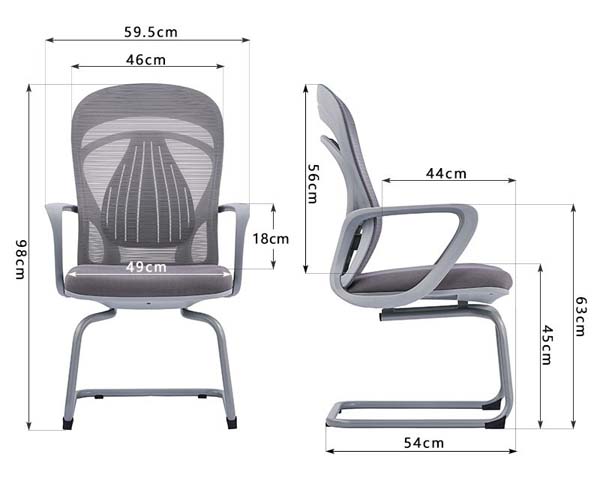

Overall dimensions (W × D × H)	595 × 540 × 980 mm
Seat width	490 mm
Seat depth	440 mm
Seat height	450 mm
Backrest height	560 mm
Armrest height above seat	180 mm
Inner back frame width	460 mm
Sled base footprint length	540 mm
Top of armrest total height	630 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static user weight capacity	113 kg
Net product weight	13 kg
Cantilever flex tilt angle	10 degrees
Seat foam indentation load deflection	60 kg/m³
Seat cushion padding thickness	80 mm
Back mesh tensile strength	250 N/5cm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cantilever frame	25mm diameter grey powder-coated steel tube, 1.5mm wall thickness
Backrest support frame	22mm diameter grey steel tube, integrated lumbar curve
Backrest upholstery	Breathable polyester mesh fabric over PP internal rib frame
Seat core	Molded PP seat pan with high-density PU foam padding
Seat upholstery	Woven polyester fabric over seat foam, matte grey finish
Armrests	One-piece fixed loop PP armrests with integrated frame mounts
Base glides	Black non-slip PP foot pads at all frame floor contact points
Mesh abrasion resistance	50000 Martindale cycles
Seam stitch pitch	8 stitches per inch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base movement	Fixed cantilever sled design with no casters, no swivel rotation
Height adjustment	No seat height adjustment, fixed 450mm seat height for meeting use
Recline function	Passive flex tilt from steel frame deflection, no manual tilt lock
Arm support	Fixed loop armrests providing 180mm arm support height above seat
Back support	Integrated vertical rib lumbar support built into mesh back frame
Floor protection	Non-slip PP glides prevent floor scuffing and unwanted sliding
Stacking capability	Non-stackable fixed frame design intended for static conference placement
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Fixed stable design suitable for meeting rooms with frequent visitor use
Guest reception areas	Neutral grey finish and comfortable padding for corporate reception spaces
Open office side seating	Compact footprint for ad-hoc collaborative work zones near desks
Training room seating	Durable non-adjustable design for multi-use training and presentation spaces
Office visitor waiting areas	Breathable mesh back for extended waiting comfort in lobby zones
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013 Level 2	Non-domestic seating strength/durability standard for contract office visitor chairs
EN 1022:2018	Seating stability test method applicable to cantilever fixed-base chairs
EN 1335-2:2009	Office chair safety performance requirements for public area seating

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 Test 5	Static back load test requirement of 667N for visitor seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements applicable to metal frame office seating
GB/T 24821-2009	Office furniture chair mechanical stability test methods applicable to visitor seating
GB 18584-2001	Indoor decoration material harmful substance limit for wooden/furniture components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements applicable to metal frame office seating;
2. GB/T 24821-2009: Office furniture chair mechanical stability test methods applicable to visitor seating;
3. GB 18584-2001: Indoor decoration material harmful substance limit for wooden/furniture components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MC-CANT-980GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MC-CANT-980GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MC-CANT-980GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Grey Mesh Back Cantilever Conference Meeting Chair (model MC-CANT-980GRY) is an unbranded purpose-built seating solution designed for shared professional spaces, with a cohesive muted grey aesthetic that aligns with a wide range of commercial interior palettes. Its streamlined form follows a classic cantilever sled profile, with clean, uninterrupted lines from the curved frame base up to the contoured backrest; fixed loop armrests sit flush with the frame structure for a unified, uncluttered visual presence suited to formal and semi-formal settings alike. Construction prioritizes durable, low-maintenance materials built for regular high-traffic use. The cantilever frame is formed from grey powder-coated steel tube, paired with a matching steel backrest support frame shaped with an integrated lumbar curve. The backrest uses breathable polyester mesh stretched over a ribbed internal PP frame, while the seat features a molded PP pan topped with high-density PU foam, upholstered in matte grey woven polyester fabric. One-piece fixed PP loop armrests mount directly to the frame, and black non-slip PP glides cap all floor contact points to protect underlying surfaces. Functional design is tailored to static, multi-user environments. The fixed cantilever base includes no casters or swivel rotation, offering stable positioning with a passive 10-degree flex tilt generated by controlled frame deflection, with no manual adjustment controls required. The fixed seat height is calibrated for meeting use, paired with thick, supportive seat cushioning and built-in vertical rib lumbar support integrated into the back frame. The breathable mesh back supports air circulation to maintain comfort during extended seated periods, while non-slip glides prevent both floor scuffing and unintended chair movement. The chair does not offer height adjustment, manual tilt lock, or stacking capability. This chair is well suited for a range of commercial spaces, including corporate conference rooms hosting frequent visitor meetings, formal guest reception areas, compact open-office collaborative zones adjacent to workstations, multi-use training and presentation rooms, and office lobby waiting areas. It is sized to pair effectively with 2.4m executive desks for formal boardroom setups. Procurement teams should note the chair ships across two cartons per set, with an assembly time per unit to plan for installation scheduling. Fixed dimensions mean pre-purchase layout planning is recommended to confirm fit for target table heights and space allocations, while the durable, adjustment-free design reduces long-term maintenance needs for high-turnover shared seating environments.

Grey Mesh Back Cantilever Conference Meeting Chair Specifications
