PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

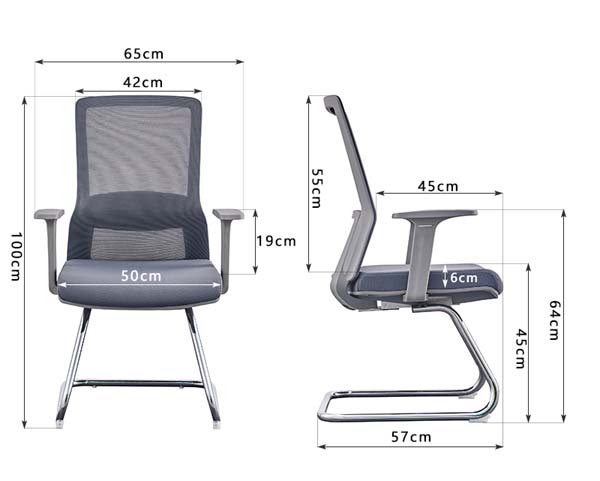

Overall dimensions (W × D × H)	650 × 570 × 1000 mm
Seat width	500 mm
Seat depth	450 mm
Seat height from floor	450 mm
Seat cushion thickness	60 mm
Backrest height from seat	550 mm
Backrest width	420 mm
Armrest height from seat	190 mm
Base footprint length	570 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per chair	16 kg
Recommended static user load	136 kg
Seat foam density	65 kg/m³
Seat foam rebound rate	60%
Seat board thickness	12 mm
Seam stitch pitch	8 mm
Structural warranty	5 years
Available color options	7 colors
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cantilever frame	2mm thick, 25mm diameter chrome-plated steel tube
Backrest support	30% glass fiber reinforced polypropylene inner frame
Backrest upholstery	Breathable woven polyester mesh over contoured frame
Seat cushion core	60mm thick high-density molded polyurethane foam
Seat upholstery	Wear-resistant woven polyester fabric over foam pad
Armrest structure	Rigid polypropylene fixed T-shaped armrests with flat top surface
Floor glides	Injection-molded polypropylene non-marring glides on sled base ends
Frame finish	Mirror polished chrome plating with anti-scratch clear coat
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating support	Fixed cantilever sled design provides controlled flexible give under load
Lumbar support	Contoured integrated lumbar section built into mesh backrest
Arm support	Fixed height T-armrests support forearms during seated meetings
Floor protection	PP glides slide safely on hard floors without scratching surfaces
Posture support	104-degree fixed backrest tilt promotes relaxed upright meeting posture
Assembly requirement	Knock-down assembly of backrest, seat and frame with included hardware
Stacking capability	Non-stackable fixed frame design
Backrest tilt angle	104 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Meeting room application	Suitable for fixed conference room seating around boardroom tables
Visitor/reception use	Ideal for guest seating in reception areas and waiting rooms
Open office task use	Appropriate for short-duration task seating at open workstations
Training room deployment	Suitable for multi-seat training room layouts
Hard floor compatibility	Safe for use on tile, wood and vinyl hard flooring
Commercial project specification	Designed for commercial office, government and education fit-outs
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applies to office work chair dimensional safety and performance requirements
EN 1335-2:2018	Applies to office chair structural safety and strength requirements
EN 16139:2013 Level 2	Applies to non-domestic seating strength, durability and stability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applies to general purpose office chair safety and performance requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to office furniture chair dimensional accuracy and stability requirements
GB/T 10357.3-2013	Applies to chair seat and back static load and fatigue test methods

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to office furniture chair dimensional accuracy and stability requirements;
2. GB/T 10357.3-2013: Applies to chair seat and back static load and fatigue test methods;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MESH-CONF-SLED-650

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MESH-CONF-SLED-650

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MESH-CONF-SLED-650Open Export Tool

Quick Actions

Post an RFQ

Product Description

This grey mesh back cantilever office conference and visitor chair delivers a streamlined, professional seating solution for shared work and guest spaces, with a fixed sled base that creates a clean, unobstructed visual profile ideal for uniform row or perimeter seating layouts. Its understated neutral grey finish and polished chrome frame complement a wide range of interior design palettes, while structured fixed T-shaped armrests add balanced visual symmetry without protruding elements that disrupt clean sightlines across meeting spaces.
The chair is built on a sturdy cantilever frame constructed from thick, diameter steel tube finished in mirror polished chrome plating with an anti-scratch clear coat, designed to deliver controlled flexible give under load for comfortable seated support. The backrest uses a 30% glass fiber reinforced polypropylene inner frame wrapped in breathable woven polyester mesh, shaped with a contoured integrated lumbar section to support the lower back without separate adjustable components. The seat features a thick high-density molded polyurethane foam core upholstered in wear-resistant woven polyester fabric, mounted on a bent plywood internal support board. Rigid fixed-height polypropylene T-shaped armrests sit at a height tailored to support forearms during extended meetings, while injection-molded polypropylene non-marring glides cap the ends of the sled base to protect hard flooring surfaces.
Designed to encourage a relaxed upright seated posture with a fixed backrest tilt, the chair supports a range of commercial and residential-adjacent use cases. It is well suited for fixed seating around boardroom tables, guest placement in reception and waiting areas, short-duration task seating in open workstations, and multi-seat layouts in training rooms. It is engineered for safe use on tile, wood, and vinyl hard flooring, and is designed to meet the demands of commercial office, government, and education fit-out projects.
Procurement teams should note the chair requires knock-down assembly of the backrest, seat, and frame with included hardware, with a typical assembly time per unit provided in product documentation. The non-stackable fixed frame design means storage planning should account for individual unit footprints, and shipping logistics are structured with each unit packed across two cartons. The product carries a 5-year structural warranty, and supports a recommended static user load aligned with standard commercial seating requirements. The unbranded model offers flexible specification flexibility for projects prioritizing consistent, functional seating without branded premium pricing.

Grey Mesh Back Cantilever Office Conference Visitor Chair with Fixed Sled Base Specifications
