PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

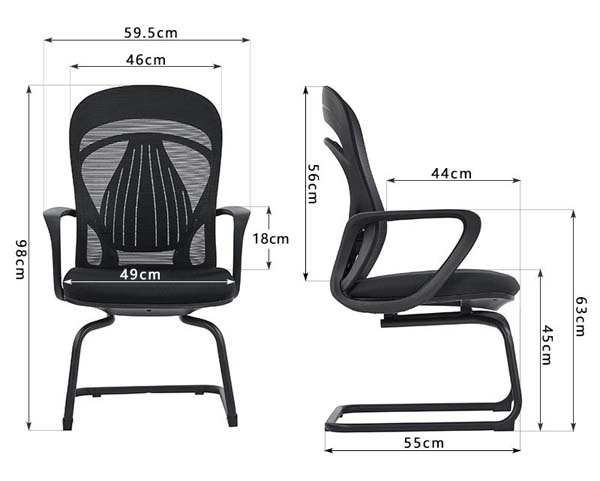

Overall dimensions (W × D × H)	595 × 550 × 980 mm
Seat width	490 mm
Seat depth	440 mm
Seat height from floor	450 mm
Backrest height	560 mm
Armrest height above seat	180 mm
Backrest inner width	460 mm
Cantilever frame tube diameter	25 mm
Sled base ground contact length	630 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net chair weight	7 kg
Recommended static user load	200 kg
Seat foam density	65 kg/m³
Seat foam thickness	30 mm
Back mesh abrasion resistance	50000 cycles
Seam stitch pitch	8 mm
Cantilever frame static load rating	300 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable woven polyester mesh with integrated patterned lumbar support ribs
Seat upholstery	Black fabric surface over 30mm high-density PU foam cushion
Seat inner support	12mm thick molded plywood seat pan under cushion
Frame construction	25mm diameter black powder-coated steel cantilever sled frame
Armrests	Closed-loop fixed black polypropylene armrests connecting seat and back frame
Floor protection	Anti-slip black polypropylene glides at frame base contact points
Back frame	Reinforced black polypropylene inner frame supporting mesh panel
Frame finish	Matte black powder coating on all steel frame surfaces
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base function	Fixed cantilever sled base provides gentle flexible deflection for seated comfort
Adjustment features	No swivel, no gas lift height adjustment, no recline, no casters for stationary placement
Back support	Integrated contoured lumbar support built into mesh back frame for upright seated posture
Armrest function	Fixed closed-loop armrests provide stable forearm support during meetings and reception use
Floor protection	Glides prevent hard floor scratches and resist sliding on smooth office flooring
Stacking capability	Non-stackable fixed frame design for dedicated individual meeting seating
Seat comfort	Contoured padded seat distributes weight for extended short-term meeting seating
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room seating	Stationary non-caster design for fixed meeting room table layouts, standard 450mm seat height aligns with 760 mm conference tables
Reception and waiting area use	Breathable mesh back provides comfort for waiting visitors, clean black finish matches professional office decor
Open office guest seating	Compact footprint fits adjacent to workstations for short-term visitor seating without requiring movement clearance for casters
Training room deployment	Fixed durable frame withstands frequent daily use in training and seminar environments, no adjustable components to reduce maintenance
Target user base	Designed for adult users up to 200kg for short-duration seated use of 4 hours per session
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Applicable standard recommendation 1	EN 16139:2013 Furniture: Strength, durability and safety for non-domestic seating, Level 2
Applicable standard recommendation 2	EN 1022:2018 Domestic furniture: Seating, determination of stability
Applicable standard recommendation 3	EN 1335:2020 Office furniture: Office work chair, dimensions

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Applicable standard recommendation 1	ANSI/BIFMA X2017General Purpose Office Chairs: Tests for strength, durability and stability
Applicable standard recommendation 2	ANSI/BIFMA X2011Standard for Formaldehyde and TVOC Emissions of Low-emitting Office Furniture

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Applicable standard recommendation 1	GB/T 3326Furniture: Tables, chairs and stools for office work, main dimension specification
Applicable standard recommendation 2	GB/T 10357.3Test of mechanical properties of furniture: Strength and durability of chairs and stools
Applicable standard recommendation 3	GB 18584Indoor decorating and refurbishing materials: Limit of harmful substances of wood furniture

Standardized tender description text

This product must meet the following technical requirements:
1. Applicable standard recommendation 1: GB/T 3326Furniture: Tables, chairs and stools for office work, main dimension specification;
2. Applicable standard recommendation 2: GB/T 10357.3Test of mechanical properties of furniture: Strength and durability of chairs and stools;
3. Applicable standard recommendation 3: GB 18584Indoor decorating and refurbishing materials: Limit of harmful substances of wood furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MESH-CANT-VISIT-098

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MESH-CANT-VISIT-098

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MESH-CANT-VISIT-098Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Black Mesh Back Cantilever Office Visitor Chair with Fixed Armrests, model MESH-CANT-VISIT-098, presents a streamlined, professional silhouette defined by its matte black powder-coated steel cantilever sled frame, creating a clean, uncluttered profile suited to formal and casual workspace settings alike. The chair features a tall, contoured black woven polyester mesh back supported by a reinforced black polypropylene inner frame, paired with a generously padded black fabric seat. Fixed closed-loop black polypropylene armrests connect the seat and back structure for a cohesive, unified look, while anti-slip black polypropylene glides sit flush at the frame’s base contact points to maintain a sleek, uninterrupted line from seat to floor.
Constructed for durable daily use, the cantilever frame is formed from 25mm diameter steel with a uniform matte black powder coating, built to deliver gentle flexible deflection that supports seated comfort without moving components. The seat uses a 30mm thick high-density PU foam cushion with a 65kg/m³ density, set atop a molded bent plywood support pan for stable weight distribution. The breathable mesh back integrates patterned contoured lumbar support ribs to encourage upright posture, while the fixed armrests offer consistent, stable forearm support. The anti-slip glides prevent scratches to hard flooring and resist unwanted sliding on smooth office surfaces. As a stationary, non-swivel, non-reclining design with no casters or height adjustment mechanisms, the chair requires minimal ongoing maintenance, though it does not offer stacking capability. It is engineered to support adult users for short-duration seated sessions.
This visitor chair is well suited to a range of commercial and select residential spaces. It works seamlessly in fixed-layout conference rooms, where its standard seat height aligns with standard conference tables for meeting use. It fits naturally in reception and waiting areas, where its breathable mesh back keeps guests comfortable and its uniform black finish complements professional office decor. It also serves as compact guest seating adjacent to open office workstations, as its stationary design eliminates the need for extra clearance to accommodate caster movement, and holds up to frequent daily use in training rooms and seminar spaces. It may also be placed in home office settings for guest use alongside executive desks.
When procuring this model, note that each unit ships in two cartons, with an assembly time of 40 minutes per set. The non-stackable frame means storage requires dedicated floor space per unit, and buyers should account for packaged weight and volume when planning freight and receiving logistics, particularly for large-batch orders. The fixed, zero-adjustment design is ideal for spaces prioritizing low-maintenance, consistent seating rather than flexible, reconfigurable setups.

Black Mesh Back Cantilever Office Visitor Chair with Fixed Armrests Specifications
