Name: Mesh Back Cantilever Office Conference Chair
Brand: YUXIANG
SKU: VNQ47K

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

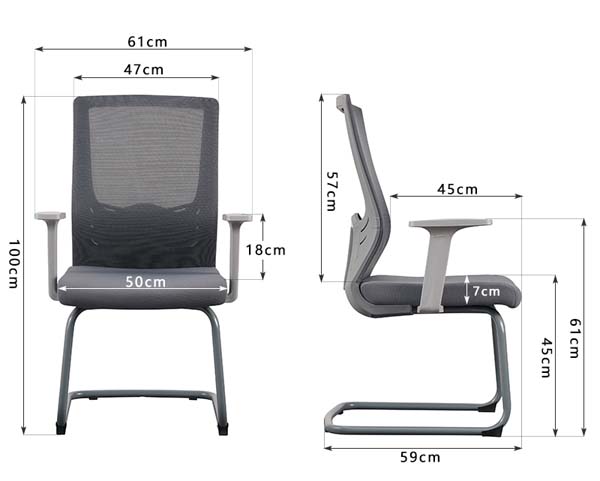

Overall dimensions (W × D × H)	610 × 590 × 1000 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	12 kg
Maximum static user weight	150 kg
Recommended maximum usage duration per session	4 hours
Backrest lumbar support depth	40 mm
Floor contact pad slip resistance rating	0.6 coefficient of friction
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg
Caster Rolling Durability Reference	Acceptance target 30000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest panel	Tensioned breathable polyester mesh over PP frame
Seat cushion core	40 kg/m3 density high-resilience molded polyurethane foam
Seat upholstery	Abrasion-resistant woven polyester fabric
Armrest structure	Injection-molded polypropylene with integrated support post
Cantilever frame	16mm diameter 1.5mm thick powder-coated carbon steel
Frame surface finish	Matte gray epoxy powder coating
Floor protection pads	Injection-molded non-marking TPE glides
Seam stitch specification	8 stitches per inch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Frame movement type	Fixed non-swivel non-tilting cantilever structure
Back support feature	Integrated fixed lumbar support curve
Armrest use case	Fixed-position armrests for forearm support during meetings
Floor protection function	Non-marking glides prevent scratch damage to hard floors
Ventilation feature	Breathable mesh back reduces heat buildup during extended use
Stacking capability	Non-stackable fixed frame design
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate conference room seating	Matching rows of chairs provide uniform professional seating for meeting participants
Reception and visitor waiting areas	Durable fixed-frame design supports frequent daily use by visiting guests
Open office workstation guest seating	Space-saving sled base fits neatly beside desks for temporary collaborator seating
Training room fixed seating configuration	Consistent dimensions enable neat aligned row arrangements for training sessions
Public institutional waiting areas	Easy to clean surfaces and robust frame suit high-traffic public waiting zones
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Recommended acceptance standard for office seating strength	EN 16139:2013
Recommended acceptance standard for office seating stability	EN 1728:2012

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.1 General-Purpose Office Chairs

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Recommended acceptance standard for office chair strength	GB/T 10357.3
Recommended acceptance standard for furniture safety	GB 28007

Standardized tender description text

This product must meet the following technical requirements:
1. Recommended acceptance standard for office chair strength: GB/T 10357.3;
2. Recommended acceptance standard for furniture safety: GB 28007;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-CB-M001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-CB-M001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-CB-M001Open Export Tool

Quick Actions

Post an RFQ

Product Description

The YUXIANG OC-CB-M001 Mesh Back Cantilever Office Conference Chair delivers a polished, purpose-built seating solution for high-use professional and public settings, defined by clean, streamlined lines and a consistent silhouette suited to uniform row installations. Its fixed cantilever sled base creates an open, uncluttered visual profile, with integrated fixed armrests positioned to frame the seat evenly, and a contoured backrest that balances structured support with a light, open aesthetic from its mesh construction. The design aligns neatly in straight rows, supporting cohesive, unobtrusive layouts across large spaces without visual clutter. Built for consistent long-term use, the chair’s cantilever frame is constructed from powder-coated carbon steel, finished in a matte gray epoxy coating for understated durability. The backrest pairs a rigid polypropylene inner frame with tensioned breathable polyester mesh, shaped with an integrated fixed lumbar curve for targeted support. The seat uses a high-resilience molded polyurethane foam core upholstered in abrasion-resistant woven polyester fabric, secured with uniform, tight stitching for extended wear. Armrests are formed from injection-molded polypropylene with integrated support posts, while the base is fitted with non-marking injection-molded TPE glides to protect hard floor surfaces. All surfaces are designed for easy cleaning, supporting regular maintenance in high-traffic zones. Functional design choices align directly with collaborative and waiting space use cases: the fixed non-swivel, non-tilting structure supports upright, focused positioning, with a 125-degree recline and three lock positions to accommodate relaxed postures during long discussions. The breathable mesh back reduces heat buildup during extended seated sessions, while the fixed armrests provide stable forearm support for meeting attendees. The chair is non-stackable, with robust construction that supports heavy static loads, and floor glides that prevent surface scuffs even with frequent repositioning. This model is well suited for corporate conference rooms, reception and visitor waiting areas, temporary guest seating beside open office workstations, aligned training room configurations, and public institutional waiting zones. It pairs effectively with 2.4m executive desks for formal meeting setups. For procurement planning, note that each chair ships in two cartons, with a 40-minute per-unit assembly time, and standardized dimensions that enable efficient, aligned installations across large spaces. The durable material specification supports frequent daily use, with no height adjustment feature to simplify operation and reduce maintenance points for shared, multi-user environments.

Mesh Back Cantilever Office Conference Chair Specifications
