PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

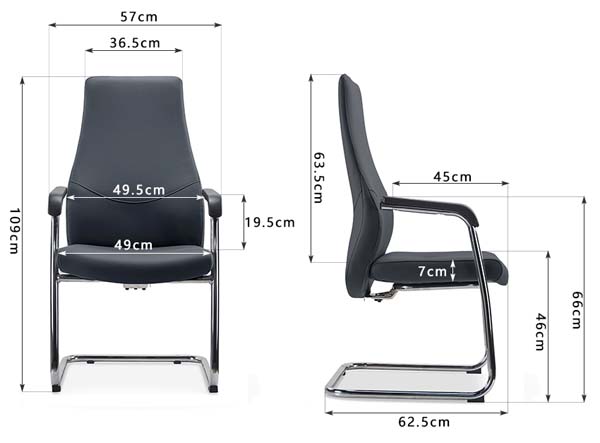

Overall dimensions (W × D × H)	570 × 625 × 1090 mm
Seat width	490 mm
Seat depth	450 mm
Seat height	460 mm
Backrest width	495 mm
Backrest height	635 mm
Seat cushion thickness	70 mm
Armrest height above floor	660 mm
Armrest height above seat	195 mm
Sled base depth	625 mm
Upper back width	365 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended maximum user weight	182 kg
Net weight per chair	13 kg
Foam density	40 kg/m³
Foam rebound rate	60 %
Cantilever frame static load capacity	250 kg
Seam stitch pitch	8 stitches per 30mm
Upholstery abrasion resistance	50000 double rubs
Warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	1.0mm thick dark grey PU faux leather
Seat core padding	High-density polyurethane foam
Backrest core padding	Molded high-resilience polyurethane foam
Support frame	1.8mm thick chrome-plated cold-rolled steel tube
Armrest structure	Chrome-plated steel frame with padded PU top
Floor glides	Injection-molded nylon anti-scratch pads
Internal support panel	12mm thick E1 grade fiberboard
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel
Five-star Base Material Thickness	Metal base wall 3.5 mm; diameter 700 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base movement	Fixed cantilever sled base with 8° controlled flex
Adjustment features	No height, tilt, rotation or depth adjustment
Floor protection	Four non-marking nylon glides
Stacking capability	Non-stackable fixed frame design
Arm support	Fixed padded armrests integrated with frame
Back support	Contoured mid-back design with built-in lumbar curve
Seat comfort	Fixed 3° seat tilt with waterfall front edge
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office reception areas	Fixed-position guest seating for waiting rooms, provides durable professional appearance for visitors
Conference and meeting rooms	Fixed upright seating for meeting tables, consistent with formal conference room layouts
Visitor and guest workspaces	Light-use seating for temporary guest workstations, no adjustment required for short-term use
Hotel and public service areas	Commercial-grade seating suitable for hotel lobbies, bank service counters and public consultation areas
Training room seating	Uniform fixed seating for training sessions, sled base reduces movement and floor damage in high-traffic rooms
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture seating safety requirements	EN 1335:2018
Upholstered furniture flame resistance	EN 1021:2014
Furniture surface scratch resistance	EN 15187:2006

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge and visitor seating durability	ANSI/BIFMA X2015
Office seating stability testing	ANSI/BIFMA X2017

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair strength and durability	GB/T 10357.3
Formaldehyde emission limits	GB 18584
Metal furniture surface coating	GB/T 3325

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair strength and durability: GB/T 10357.3;
2. Formaldehyde emission limits: GB 18584;
3. Metal furniture surface coating: GB/T 3325;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · VC-SLED-570DG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · VC-SLED-570DG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · VC-SLED-570DGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Dark Grey Faux Leather Cantilever Sled Base Visitor Office Chair (model VC-SLED-570DG) is an unbranded, purpose-built fixed-position seating solution designed for consistent, professional use across commercial and select residential settings. Visually, it presents a clean, streamlined silhouette with a contoured mid-back profile, integrated padded armrests, and a sleek chrome-finished cantilever sled base that creates an open, uncluttered aesthetic suited to formal and semi-formal interiors. The dark grey faux leather upholstery delivers a neutral, polished look that coordinates with a wide range of existing furniture palettes. Its construction prioritizes durable, long-wearing performance: the frame is formed from thick chrome-plated cold-rolled steel tube, paired with bent plywood internal support structures for the seat and back, E1 grade fiberboard internal paneling, and injection-molded nylon anti-scratch floor glides. The seat and back are upholstered in 1.0mm dark grey PU faux leather, with the seat cored in high-density polyurethane foam and the backrest shaped from molded high-resilience polyurethane foam. Armrests integrate directly with the steel frame, topped with padded PU for comfortable arm support. Functional design elements support reliable, low-maintenance use. The fixed cantilever base features controlled flex for gentle, responsive give during use, with no height, tilt, rotation, or depth adjustments to simplify operation for temporary users. The seat incorporates a fixed gentle tilt and waterfall front edge to reduce pressure on the backs of legs, while the backrest includes a built-in lumbar curve for consistent postural support. Four non-marking nylon glides protect floor surfaces from scuffs and scratches, and the chair holds a fixed, non-stackable structure that limits unwanted movement in high-traffic spaces. This chair fits a broad range of settings: it works effectively in office reception and waiting areas, formal conference and meeting rooms aligned with 2.4m executive desk setups, temporary visitor workstations, hotel lobbies, bank service counters, public consultation zones, and training rooms where stable, uniform seating reduces floor damage and disruptive movement. For procurement teams, key considerations include the 40-minute per-unit assembly time, delivery across two cartons per set, and fixed non-adjustable design that is purpose-built for guest and short-term use rather than extended full-time workstation tasks. Its commercial-grade abrasion resistance and robust static load capacity support consistent use in high-foot-traffic public and corporate environments.
