PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

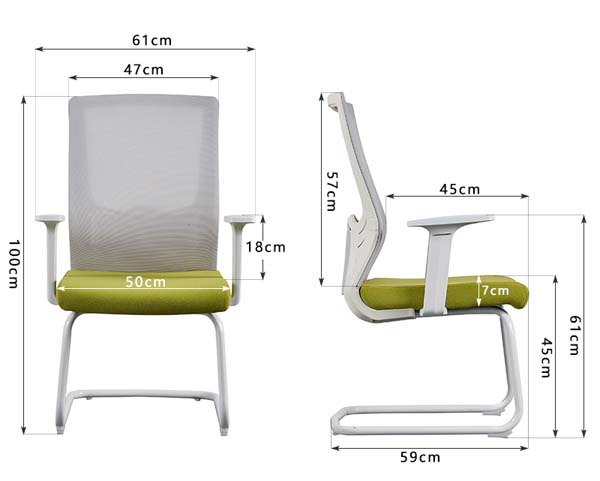

Overall dimensions (W × D × H)	610 × 590 × 1000 mm
Seat width	500 mm
Seat depth	450 mm
Seat height from floor	450 mm
Seat cushion thickness	70 mm
Backrest height	570 mm
Backrest width	470 mm
Armrest height above seat	180 mm
Total armrest height from floor	610 mm
Sled base longitudinal depth	590 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Chair net weight	12 kg
Seat impact durability cycles	100000 cycles
Seat foam density	40D
Seam stitch pitch	30 mm
Standard warranty period	5 years
Available upholstery color options	8
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cantilever frame	2.5mm thick light grey powder-coated steel tubing
Backrest support	Integrated light grey reinforced polymer frame
Backrest upholstery	Breathable high-tensile light grey woven mesh
Seat core	12mm thick molded plywood support panel
Seat padding	40D high-resilience molded polyurethane foam
Seat upholstery	Green woven polyester commercial fabric, 300g/sqm weight
Armrests	Fixed T-shaped light grey reinforced polymer with smooth flat top pad
Sled feet	Non-marking black polyethylene glide caps
Underseat bracing	Double cross-welded steel support bars
Frame surface finish	Anti-corrosion epoxy powder coating
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base design	Fixed cantilever sled base with no casters or swivel mechanism
Height adjustment	No seat height adjustment, fixed 450mm seat height
Tilt function	Fixed static backrest angle with no tilt lock or tension adjustment
Armrest function	Fixed integrated armrests providing stable forearm support at 610mm floor height
Floor protection	Non-slip plastic glide feet that prevent floor scratching and reduce sliding noise
Back support	Ergonomically curved mesh back with lumbar contour for extended meeting comfort
Seat design	Waterfall front seat edge that reduces leg pressure during long seated periods
Stacking capability	Non-stacking fixed structure suitable for permanent meeting room installation
Backrest static recline angle	8 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference rooms	Fixed seating for formal meeting tables with standard 750mm height
Visitor reception areas	Guest seating in corporate reception and waiting zones
Open office staff meeting points	Durable static seating for impromptu team discussion spaces
Training rooms	Seating for corporate training and workshop sessions
Government and institutional offices	Formal standardized seating for public service meeting spaces
Small business meeting spaces	Cost-effective durable seating for startup and SME conference rooms
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-2:2018	Applies to safety, strength and durability requirements for office work seating
EN 1022:2018	Applies to stability testing for non-domestic seating products
EN 1335-3:2018	Applies to test methods for office seating mechanical performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2021	Applies to public and lounge visitor seating performance requirements
Recommended static user load	125 kg
Backrest static load capacity	68 kg

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to dimensional tolerances for wood and metal office seating
GB/T 10357.3-2013	Applies to mechanical strength and durability testing for office chairs
GB 18584-2001	Applies to formaldehyde emission limits for furniture upholstery components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to dimensional tolerances for wood and metal office seating;
2. GB/T 10357.3-2013: Applies to mechanical strength and durability testing for office chairs;
3. GB 18584-2001: Applies to formaldehyde emission limits for furniture upholstery components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CM-01-LG-GR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CM-01-LG-GR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CM-01-LG-GROpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Cantilever Office Meeting Chair with Mesh Back and Fabric Seat, model CM-01-LG-GR, features a streamlined, understated silhouette defined by its continuous cantilever sled frame, finished in a consistent light grey tone that pairs with a muted green woven fabric seat and matching light grey mesh back for a polished, professional aesthetic. Fixed T-shaped integrated armrests align seamlessly with the frame structure, creating a cohesive visual profile suited to coordinated formal seating layouts. Built for sustained commercial use, the chair’s core frame is constructed from thick light grey powder-coated steel tubing, reinforced by double cross-welded steel support bars beneath the seat to enhance structural stability. The backrest uses an integrated light grey reinforced polymer support structure wrapped in high-tensile breathable woven mesh, formed with an ergonomic curve and built-in lumbar contour. The seat rests on a molded plywood support panel, topped with high-resilience molded polyurethane foam and upholstered in durable commercial-grade woven polyester fabric, finished with a waterfall front edge. Fixed T-shaped reinforced polymer armrests provide smooth, flat support surfaces, while black non-marking polyethylene glide caps cap the sled base to protect flooring and reduce movement noise. No casters, swivel, tilt, or height adjustment mechanisms are included, delivering a rigid, static seating experience, with armrests positioned to support forearms at a consistent height relative to the floor. This chair is engineered for extended seated comfort during meetings and collaborative sessions, with the breathable mesh back promoting air circulation, the padded seat reducing pressure points, and the waterfall seat edge minimizing leg strain over long periods. The non-slip glide feet prevent accidental shifting and eliminate floor scratches or sliding noise during use. It is well suited for a wide range of commercial and institutional spaces, including formal conference rooms paired with standard height meeting tables, corporate visitor reception and waiting areas, open office impromptu meeting zones, corporate training and workshop rooms, government and public service office meeting spaces, and cost-effective small business and startup conference areas. Procurement teams can plan around a standard five-year warranty, eight available upholstery color options to align with existing interior schemes, and packaging that splits each chair across two cartons for easier transport. On-site assembly takes a set amount of time per unit, with clear loading metrics for full container orders to support large-scale furnishing projects. The fixed, wheel-free design makes it a consistent choice for spaces requiring uniform, stationary seating without frequent repositioning needs.

Cantilever Office Meeting Chair with Mesh Back and Fabric Seat Specifications
