PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 2235 × 1346 mm
Headboard height	1346 mm
Leg height	130 mm
Recommended mattress thickness	406 mm
Under-bed storage compartment depth	300 mm
Slat spacing	76 mm
Wing return projection from headboard	120 mm
Platform sleeping surface height from floor	350 mm
Pull handle length	150 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	454 kg
Hydraulic lift mechanism cycle rating	100000 lifts
Net product weight	66 kg
Under-bed storage volume	0.58 m³
Supported user count	2 adults
Anti-slip mattress retention force	15 kg
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Dark taupe woven fabric/leatherette
Headboard padding	30mm high-density polyurethane foam
Bed frame structure	1.5mm thick matte black powder-coated steel
Support slats	12mm thick solid birch plywood slats
Center support legs	25mm diameter steel legs
Lift hardware	Chrome-plated steel hydraulic pistons
Noise reduction strips	3mm thick EVA foam strips
Storage compartment liner	Non-woven dust-proof fabric
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Lift-up storage access	Front fabric-pull hydraulic lift raises mattress platform 60 degrees
Mattress support	Wood slat platform eliminates need for box spring
Headboard design	Wingback grid-tufted padded headboard provides back support for seated reading
Assembly requirement	Knock-down flat-pack assembly with included hex hardware
Noise dampening	EVA isolation strips on slat contact points prevent metal-on-wood squeaks
Anti-slip mattress retainer	100mm tall metal lip at head end holds mattress in place during platform lift
Floor protection	Plastic glides on leg bottoms prevent scratches on hard flooring
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedroom	Suitable for modern/industrial style primary bedrooms as primary sleeping furniture
Guest bedroom suite	Ideal for furnished guest rooms paired with matching nightstands
Urban apartment living	Low-profile design and built-in storage suit space-constrained urban apartments
Boutique hotel guest rooms	Durable metal frame and upholstered headboard fit upscale boutique hotel furnishing
Mountain/modern chalet interiors	Dark taupe and black finish complements concrete and alpine-view interior design

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Furniture - Beds and mattresses - Safety requirements and test methods
EN 12521:2015	Furniture - Strength, durability and safety requirements for domestic beds

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for wood slat components
GB/T 24821-2009	General technical requirements for metal furniture, applicable for steel frame
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for wood slat components;
2. GB/T 24821-2009: General technical requirements for metal furniture, applicable for steel frame;
3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-WG-LS-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-WG-LS-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-WG-LS-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

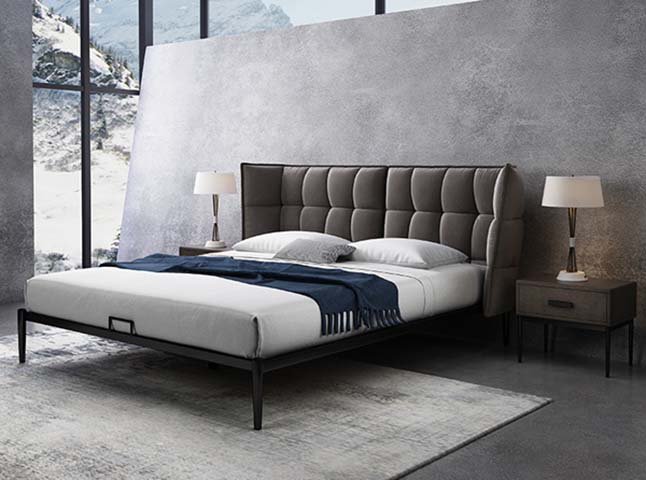

The Dark Taupe Grid-Tufted Wingback Upholstered Lift-Up Storage Platform Bed, model UPB-WG-LS-1800 from an unbranded line, balances refined modern and industrial styling with high-function design for space-efficient sleeping setups. Its defining visual feature is the tall wingback headboard, finished in dark taupe woven fabric or leatherette with precise grid tufting, with side wing returns projecting outward from the headboard face to frame the sleeping area. The low-profile platform sits at a accessible sleeping surface height, supported by slender matte black legs that complement the dark, neutral finish palette for a streamlined, cohesive look. Built for long-term daily use, the bed’s core structure relies on a 1.5mm thick matte black powder-coated steel frame fitted with 25mm diameter steel center support legs, capped with plastic glides to prevent hard floor scratches. The sleeping platform uses solid birch plywood slats lined with 3mm thick EVA foam strips at contact points to eliminate metal-on-wood squeaks, while chrome-plated steel hydraulic pistons power the lift mechanism, rated for 100000 lift cycles. The padded headboard uses 30mm high-density polyurethane foam for soft, supportive cushioning, and the under-bed storage compartment is lined with non-woven dust-proof fabric to protect stored items. A fabric pull handle integrated into the foot of the platform operates the lift, which raises the mattress platform 60 degrees to reveal 0.58 cubic meters of enclosed storage space 300mm deep. The wood slat support removes the need for a separate box spring, a 100mm tall metal lip at the head end delivers 15kg of anti-slip retention force to hold mattresses in place during lift operation, and the unit supports two adult users with a total static weight capacity of 454kg. This bed fits seamlessly into residential modern or industrial style master bedrooms, furnished guest suites paired with matching nightstands, space-constrained urban apartments, upscale boutique hotel guest rooms, and mountain chalet interiors where the dark taupe and black finish complements concrete and alpine-facing design schemes. Procurement teams and residential buyers should note the unit ships as flat-pack knock-down construction with included hex hardware, requiring 40 minutes of assembly time per set, and is compatible with mattresses up to 406mm thick. Total packaged weight per set is 130kg, with a packaged volume of 0.9 cubic meters, so delivery and installation access should be confirmed prior to purchase.

Dark Taupe Grid-Tufted Wingback Upholstered Lift-Up Storage Platform Bed Specifications
