Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Seat Cushion Thickness | 90 mm | |
|---|---|---|
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended users per set | 3 persons | |
|---|---|---|
| Table static load capacity | 50 kg | |
| Chair net weight per unit | 12 kg | |
| Seat foam density | 35 kg/m3 | |
| Back foam density | 30 kg/m3 | |
| Fabric abrasion acceptance target | 50,000 Martindale cycles | |
| Swivel rotation | 360 degrees | |
| Warranty target | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.

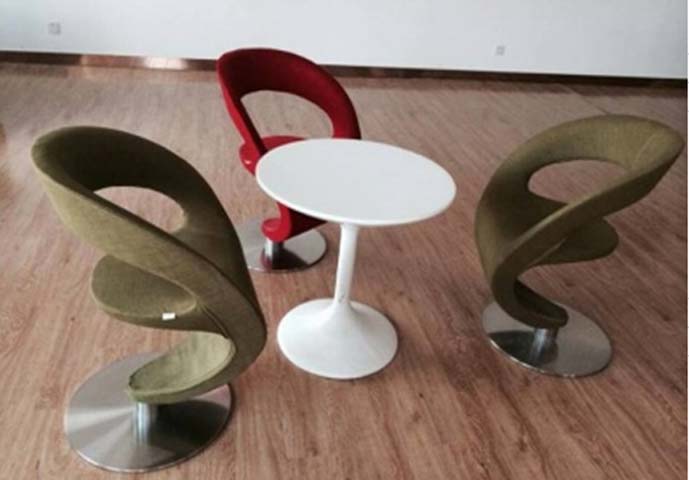

| Chair outer shell | Molded plywood or bent composite shell with continuous loop profile | |
|---|---|---|
| Chair soft covering | Woven fabric or felt upholstery in olive green and burgundy red | |
| Seat and back padding | 20 mm foam core under fabric upholstery | |
| Chair floor base | Polished stainless steel circular disc base | |
| Swivel column | Brushed or polished stainless steel tubular spindle with rotating bearing | |
| Table top and base | Painted white wood-composite top with matching painted steel or aluminum pedestal |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating rotation | Each chair rotates 360 degrees on a concealed center bearing while the disc base remains stationary | |
|---|---|---|
| Pull-up bistro seating | Chairs face the 600 mm table and provide three separate occasional seating positions | |
| Open-loop back support | The continuous curved frame serves as backrest and visual arm-like enclosure without separate adjustable arms | |
| Floor protection | Flat metal disc bases distribute load without casters and should include felt or polymer glides for hard-floor protection |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Lounge and break-out areas | Suits staff pantries, hotel corners, and reception waiting zones where compact three-person conversation seating is required. | |
|---|---|---|
| Cafe and showroom settings | The sculptural swivel chairs and small round table support short meetings, drinks, or guest browsing in modern interiors. |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
