PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	680 x 650 x 730 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user weight capacity	130 kg
Net weight	12 kg
Seating capacity	1 person
Stacking capacity	0 chairs
Daily-use classification	8 hours
Seat cushion foam density	35 kg/m3
Back foam density	28 kg/m3
Steel frame static verification load	500 kg
Fabric abrasion acceptance target	50000 Martindale cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer tub shell	Upholstered wood or formed composite panel with continuous back and arm panels
Seat cushion	80 mm padded foam cushion upholstered in the same visible cover material
Cover material	Smooth woven fabric or coated fabric surface in red or olive colourways
Inner support deck	Rigid seat board concealed under the cushion and attached to the steel frame
Frame	12 mm chrome-plated steel wire formed into two side sled runners with cross supports
Floor contacts	Small protective glides at the bottom ends of the steel runners

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Back and arm support	Continuous wraparound tub shell provides fixed low-back and side-arm support with no recline adjustment
Seating movement	Static non-swivel chair on a rigid chrome sled base
Floor protection	Four runner-end glides carry the frame and allow limited repositioning without casters
Cushion serviceability	Separate loose seat cushion can be reupholstered or replaced if retained by the same fixing method

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight	15 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Lounge and reception settings	Use in waiting areas, breakout zones and hotel lobbies where compact single seating and colour accents are needed
Visitor meeting areas	Place two chairs around a small side table for short conversations or guest waiting

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LUT-SLED-680-730

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LUT-SLED-680-730

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LUT-SLED-680-730Open Export Tool

Quick Actions

Post an RFQ

Product Description

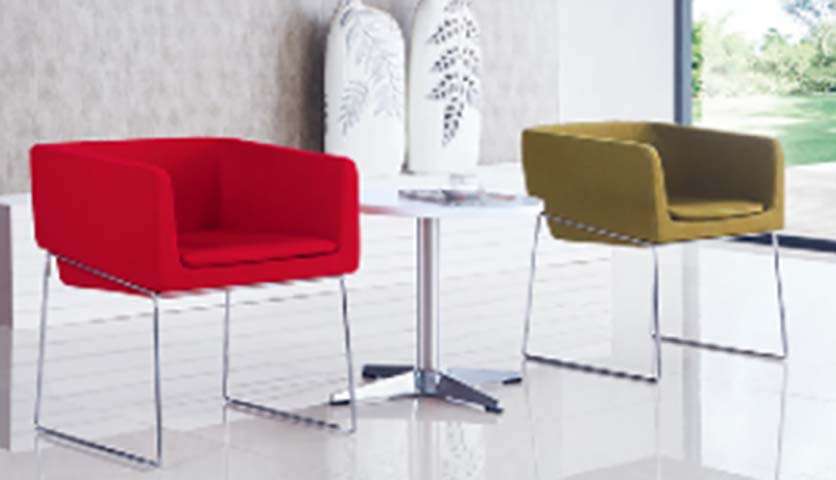

The Upholstered Tub Lounge Armchair with Chrome Sled Base is a compact single-seat lounge chair defined by a wraparound tub shell and a polished metal sled frame. Its continuous back and arm panels create an enclosed, low-back silhouette, while the visible upholstery gives the chair a soft, tailored appearance. Red or olive cover options provide a clear colour accent, balanced by the bright linear look of the chrome base. The chair is supplied as an unbranded model, LUT-SLED-730and is intended for one occupant. The outer tub shell is an upholstered wood or formed composite panel that integrates the backrest and armrests into one continuous form. The seat uses a rigid support board concealed beneath the cushion and fixed to the steel frame. The frame is made from chrome-plated steel wire formed into two side sled runners connected by cross supports, producing a stable, non-swivel base. Small protective glides fitted to the runner ends help protect floor surfaces and allow limited repositioning without casters. Upholstery is offered in smooth woven fabric or coated fabric, including a faux-leather-style surface. The separate loose seat cushion is upholstered in the same visible cover material and can be replaced or reupholstered if retained using the same fixing method. Foam support is differentiated between the seat and back, with a padded seat cushion and a shaped lumbar support zone within the fixed low back. The continuous shell provides side-arm and back support without recline adjustment, giving the chair a straightforward static seating function. Overall dimensions are 680 by 650 by 730 millimetres, with 540 millimetres of clear width between the armrests. The finished seat cushion is 90 millimetres thick, the backrest padding is 70 millimetres thick, and the lumbar support zone is 240 millimetres high. The chair has a net weight of 12 kilograms and a suggested user weight capacity of 130 kilograms. It is classified for daily use of 8 hours and does not stack. This model is well suited to commercial waiting and relaxation settings where compact individual seating is required, including reception areas, breakout zones, hotel lobbies and visitor meeting spaces. Pairing two chairs with a small side table creates a practical arrangement for short conversations or guest waiting. Its residential use is equally appropriate for a study corner, bedroom accent position or compact living area, provided the fixed proportions and low-back form match the intended comfort requirement. Procurement planning should account for delivery in two cartons per set and an assembly time of 40 minutes per set. The reference packaged gross weight is 23 kilograms per set, with carton dimensions of 850 by 420 by 720 millimetres and a carton volume of 0.26 cubic metre per set. Buyers should select the cover type and colour before order confirmation, review floor compatibility with the glides, and note that the chair is static, non-reclining and non-stacking.
