Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Seat Cushion Thickness | 90 mm | |
|---|---|---|
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Set total net weight | 34 kg | |
|---|---|---|
| Bar table static top load | 40 kg | |
| Single stool static load | 120 kg | |
| Recommended user weight per stool | 110 kg | |
| Table base stability moment rating | 180 N lateral force at top edge | |
| Seat foam density | 35 kg/m3 | |
| Seat foam rebound | 40% | |
| Upholstery abrasion acceptance | 30,000 Martindale cycles | |
| Seam stitch pitch | 8 stitches per 100 mm | |
| Recommended person capacity | 2 persons |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Table top | White 25 mm engineered board panel with smooth finish and sealed edge | |
|---|---|---|
| Table pedestal | 60 mm chrome-plated steel column with polished reflective surface | |
| Table base | 450 mm chrome-plated circular steel disc with floor-contact edge | |
| Sleet seat shell | Padded cushion over a rigid board or molded seat carrier | |
| Stool cushion | 70 mm medium-density polyurethane foam covered in red woven fabric | |
| Stool frame | Chrome-plated 16 mm steel tube bent into a four-leg sled frame with integrated foot rails |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

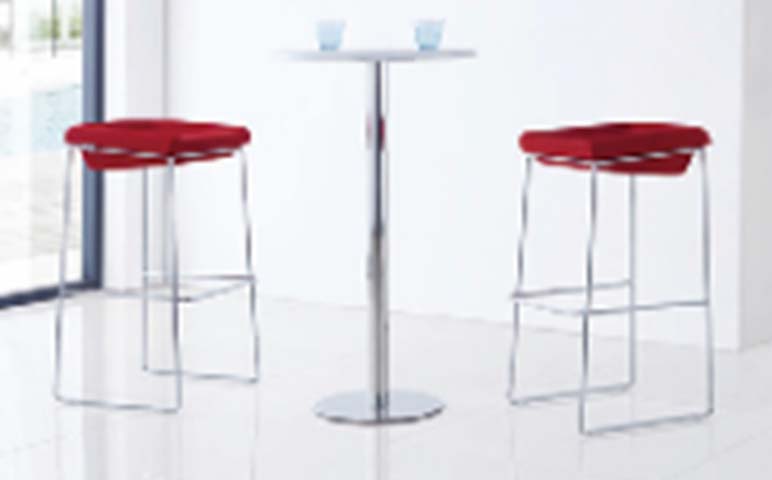

| Seating arrangement | Two independent backless stools slide under or away from the round pedestal table, supporting face-to-face bar-height seating. | |
|---|---|---|
| Foot support | Each stool uses two continuous horizontal chrome rails at 300 mm high to support the feet and stiffen the frame. | |
| Floor-friendly movement | Sled bases allow short repositioning on hard floors without separate casters and should use adhesive felt pads for protection. | |
| Pedestal leg room | The single central column and circular base leave open perimeter space rather than blocking knees with four corner legs. |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Table carton dimensions | 670 x 670 x 130 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Breakout and hospitality bar area | Suited to office pantries, cafe counters, hotel lounges and reception refreshment zones where two users need compact standing-height seating. | |
|---|---|---|
| Modern open interior | Recommended for glossy tile, concrete or hard-floor settings with the chrome frame protected by felt glides. |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
