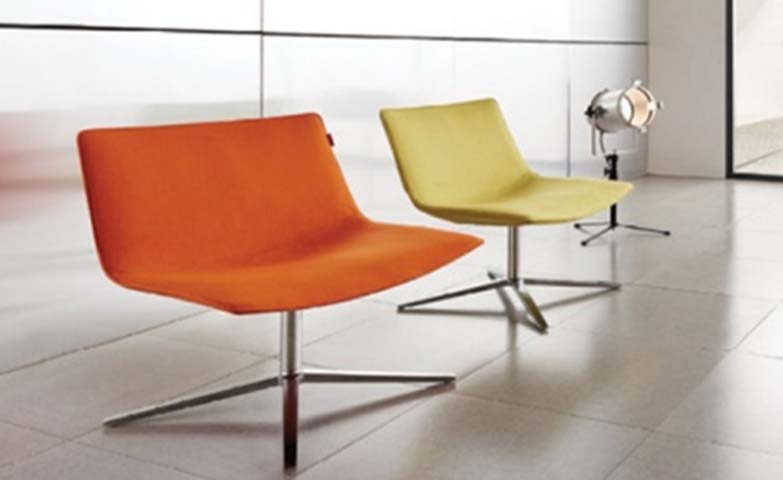

Product supplierUpholstered Swivel Lounge Chair with Four-Spoke Metal Base, Fabric-upholstered molded shell with continuous seat-to-back cover
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 740 x 720 x 790 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 12 kg | |
|---|---|---|
| Recommended user weight | 120 kg | |
| Seat static load verification target | 200 kg | |
| Backrest static load verification target | 90 kg | |
| Base stability moment target | 45 N at front edge | |
| Swivel mechanism service target | 60,000 cycles | |
| Fabric abrasion acceptance target | 50,000 Martindale cycles | |
| Fabric colorways shown | 2 colors | |
| Seating capacity | 1 person | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer seat and back shell | Fabric-upholstered molded shell with continuous seat-to-back cover | |
|---|---|---|
| Seat cushioning | High-resilience polyurethane foam, 80 mm thick and 38 kg/m3 density target | |
| Back cushioning | Molded polyurethane foam, 55 mm thick and 32 kg/m3 density target | |
| Upholstery textile | Woven polyester fabric, 1.2 mm face thickness and 50,000-cycle abrasion target | |
| Central support | Polished chrome or brushed stainless steel column, 50 mm diameter | |
| Floor base | Polished metal four-spoke cantilever frame with 25 x 25 mm tube section |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Rotation function | 360-degree swivel around the central column, with no visible height adjustment | |
|---|---|---|
| Recline function | Fixed 108-degree lounge angle with synchronized molded seat and back shell | |
| Base support | Four-point cantilever base distributes load directly to the floor without casters | |
| Grouping function | Armless compact shell allows side-by-side placement in reception and waiting zones |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 780 x 750 x 500 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Reception and waiting areas | Use in corporate lobbies, hotel lounges and customer waiting zones where compact armless seating and 360-degree access are useful | |
|---|---|---|
| Collaboration and breakout spaces | Place singly or in groups around low tables for short meetings, refreshment areas and informal touchdown seating |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139 | Non-domestic seating strength, durability and safety standard appropriate for contract lounge chairs | |
|---|---|---|
| EN 1022 | Chair stability standard applicable to the fixed four-spoke base and armless seating geometry | |
| EN 14465 | Upholstery fabric classification and abrasion performance reference for the visible woven cover |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4 | Applicable standards and test results require confirmation | |
|---|---|---|
| ANSI/BIFMA X5.1 Test 7 | Static and cyclic base verification reference adapted to four-point lounge chair construction | |
| ANSI/BIFMA e3 level | Sustainability certification framework for furniture materials and low-emission procurement |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.2 | Test method for furniture mechanical properties applicable to chair back strength verification | |
|---|---|---|
| GB/T 10357.3 | Test method for chair and stool strength and durability, suitable for static and cyclic seating checks | |
| GB 18584 | Furniture indoor-use material safety standard, relevant to formaldehyde and hazardous-content limits |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.2: Test method for furniture mechanical properties applicable to chair back strength verification; 2. GB/T 10357.3: Test method for chair and stool strength and durability, suitable for static and cyclic seating checks; 3. GB 18584: Furniture indoor-use material safety standard, relevant to formaldehyde and hazardous-content limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
